Technical Specifications and Display Features

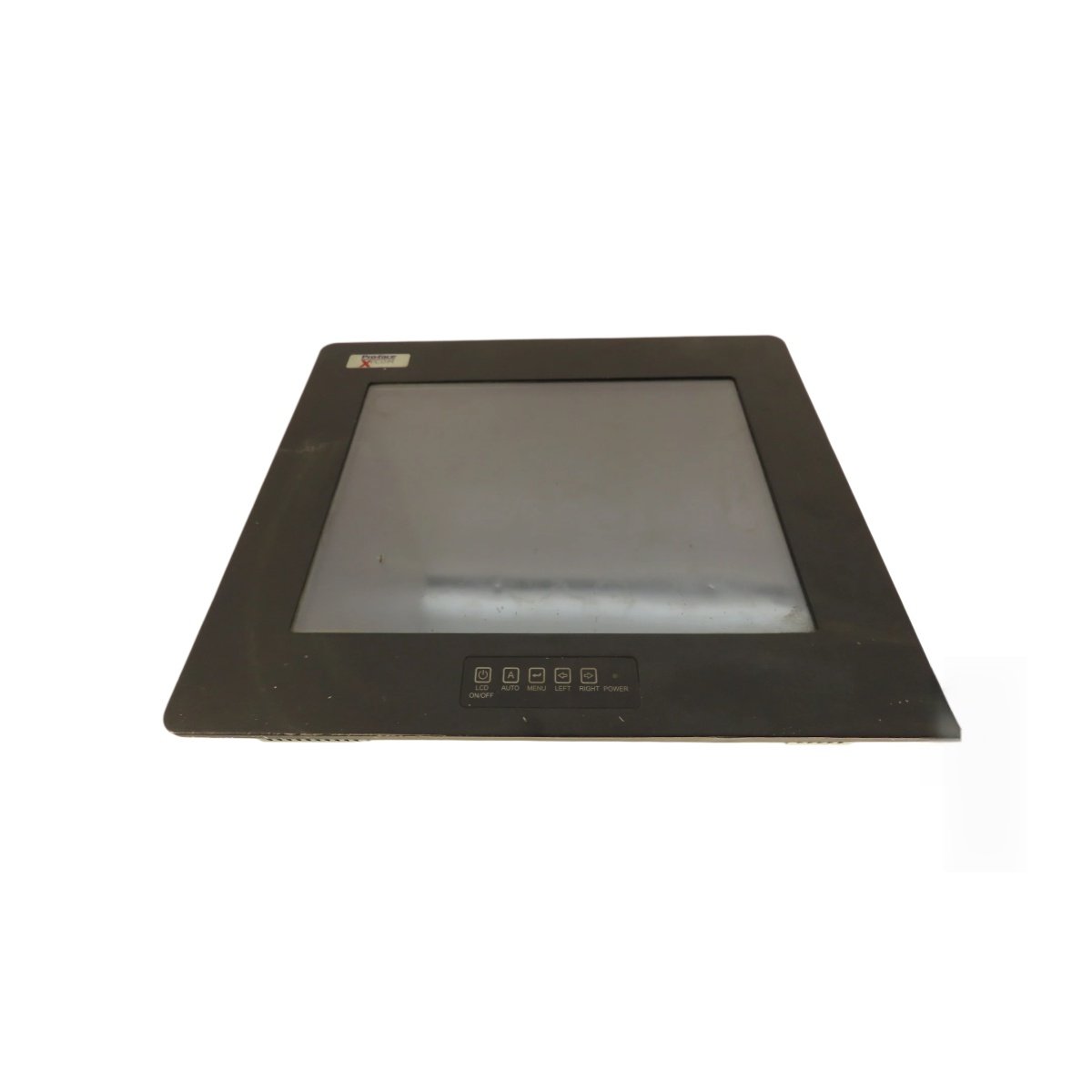

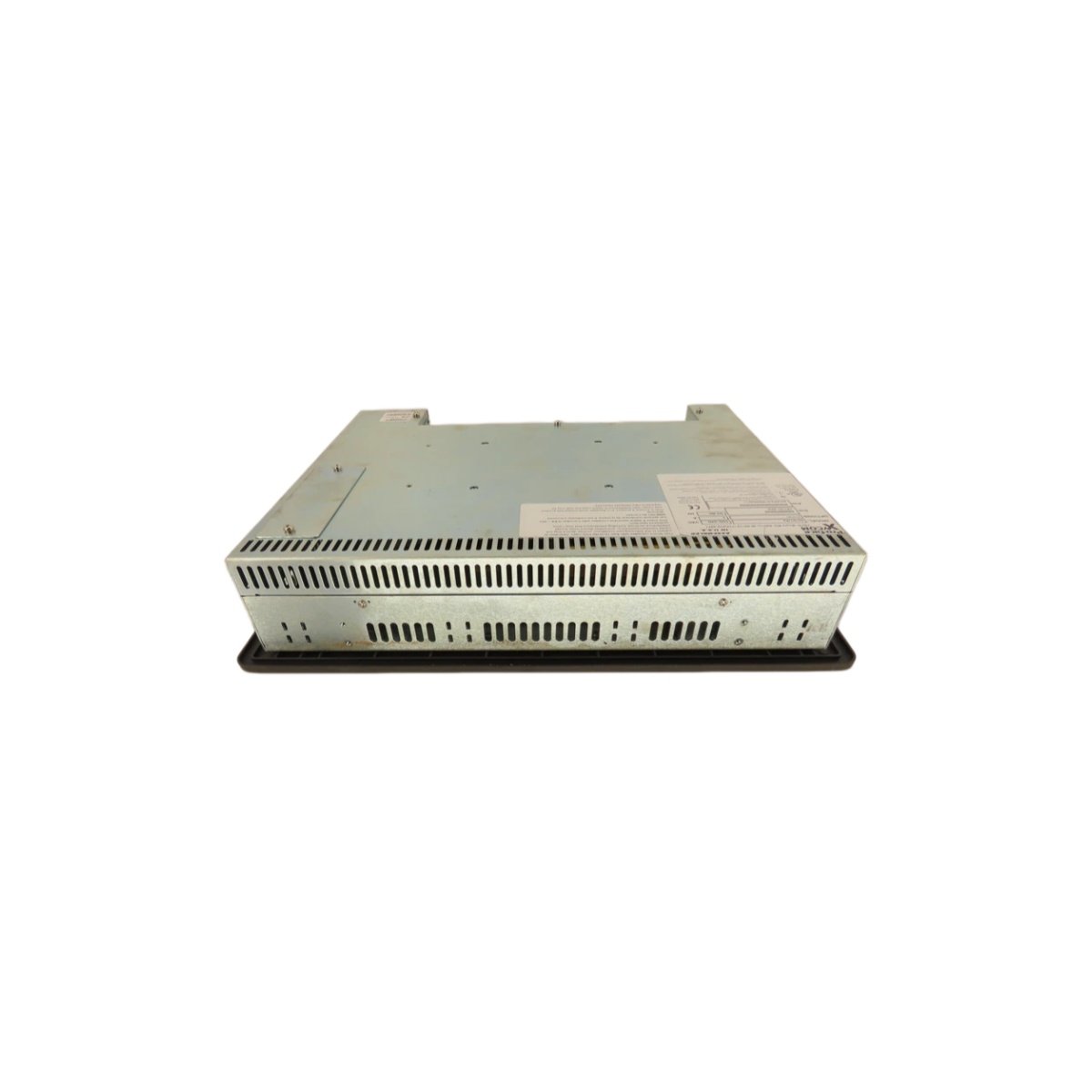

The Xycom PROFACE 5015T flat panel touch monitor delivers high-performance visualization for demanding industrial environments. This 15-inch TFT LCD display supports a native resolution of 1024 x 768 (XGA) and reproduces up to 265,000 colors for crisp, detailed imagery . The analog resistive touchscreen provides reliable operator input via either RS-232 or USB interfaces, ensuring compatibility with various host systems . Its shallow mounting depth of only 2.85 inches (73 mm) facilitates installation in space-constrained control cabinets . The monitor weighs approximately 15 lbs (7 kg) .
| Parameter | Specification |
|---|---|
| Manufacturer | Xycom / Pro-face |
| Model Number | 5015T |
| Display Size | 15-inch TFT LCD |
| Resolution | 1024 x 768 (XGA) |
| Display Colors | 265,000 |
| Brightness | 300 – 350 Nit (typical) |
| Contrast Ratio | 400:1 (typical) |
| Viewing Angles (H/V) | 150° / 125° (typical) |
| Backlight Life | 50,000 hours |
| Touch Technology | 5-wire analog resistive |
| Touch Interfaces | RS-232 and USB |
| Video Inputs | DVI-D, VGA (15-pin analog) |
| Mounting Depth | 2.85 inches (73 mm) |
| Weight | 15 lbs (7 kg) |
| Front Panel Protection | NEMA 4/4X/12, IP65 (when properly mounted) |
| Operating Temperature | -20°C to 60°C |
| Power Supply (Standard) | 100-240V AC, 0.8-0.4A, 50/60 Hz |
| Power Supply (Optional) | 24V DC (18-30V DC range) |
| Hazardous Location | UL Class I & II, Division 2 |
Functional Capabilities and Connectivity
The 5015T monitor actively displays process data, machine status, and control interfaces for industrial HMI applications. Its sophisticated scaling engine automatically optimizes full-screen images for all standard VESA modes up to XGA @ 75Hz . The monitor includes front-panel OSD controls with a rear lock-out switch for convenient setup and adjustment . It accepts both analog (VGA) and digital (DVI-D) video inputs, providing flexible connectivity with various host computers and controllers . The five-wire analog resistive touch screen delivers accurate and responsive operator input, supported by touch drivers for major operating systems.
Application Scenarios and Rugged Design
This industrial touch monitor suits harsh environments such as factory floors, outdoor kiosks, and process control rooms. Its NEMA 4/4X/12 front panel resists dust, water, and corrosive substances, making it ideal for food processing, chemical plants, and washdown areas . Furthermore, the UL-listed hazardous location approval allows installation in Class I and II, Division 2 areas where flammable gases or dusts may be present . The rugged housing and wide operating temperature range ensure reliable operation in demanding industrial conditions. The Xycom 5015T also provides mounting provisions for attaching Xycom’s 1300-CLIENT and 1506 node computers directly to the back of the monitor . For system integrators, this monitor offers a robust and versatile HMI solution for both new installations and legacy system upgrades.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
