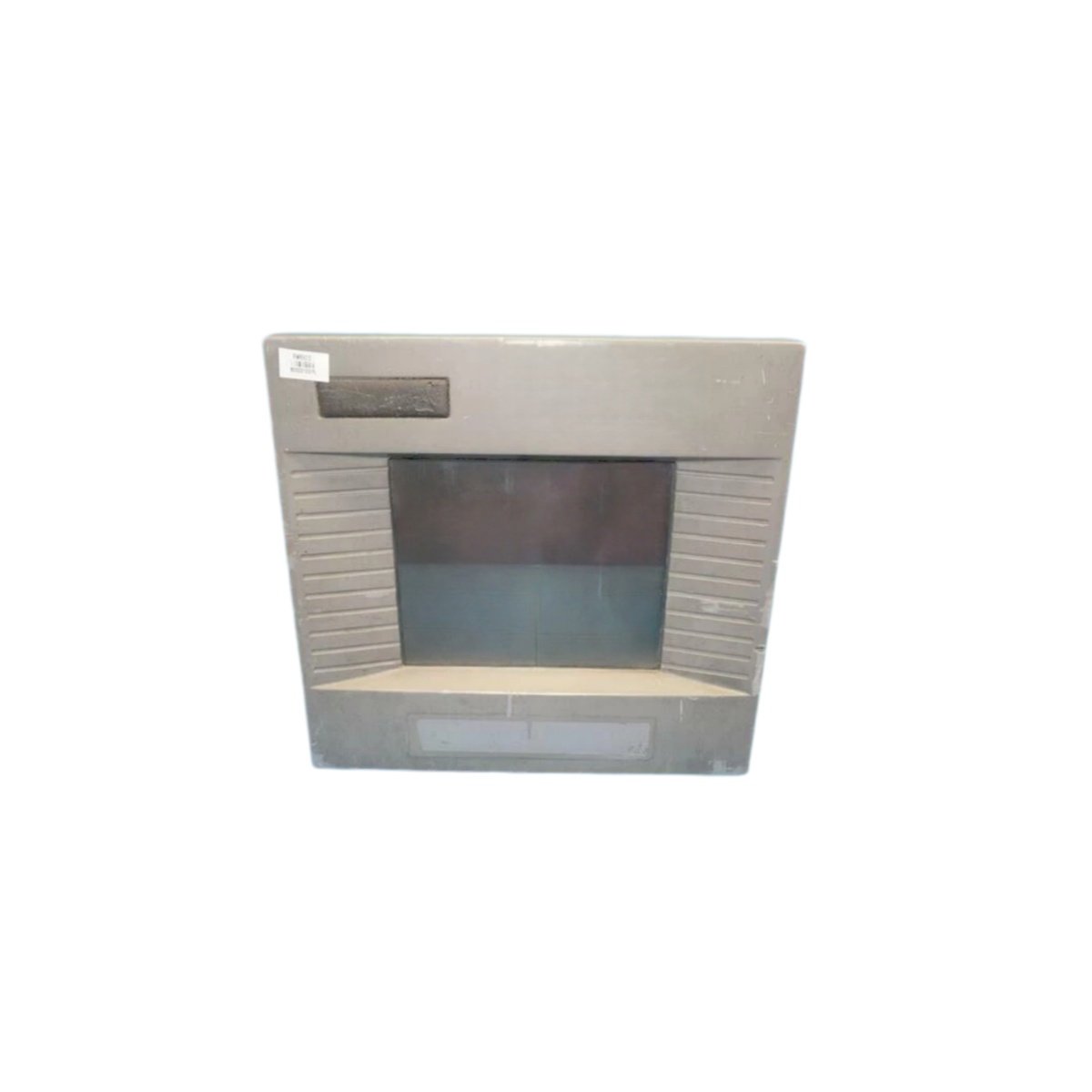

This Xycom operator panel delivers reliable machine control and process monitoring capabilities. The Xycom 97957-121 2000T 97951022 features a high-performance touchscreen for intuitive operator interaction. Its rugged construction ensures dependable operation in demanding industrial settings. This panel suits material handling, packaging, and assembly line applications.
Display and Physical Specifications
The panel incorporates a 10.4-inch color TFT LCD with 640 x 480 pixel resolution. The display area measures 211 mm by 158 mm for optimal viewing clarity. Its overall dimensions reach 310 mm in width and 240 mm in height. The depth measures 85 mm behind the mounting surface for cabinet installation. This unit weighs approximately 3.1 kilograms for stable panel mounting. The Xycom 97957-121 2000T 97951022 includes a resistive touchscreen for accurate data entry. Ten function keys provide direct access to frequently used machine operations.
Electrical Specifications and Interface Options
This panel draws a nominal current of 550 mA from a 24 V DC supply. Peak inrush current reaches 2.8 A for approximately 28 milliseconds during startup. The device consumes about 14 W of power during normal continuous operation. The panel provides one RS-232 port for programming and diagnostic communication. A second RS-485 port supports connection to PLCs and other field devices. The Xycom 97957-121 2000T 97951022 includes a 10/100 Mbit/s Ethernet port for network integration. The unit features 6 MB of flash memory for application and data storage.
Environmental Ratings and Mounting Guidelines
Operating temperatures range from 0°C to 50°C for consistent performance. Storage temperatures extend from -20°C to 70°C without causing damage. Relative humidity tolerance reaches 85% with no condensation forming on surfaces. The front panel meets NEMA 4X and IP65 protection against dust and water. The Xycom 97957-121 2000T 97951022 includes an internal 330 µF capacitor for brief power ride-through. Mount this panel using the provided brackets for a secure installation.
Detailed Specification Table
| Parameter | Specification |
|---|---|
| Display Type | 10.4-inch color TFT LCD |
| Resolution | 640 x 480 pixels |
| Display Area (W x H) | 211 mm x 158 mm |
| Dimensions (W x H x D) | 310 mm x 240 mm x 85 mm |
| Weight | Approx. 3.1 kg |
| Touchscreen | Resistive |
| Function Keys | 10 |
| Supply Voltage | 24 V DC |
| Current Consumption | 550 mA (nominal) |
| Power Consumption | 14 W |
| Communication Ports | RS-232, RS-485, Ethernet |
| Flash Memory | 6 MB |
| Energy Storage Capacitance | 330 µF |
| Operating Temperature | 0°C to 50°C |
| Front Panel Protection | NEMA 4X / IP65 |
Application and Installation Advice
Install this panel in a clean, vibration-free location on the machine front. Cut a 280 mm x 220 mm opening in the control desk panel. Insert the unit from the front and secure it using the provided brackets. Connect the communication cables before applying power to the unit. The Xycom 97957-121 2000T 97951022 supports configuration via the manufacturer’s software tools. Use the function keys for frequently performed tasks like start and stop. Clean the touchscreen surface with a soft, damp cloth regularly. Verify the communication settings match the connected PLC configuration.
