Technical Overview

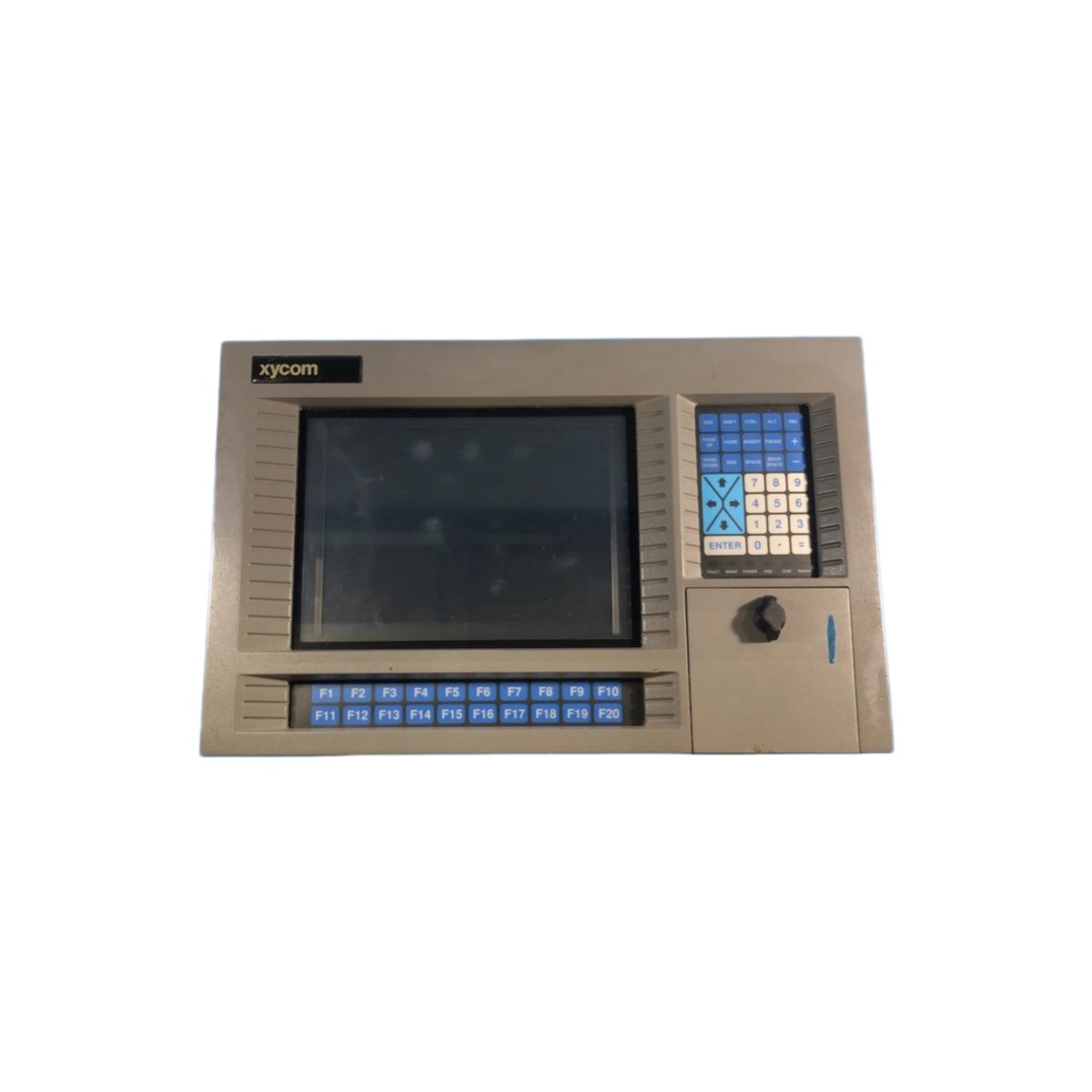

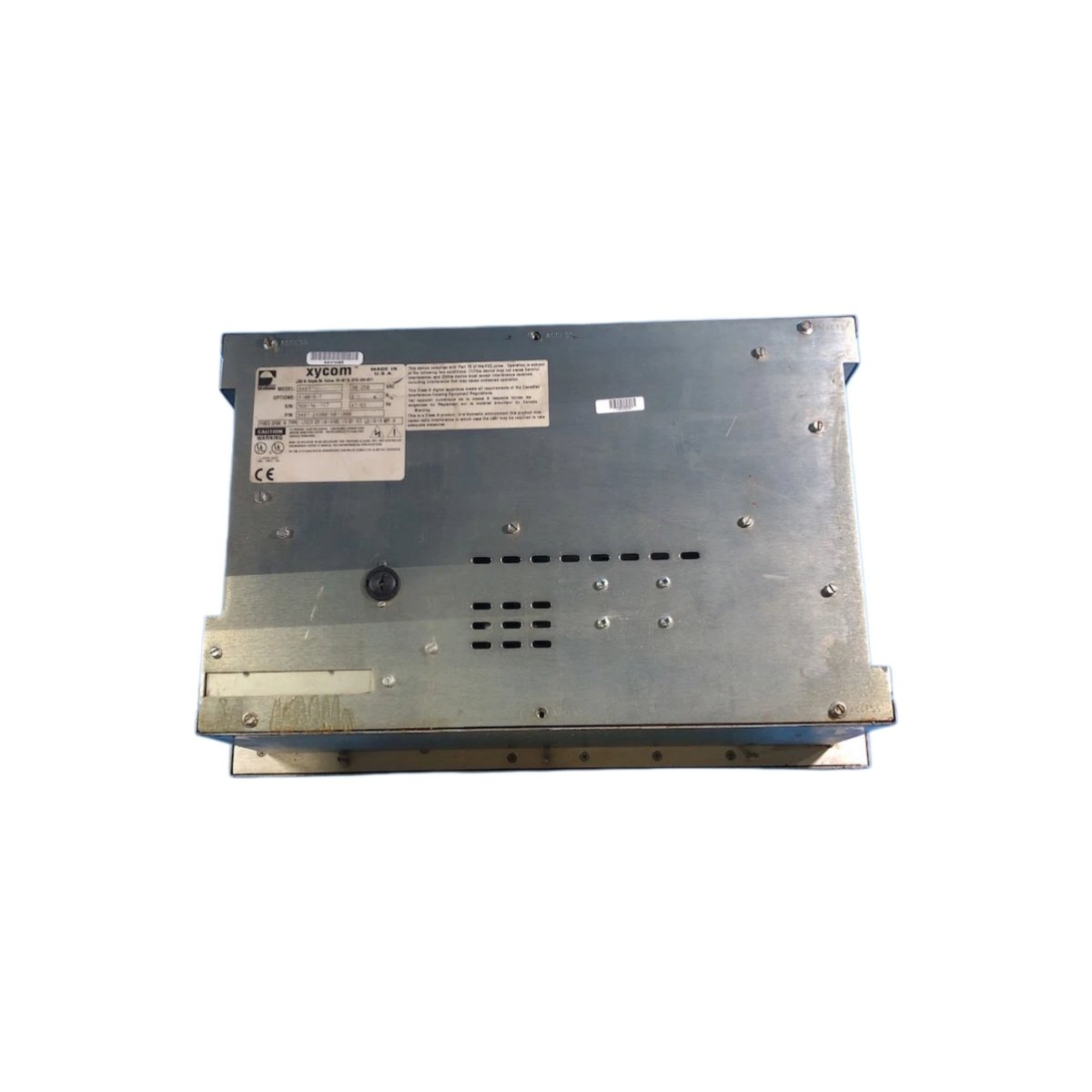

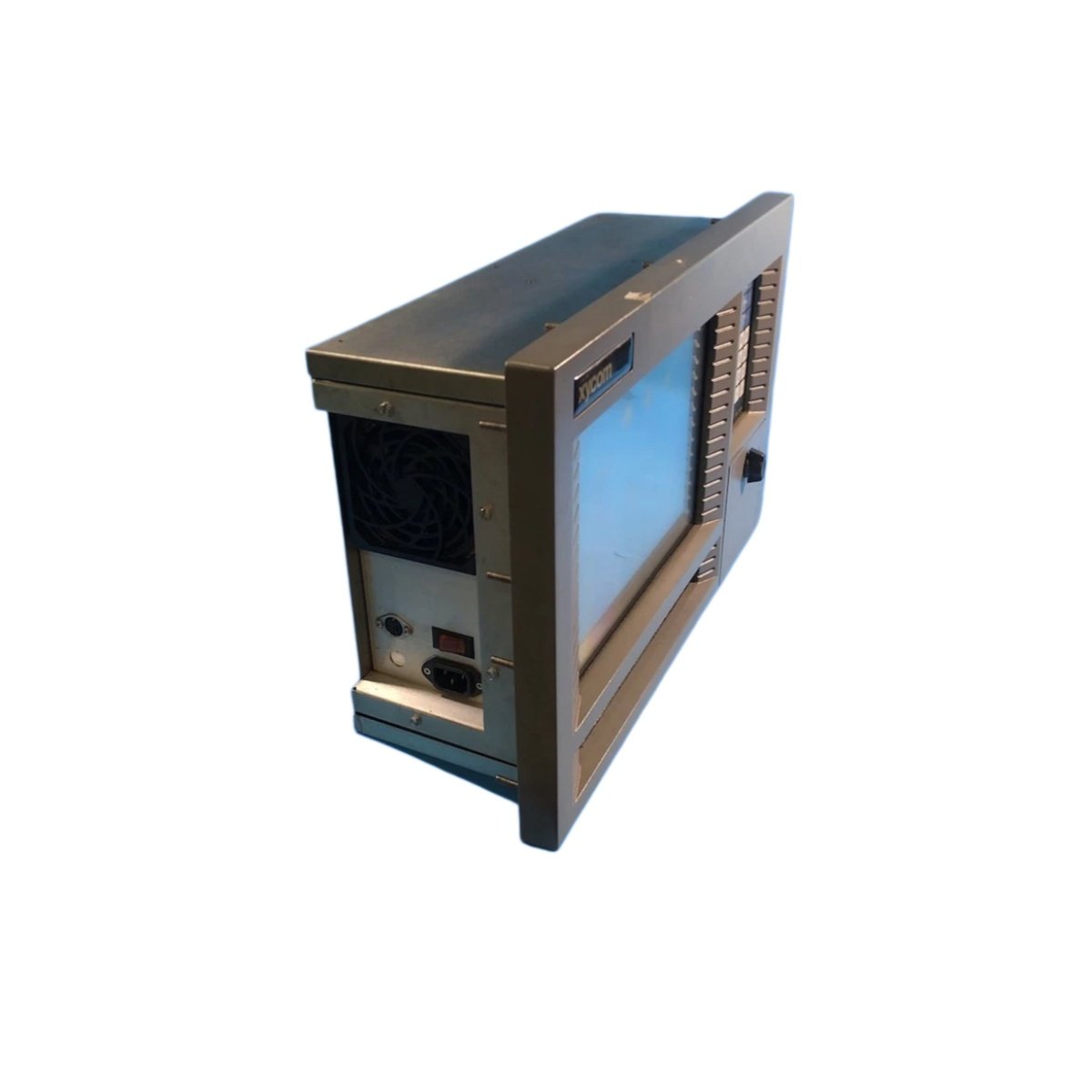

The XYCOM 9485 operator interface panel features a large 15-inch color TFT display for comprehensive process visualization and control. This rugged HMI workstation provides factory personnel with a clear, high-resolution view of plant operations and real-time data. The integrated resistive touchscreen responds accurately to both finger touches and stylus inputs. This panel supports multiple industrial protocols, including Ethernet/IP and Modbus, for seamless connectivity to PLCs and DCS systems.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XYCOM 9485 |
| Product Type | Operator Interface Panel / HMI Workstation |
| Display Size | 15 inches diagonal |
| Display Type | Color TFT active matrix LCD |
| Resolution | 1024 × 768 pixels (XGA) |
| Touchscreen | Resistive analog touchscreen |
| Processor | High-performance embedded CPU |
| System Memory | 256 MB SDRAM |
| Storage | 512 MB Flash memory |
| Communication Ports | Ethernet 10/100, RS-232, RS-422, RS-485, USB |
| Expansion Slots | 2 × PC Card (PCMCIA) slots |
| Power Input | 24 V DC nominal |
| Power Consumption | 50 W maximum |
| Protection Rating | NEMA 4 / IP65 (front panel) |
| Mounting | Panel mount or VESA 75/100 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Dimensions (W × H × D) | 406 mm × 310 mm × 72 mm |
| Unit Weight | Approximately 6.8 kg |
Performance and Application Benefits
The XYCOM 9485 offers a 15-inch XGA display that delivers 1024 × 768 pixel resolution for detailed process graphics and alarm summaries. The resistive touchscreen supports glove-friendly operation, which is essential for heavy industrial environments. The embedded processor and 256 MB SDRAM handle complex HMI applications with multiple windows and real-time data trends. The 512 MB Flash storage provides reliable local storage for application files and data logging. For communications, the 9485 includes Ethernet and multiple serial ports for versatile connectivity to automation equipment. Two PC Card slots facilitate memory expansion or wireless networking adapters for remote access. The NEMA 4-rated front panel protects against dust, water, and chemical splashes, ensuring long-term reliability. These features make the 9485 suitable for demanding applications in power generation, water treatment, and manufacturing facilities.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
