Technical Specifications and Core Features

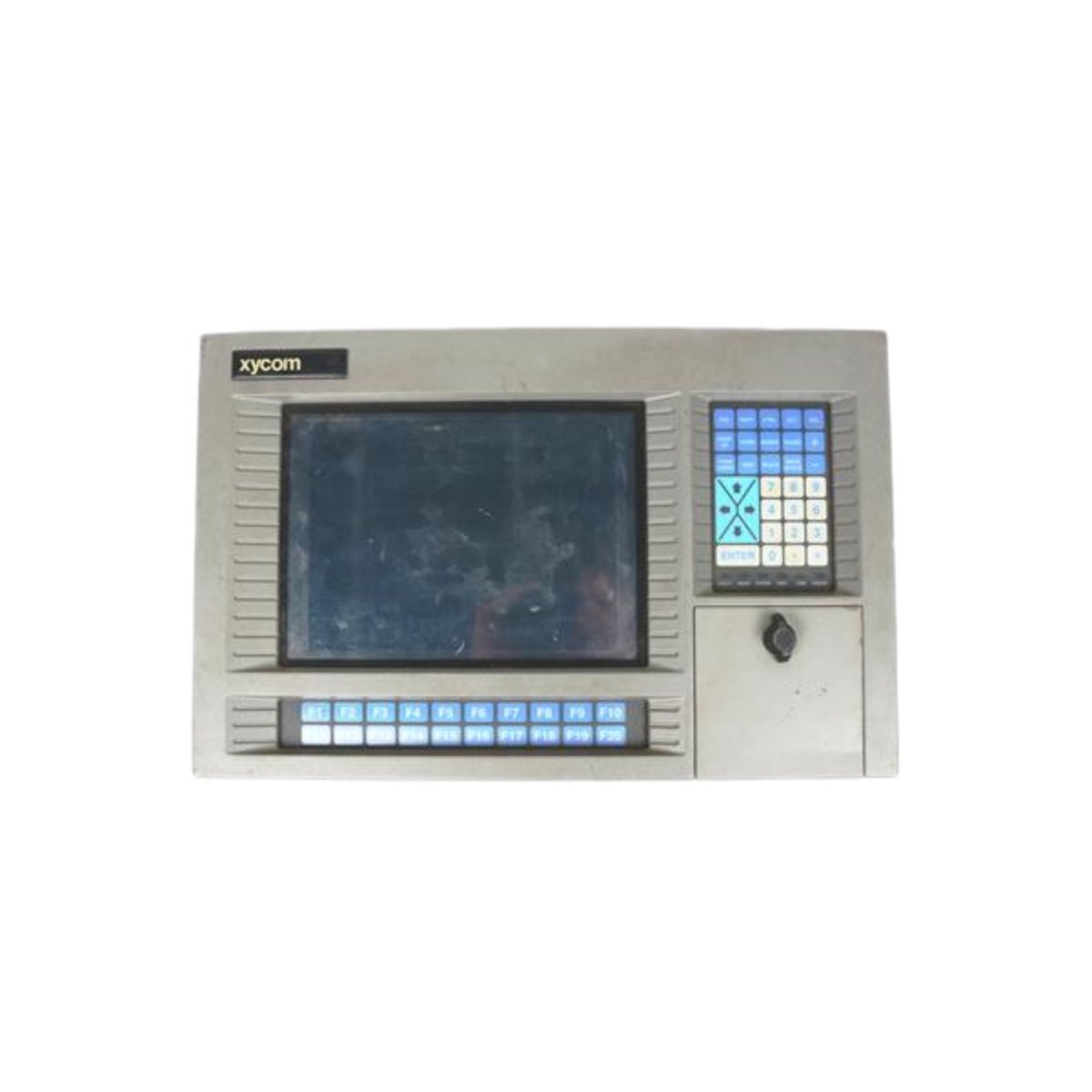

The Xycom 9475 operator interface panel provides a robust and reliable HMI solution for demanding industrial automation applications . This unit features a 12.1-inch high-resolution TFT display with a resistive touchscreen for intuitive operator control . The screen supports a native resolution of 1024 x 768 (XGA) , delivering clear and detailed visuals for process monitoring . It operates on a 24 VDC power supply with a current draw of 2.8 Amps . The panel supports panel-mount installation with dimensions of approximately 310 mm x 235 mm x 55 mm (W x H x D) .

Functional Capabilities and Communication

The Xycom 9475 actively provides operators with a responsive and intuitive interface for controlling industrial processes . The resistive touchscreen enables interaction even when users wear gloves. It supports multiple industrial communication interfaces, including RS-232, RS-485, USB, and Ethernet ports, for seamless integration with PLCs and other control systems . Furthermore, its 1024 x 768 XGA resolution ensures sharp and clear visuals for detailed monitoring and control applications . The panel’s durable construction resists vibrations, dust, and operational wear, ensuring reliable performance in challenging factory environments .

Application Scenarios and Rugged Design

This operator interface panel suits a wide variety of demanding industrial environments, including factory floors, process control rooms, and manufacturing facilities . The front panel carries an IP65 protection rating, which ensures effective resistance to dust and water ingress when properly mounted . Its wide operating temperature range from 0°C to 50°C guarantees dependable performance in many industrial conditions . For system integrators, the Xycom 9475 provides a robust and versatile HMI solution for both new installations and legacy system upgrades, enhancing productivity and operational efficiency .
