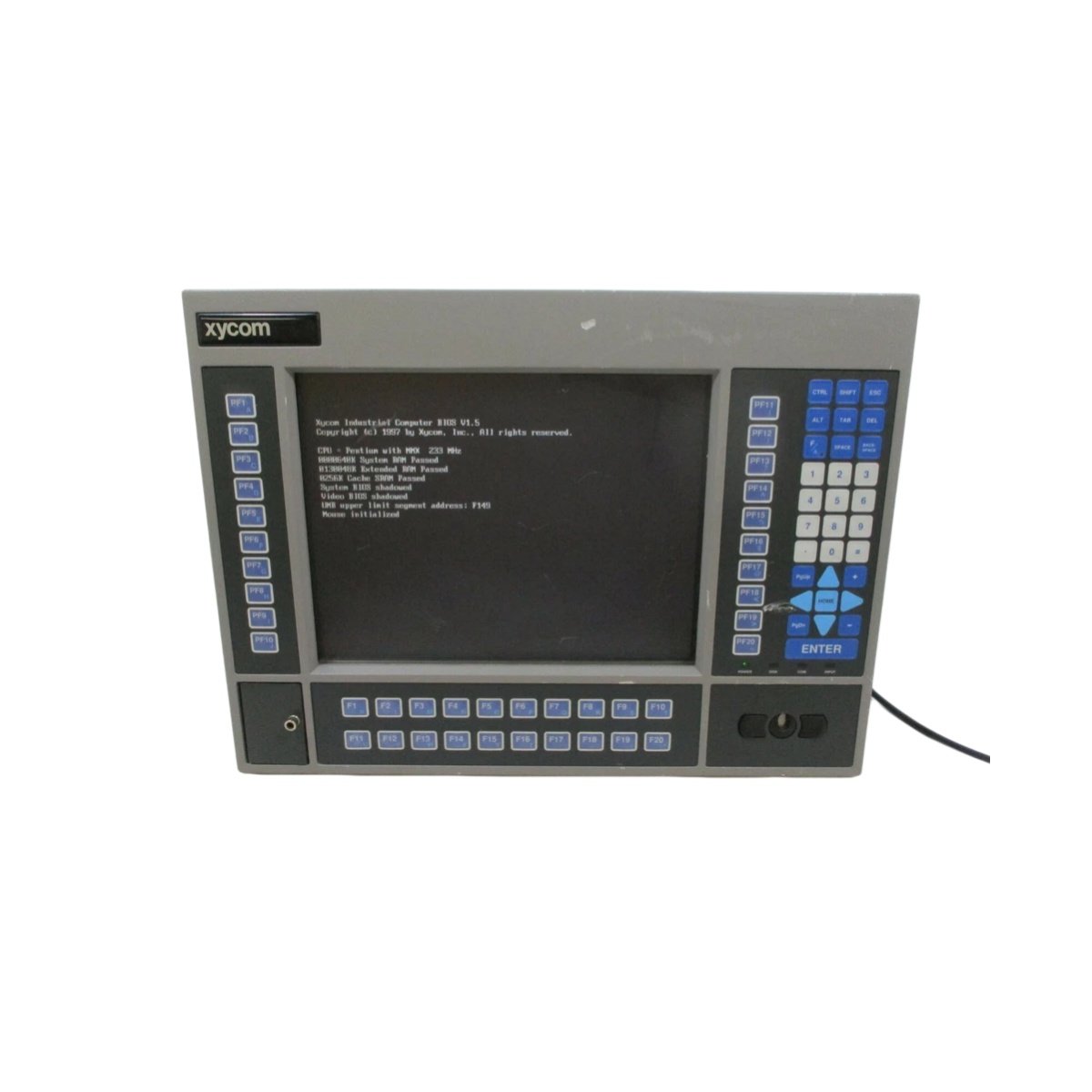

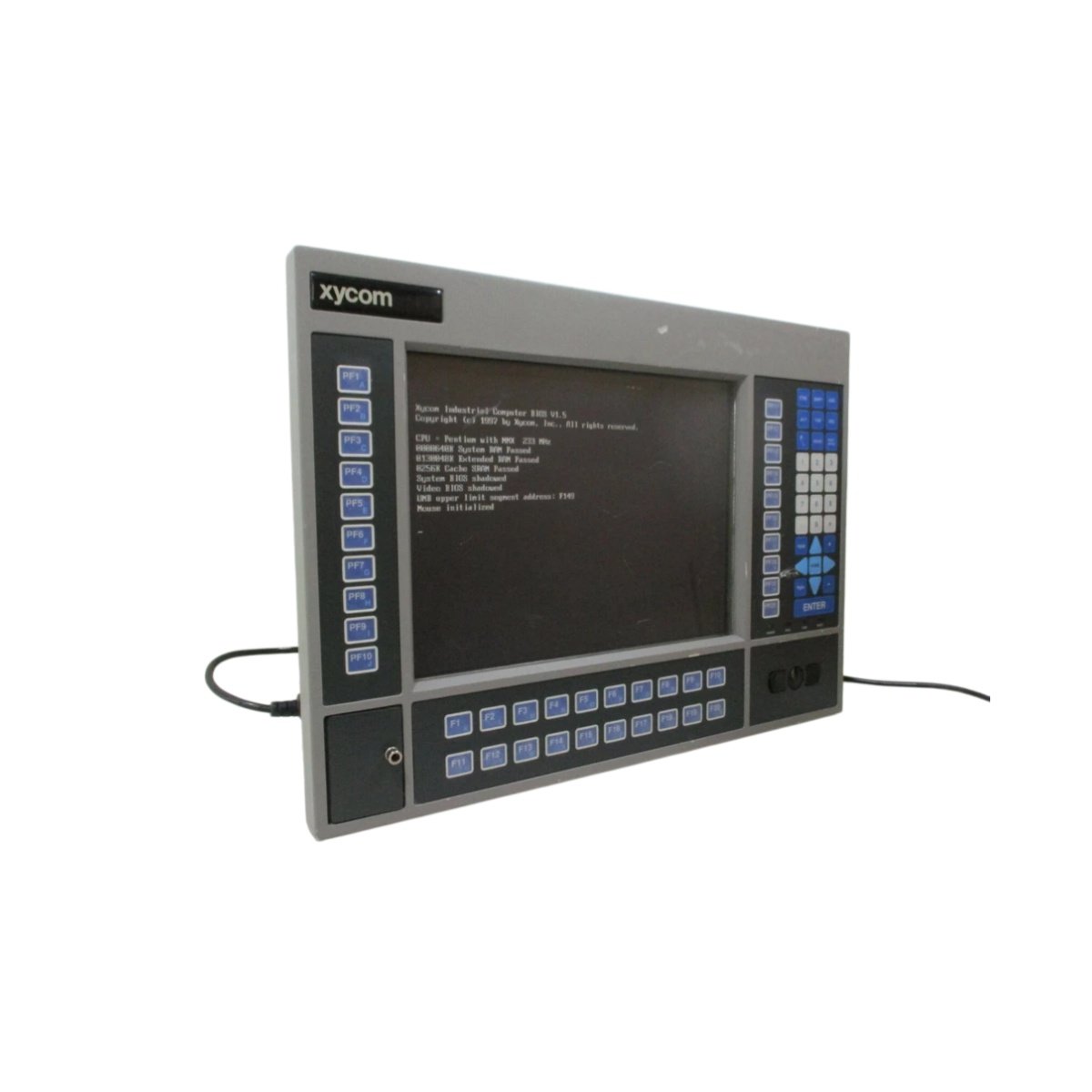

This Xycom control panel provides a robust operator interface for industrial automation systems. The Xycom 9465 features a high-visibility display for machine monitoring and control. Its rugged design withstands harsh manufacturing environments. This panel suits material handling, packaging, and process control applications.

Display and Physical Specifications

The panel incorporates a 10.4-inch color TFT LCD with 640 x 480 pixel resolution. The display area measures 211 mm by 158 mm for comfortable viewing. Its overall dimensions reach 310 mm in width and 240 mm in height. The depth measures 85 mm behind the mounting surface. This unit weighs approximately 3.2 kilograms for stable panel installation. The Xycom 9465 includes a resistive touchscreen for intuitive operator input. Twenty programmable function keys provide direct access to machine operations.

Electrical Specifications and Interface Options

This panel draws a nominal current of 600 mA from a 24 V DC supply. Peak inrush current reaches 3 A for approximately 30 milliseconds. The device consumes about 15 W of power during normal operation. The panel provides one RS-232 port for programming and communication. A second RS-485 port supports connection to PLCs and other devices. The Xycom 9465 includes a 10/100 Mbit/s Ethernet port for network integration. A USB port enables data transfer and peripheral connection. The unit features 8 MB of flash memory for application storage.

Environmental Ratings and Mounting Details

Operating temperatures range from 0°C to 50°C for consistent performance. Storage temperatures extend from -20°C to 70°C without damage. Relative humidity tolerance reaches 85% with no condensation formation. The front panel meets NEMA 4X and IP65 protection against dust and water jets. The Xycom 9465 includes an internal 470 µF capacitor for brief power ride-through. Mount this panel using the provided mounting brackets for a secure fit.

Detailed Specification Table

Application and Installation Guidelines

Install this panel in a clean, vibration-free location on the machine front. Cut a 280 mm x 220 mm opening in the control desk panel. Insert the unit from the front and secure it using the provided brackets. Connect the communication cables before applying power to the unit. The Xycom 9465 supports configuration via the manufacturer’s software tools. Use the function keys for frequently performed tasks like start and stop. Clean the touchscreen surface with a soft, damp cloth regularly. Verify the communication settings match the connected PLC configuration.
