Technical Overview

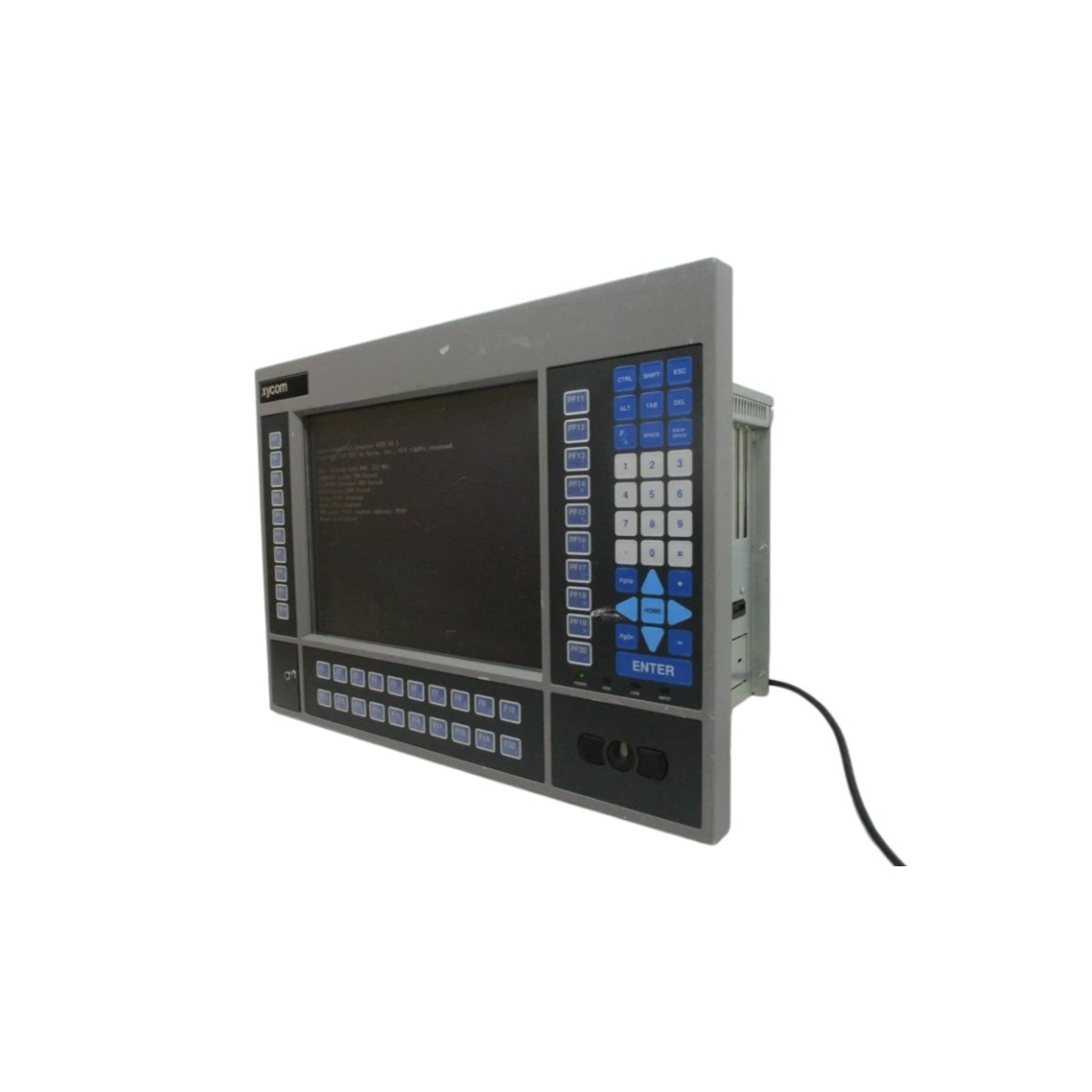

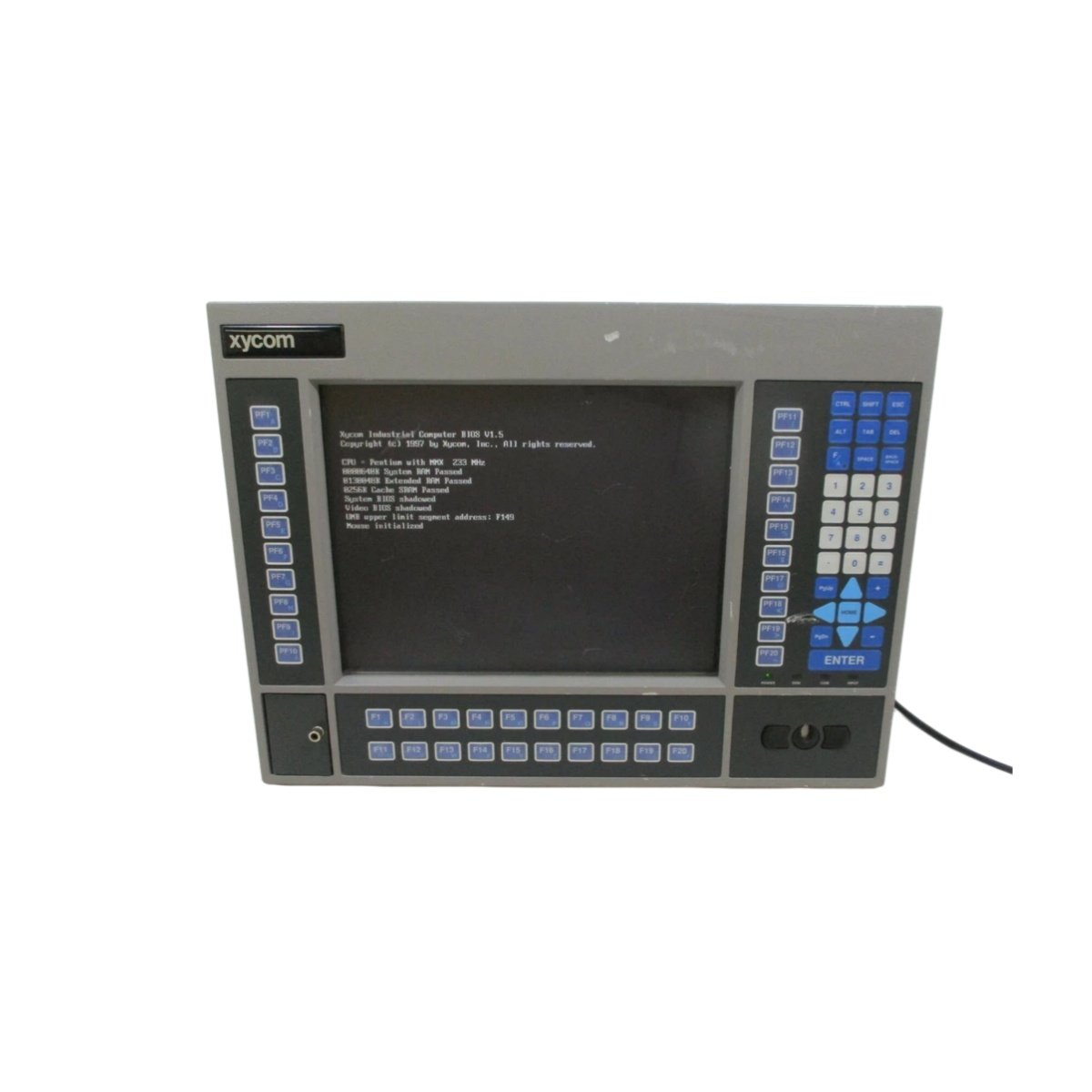

The XYCOM 9465 and 9465KPM industrial control panels provide robust operator interface solutions for factory automation systems. These rugged units integrate a bright 10.4-inch color display with a durable touchscreen for reliable human-machine interaction. The 9465KPM variant includes an additional keypad and pointing device for enhanced operator control flexibility. Both models feature a NEMA 4-rated front panel that withstands moisture, dust, and chemical exposure on the plant floor.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XYCOM 9465 / 9465KPM |
| Product Type | Industrial Control Panel / HMI Workstation |
| Display Size | 10.4 inches diagonal |
| Display Type | Color TFT LCD |
| Resolution | 640 × 480 pixels (VGA) |
| Touchscreen | Resistive analog touchscreen |
| Keypad | 9465KPM includes integrated keypad and pointing device |
| Processor | Embedded Intel or compatible CPU |
| System Memory | 64 MB SDRAM minimum (expandable) |
| Storage | Solid-state Flash disk |
| Communication Ports | Ethernet, RS-232, RS-422, RS-485 |
| Expansion | PC Card (PCMCIA) slot for memory expansion |
| Power Input | 24 V DC nominal |
| Power Consumption | 40 W typical |
| Protection Rating | NEMA 4 / IP65 (front panel) |
| Mounting | Panel mount or desktop with optional stand |
| Operating Temperature | 0°C to 50°C |
| Dimensions (W × H × D) | 311 mm × 241 mm × 67 mm |
| Unit Weight | Approximately 4.8 kg |
Performance and Application Benefits
The 9465 and 9465KPM deliver reliable HMI performance with a 10.4-inch active matrix TFT display for clear process visualization. The resistive touchscreen responds consistently to gloved hands, which is essential for industrial environments. The 9465KPM adds an integrated keypad and pointing device, offering operators an alternative input method for precise control. These panels support multiple communication protocols, including Ethernet and RS-485, for flexible integration with PLCs and DCS systems. The solid-state storage eliminates moving parts, thus improving system reliability and reducing maintenance requirements. The front panel meets NEMA 4/IP65 standards, protecting internal electronics from water, dust, and oil ingress. The universal 24 V DC power input simplifies installation in standard industrial control cabinets. These rugged units provide dependable operation in temperatures from 0°C to 50°C across various manufacturing settings.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
