Technical Specifications and Core Architecture

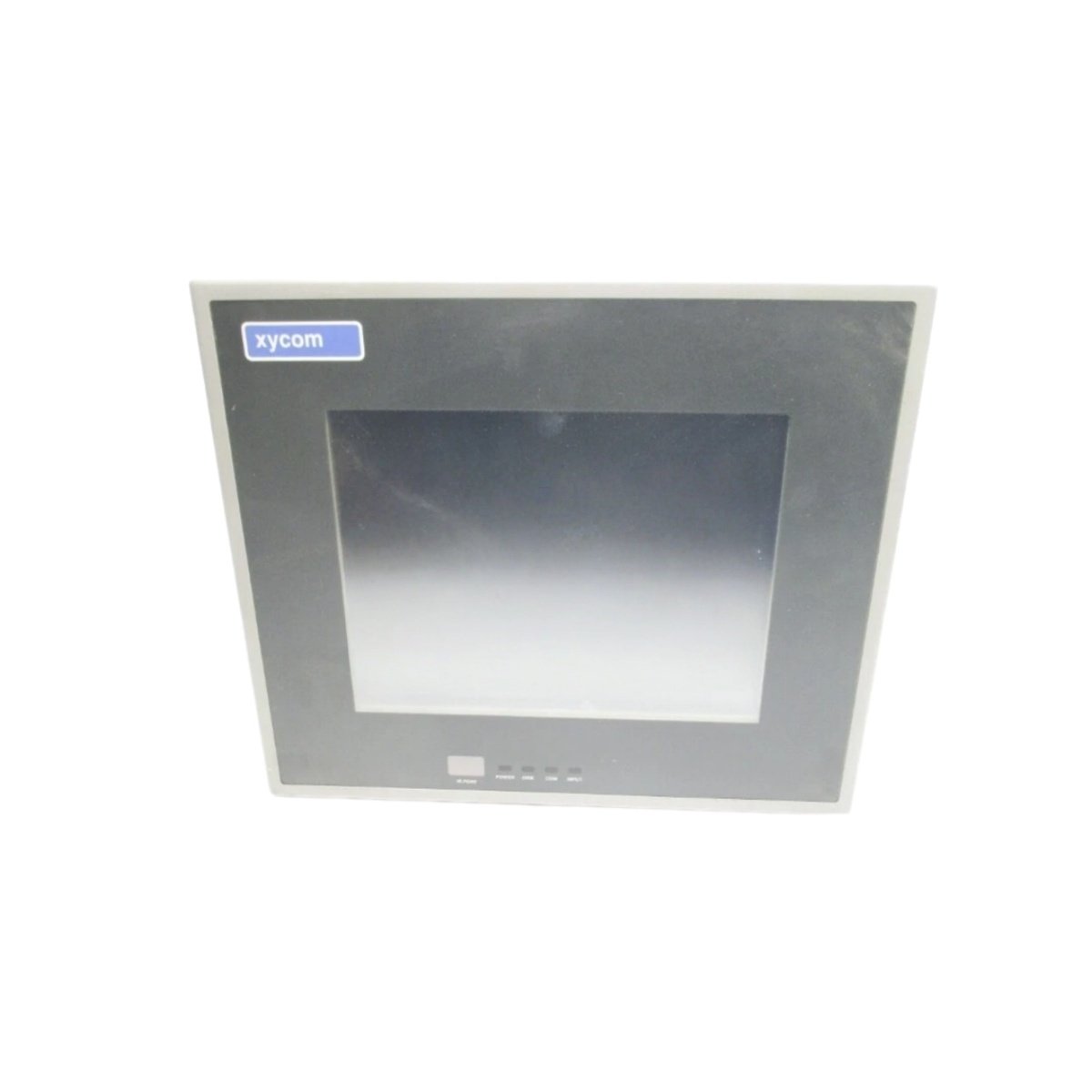

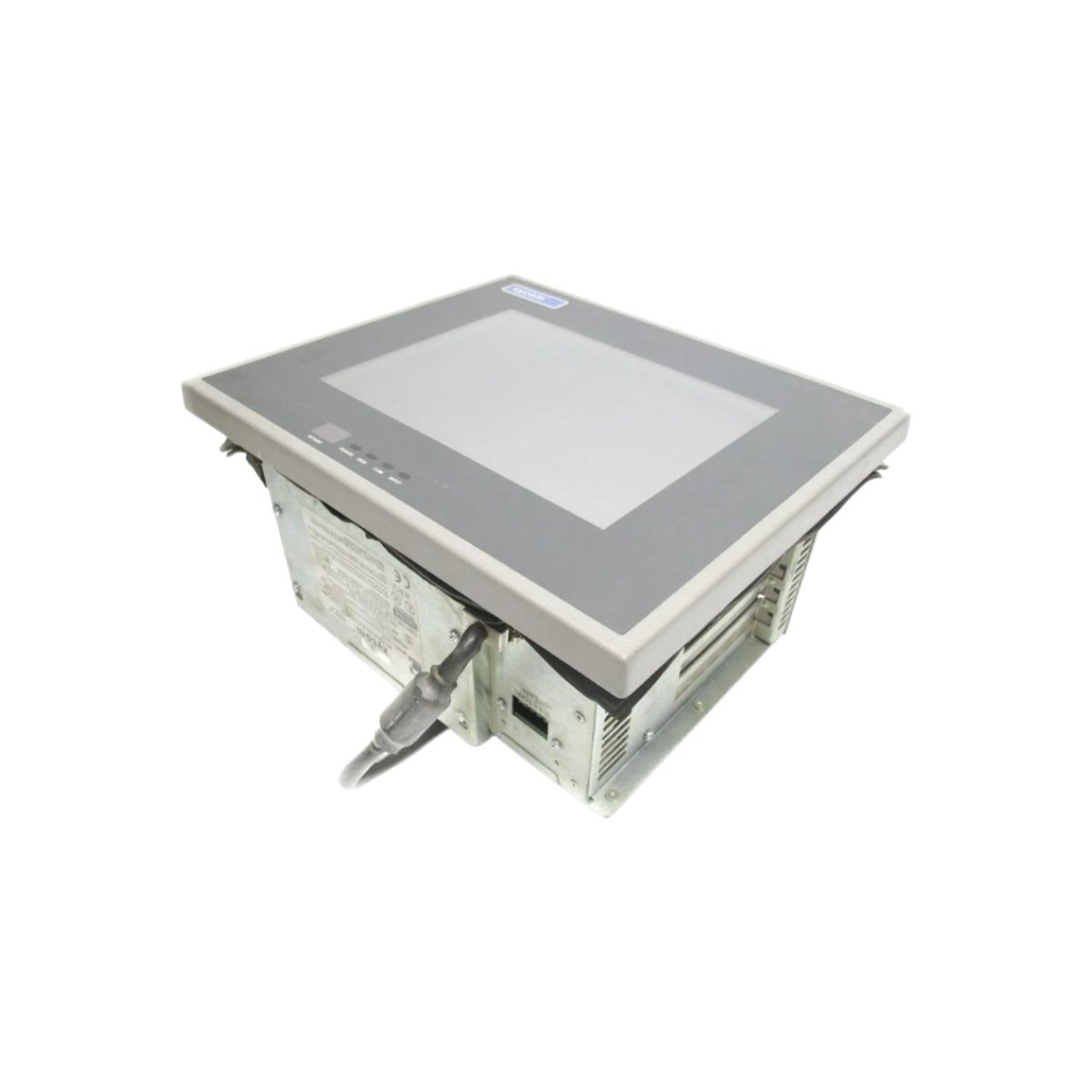

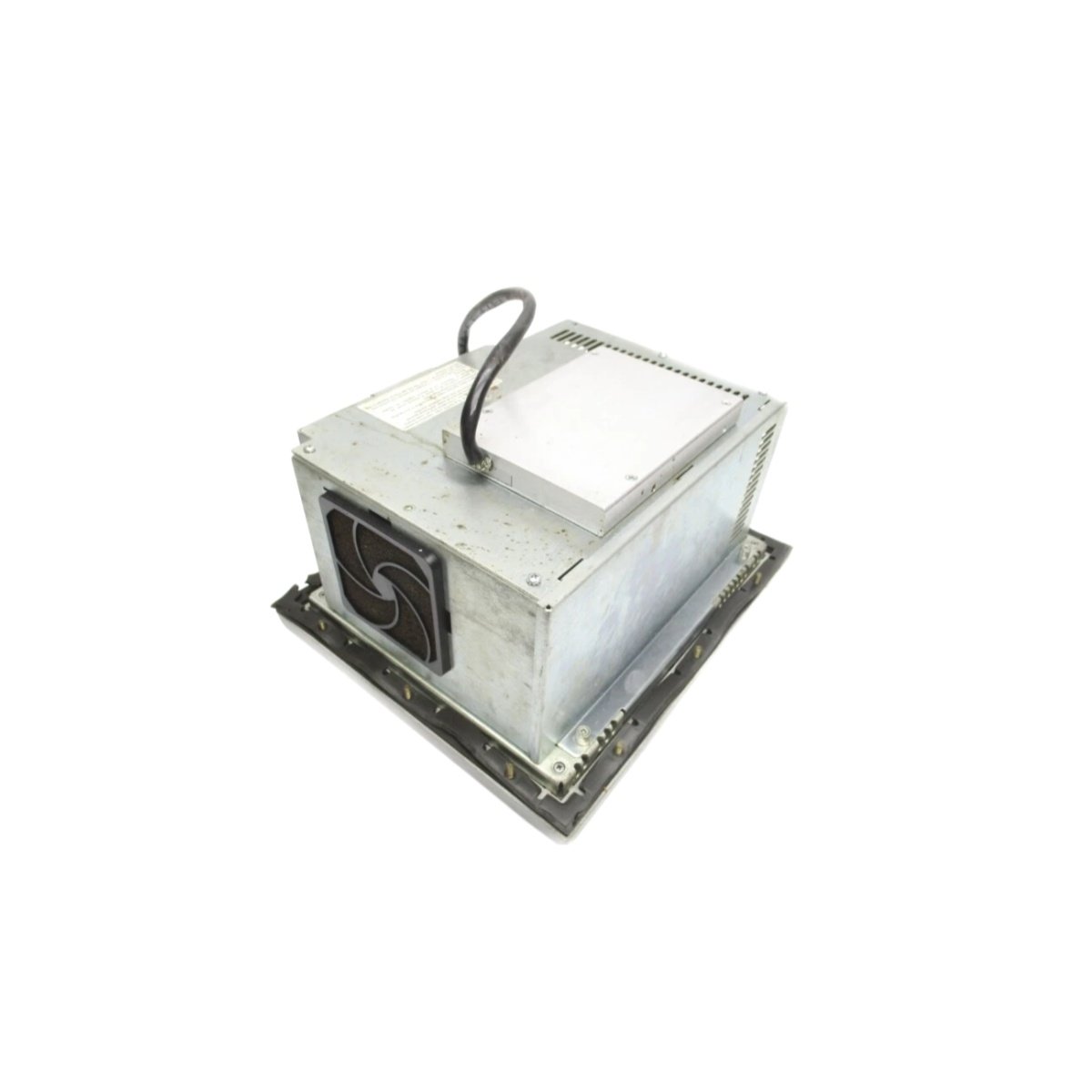

The Xycom 9462-0163140015003 operator interface panel belongs to the Xycom 9462 series of industrial HMI solutions. This unit integrates a high-performance 12.1-inch TFT LCD display with an active matrix color screen, protected by an impact-resistant shield for enhanced durability . It offers two display options: an active matrix TFT color LCD with a resolution of 800×600 pixels or a passive color STN LCD variant . The panel’s front bezel measures 13.0 inches wide by 11.0 inches high, and its total depth reaches 6.5 inches. The system weighs approximately 16 lbs (7.3 kg) .

Functional Capabilities and Interface Features

The Xycom 9462 panel actively provides operators with a robust platform for industrial visualization and control. It supports 32 digital input channels and 32 digital output channels, expandable to 64 channels for high-density I/O requirements . The unit features diagnostic LEDs for power, disk access, serial communication, and touch input status . Moreover, the panel includes an optional infrared port compliant with IrDA and ASKIR standards, enabling wireless communication with compatible devices . Users can operate the panel through its touch screen or physical keys, making it suitable for gloved-hand use. The display’s contrast control allows operators to adjust visibility according to ambient lighting conditions . Its modular VMEbus architecture supports flexible system expansion and integration with other Xycom modules such as 9450 computers or 9485 interfaces .

Application Scenarios and Rugged Design

This operator interface panel suits demanding industrial environments such as factory floors, chemical plants, power generation facilities, and process control rooms. Its IP65-rated front panel effectively resists dust, water, and corrosive substances, making it ideal for washdown areas and outdoor installations . The Xycom 9462 operates reliably across a wide temperature range from -20°C to 60°C, ensuring consistent performance in harsh conditions . Furthermore, the panel’s PowerPC processor with ECC memory delivers accurate data processing essential for mission-critical automation tasks . Typical applications include DCS system integration, SCADA data acquisition, manufacturing line supervision, and robotic system control . For system integrators, this panel provides a robust and versatile HMI solution for both new installations and legacy system upgrades.
