Technical Overview

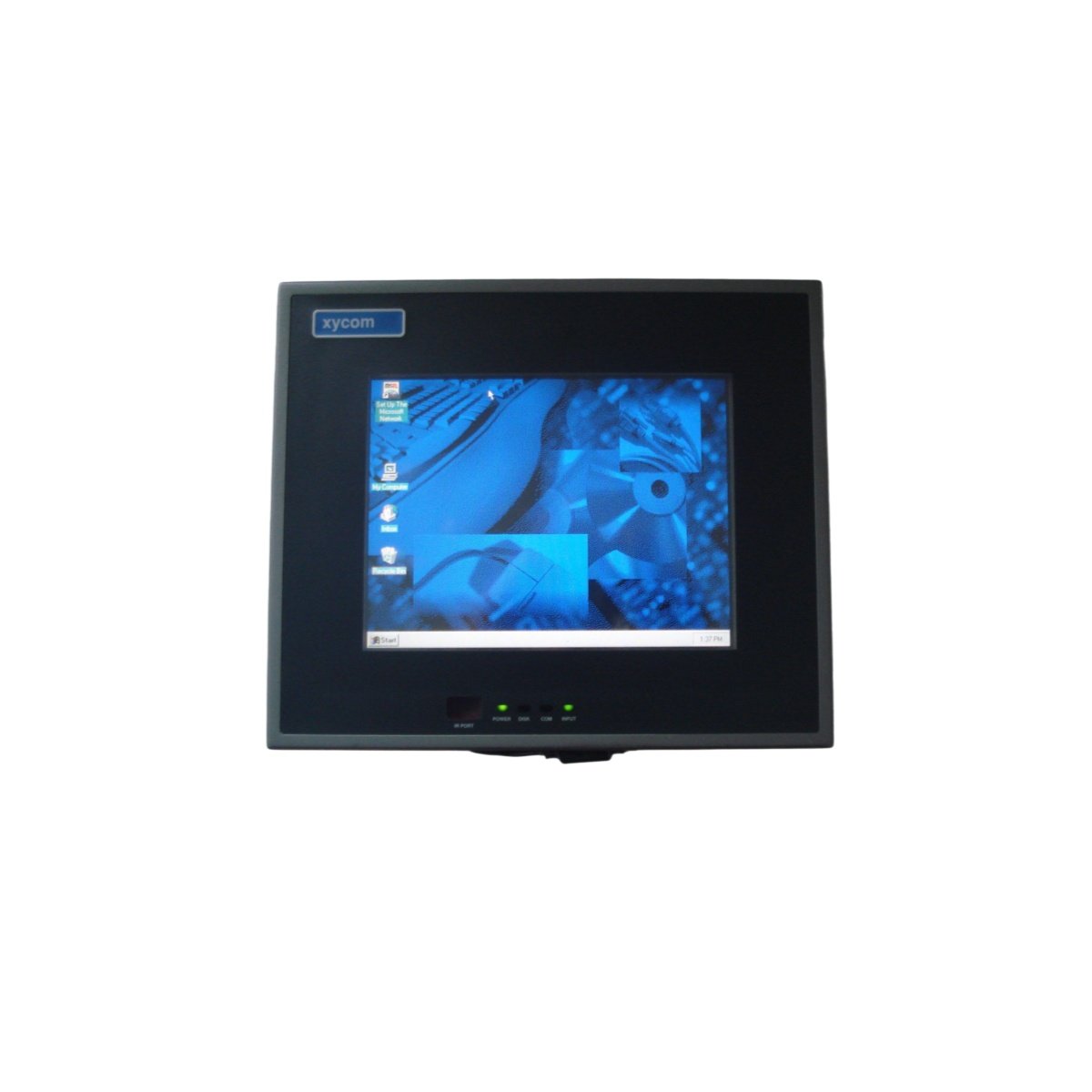

The XYCOM 9460 industrial touch screen computer combines a rugged 10.4-inch color display with an embedded PC platform for demanding factory environments. This all-in-one unit integrates a resistive touchscreen, processing electronics, and communication interfaces into a single NEMA 4-rated enclosure. The system runs standard Windows operating systems, enabling compatibility with a wide range of HMI software applications. For data storage, the 9460 includes both solid-state flash memory and optional rotating media for flexible archiving solutions.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XYCOM 9460 |
| Product Type | Industrial Touch Screen Computer |
| Display Size | 10.4 inches diagonal |
| Display Type | Color TFT active matrix |
| Resolution | 640 × 480 pixels (VGA) |
| Touchscreen | Resistive analog with stylus or gloved hand operation |
| Processor | Intel Celeron or compatible embedded CPU |
| System Memory | 128 MB SDRAM (expandable) |
| Storage | 512 MB Flash disk, optional 2.5-inch HDD |
| Communication Ports | Ethernet 10/100, RS-232, USB, parallel |
| Expansion Slots | 1 × PC Card (PCMCIA) slot |
| Power Input | 24 V DC nominal |
| Power Consumption | 35 W maximum |
| Protection Rating | NEMA 4 / IP65 (front panel) |
| Mounting | Panel mount or desktop with integrated stand |
| Operating Temperature | 0°C to 50°C |
| Dimensions (W × H × D) | 287 mm × 221 mm × 68 mm |
| Unit Weight | Approximately 4.5 kg |
Performance and Application Benefits
The XYCOM 9460 offers a 10.4-inch active matrix TFT display that delivers bright, clear visuals for process graphics and operator controls. The resistive touchscreen responds reliably to both bare fingers and gloved hands, which is essential for industrial environments. The embedded Intel processor provides ample computing power for real-time data logging, alarming, and trending analysis. For application storage and OS boots, the 9460 uses a 512 MB Flash disk that enhances reliability and extends the lifespan of the system. The 9460 supports both standard 24 V DC power and optional AC input, making it versatile for different field installation requirements. The front panel meets NEMA 4/IP65 standards, thus protecting the unit from dust, oil, and water ingress. Multiple communication ports facilitate connections to PLCs, SCADA systems, and other automation equipment. This rugged design reduces maintenance requirements and increases overall system availability in harsh conditions.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
