Technical Specifications and Display Features

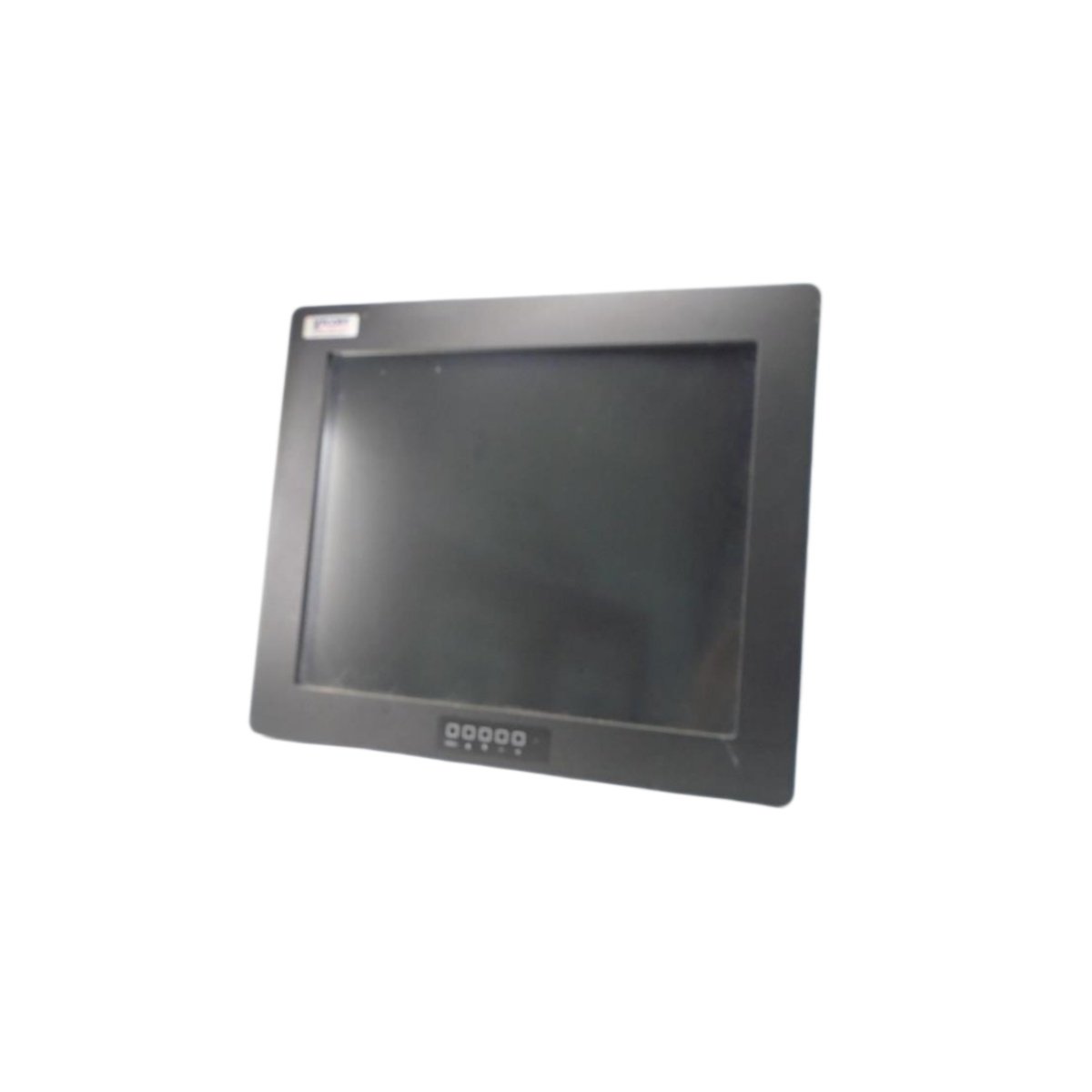

The Xycom 5019T flat panel industrial touch monitor delivers high-performance visualization for demanding automation environments. This 19-inch TFT LCD display supports a native resolution of 1280 x 1024 (SXGA) and reproduces up to 16 million colors for crisp, detailed imagery . The analog resistive touch screen provides reliable operator input via either RS-232 or USB interfaces, ensuring compatibility with various host systems . Its shallow mounting depth of only 2.85 inches facilitates installation in space-constrained control cabinets . The monitor weighs approximately 21 lbs (9.52 kg) .
| Parameter | Specification |
|---|---|
| Manufacturer | Xycom (Pro-face) |
| Model Number | 5019T |
| Display Size | 19-inch TFT LCD |
| Resolution | 1280 x 1024 (SXGA) |
| Display Colors | 16 million |
| Brightness | 300 Nit (typical) |
| Contrast Ratio | 700:1 (typical) |
| Viewing Angles (H/V) | 140° / 130° (typical) |
| Backlight Life | 50,000 hours |
| Touch Technology | 5-wire analog resistive |
| Touch Interfaces | RS-232 and USB |
| Video Inputs | DVI-D, VGA (15-pin analog) |
| Mounting Depth | 2.85 inches (72.39 mm) |
| Weight | 21 lbs (9.52 kg) |
| Front Panel Protection | NEMA 4/4X/12, IP65 (when properly mounted) |
| Operating Temperature | -20°C to 60°C |
| Power Supply (Standard) | 100-240V AC, 0.8A, 50/60 Hz |
| Power Supply (Optional) | 24V DC (18-30V DC range) |
| Hazardous Location | UL Class I & II, Division 2 |
Functional Capabilities and Connectivity
The 5019T monitor actively displays process data, machine status, and control interfaces for industrial HMI applications. Its sophisticated scaling engine automatically optimizes full-screen images for all standard VESA modes up to SXGA @ 75Hz . The monitor includes front-panel OSD controls with a rear lock-out switch for convenient setup and adjustment . It accepts both analog (VGA) and digital (DVI-D) video inputs, providing flexible connectivity with various host computers and controllers . The five-wire analog resistive touch screen delivers accurate and responsive operator input, supported by Elo touch drivers for major Windows operating systems .
Application Scenarios and Rugged Design
This industrial touch monitor suits harsh environments such as factory floors, outdoor kiosks, and process control rooms. Its NEMA 4/4X/12 front panel resists dust, water, and corrosive substances, making it ideal for food processing, chemical plants, and washdown areas . Furthermore, the UL-listed hazardous location approval allows installation in Class I and II, Division 2 areas where flammable gases or dusts may be present . The rugged housing and wide operating temperature range ensure reliable operation in demanding industrial conditions. For system integrators, the Xycom 5019T provides a robust and versatile HMI solution for both new installations and legacy system upgrades.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
