Technical Specifications and Display Features

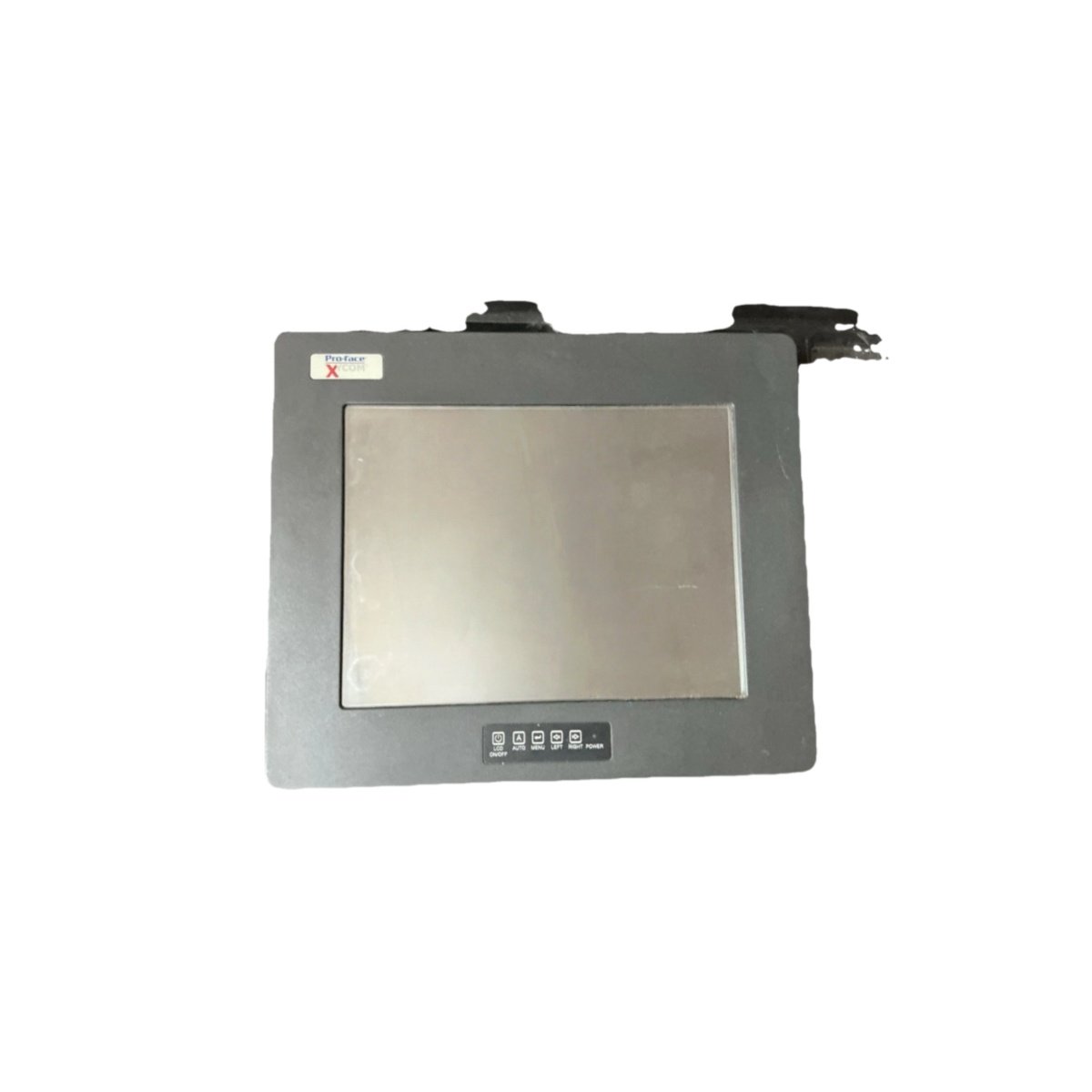

The Xycom 5015T/R2 flat panel touch monitor delivers robust display performance for demanding industrial environments. This 15-inch TFT LCD unit supports a native resolution of 1024 x 768 (XGA) and reproduces up to 265,000 colors for crisp, detailed imagery . The monitor achieves a typical brightness of 350 nits and a contrast ratio of 400:1, ensuring clear visibility in various lighting conditions . Its wide viewing angles of 150° horizontal and 125° vertical allow operators to view the screen from different positions without significant image degradation . The backlight offers a lifespan of 50,000 hours for long-term reliability .

Functional Capabilities and Connectivity

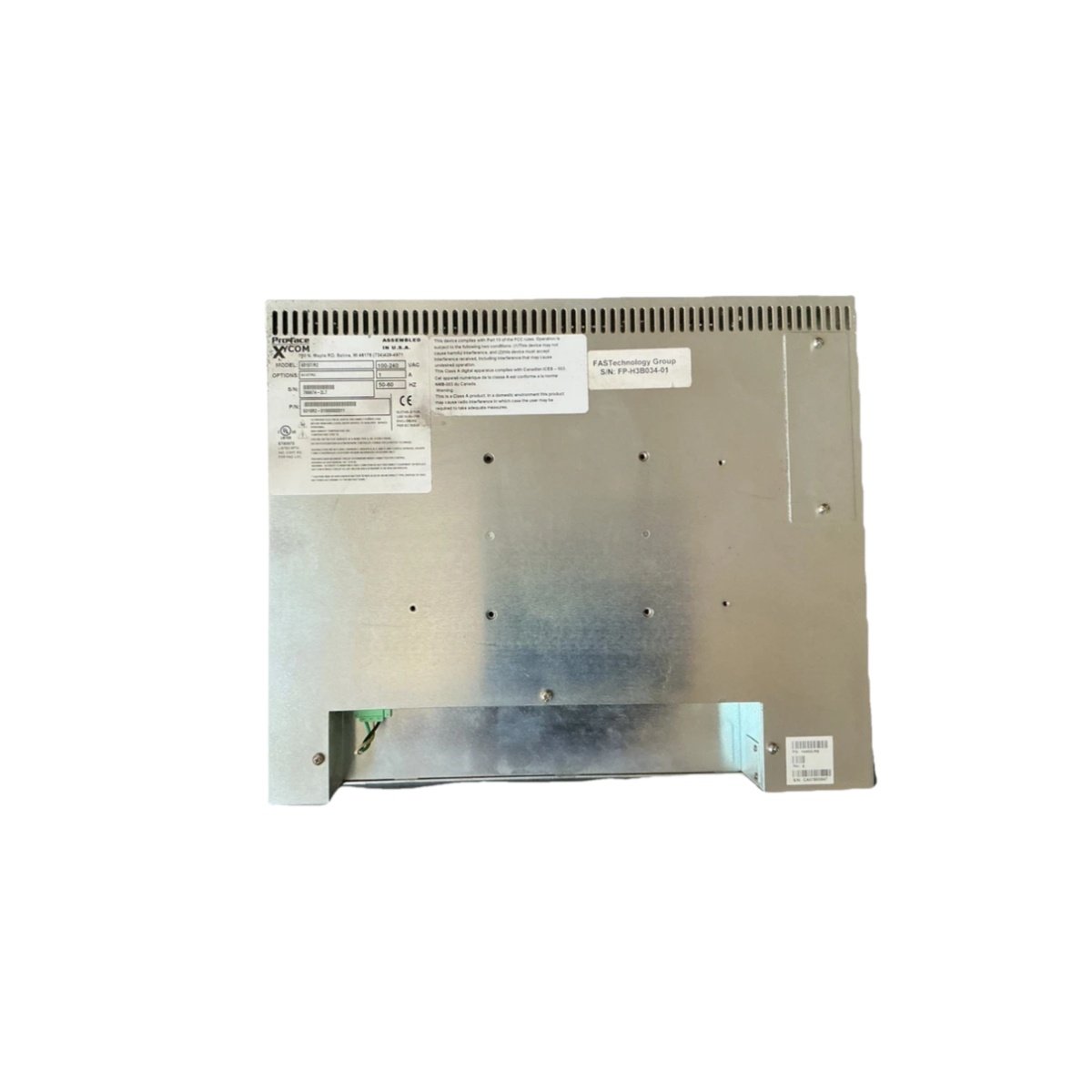

The 5015T/R2 monitor actively displays process data, machine status, and control interfaces for industrial HMI applications . Its sophisticated scaling engine automatically optimizes full-screen images for all standard VESA modes up to XGA at 75Hz . The monitor includes front-panel OSD controls with a rear lock-out switch for convenient setup and adjustment . It accepts both analog (VGA) and digital (DVI-D) video inputs, providing flexible connectivity with various host computers and controllers . The five-wire analog resistive touchscreen delivers accurate and responsive operator input, with both RS-232 and USB interfaces included . Furthermore, the back of the monitor has provisions for mounting Xycom’s 1300-CLIENT and 1506 node computers directly to the unit .

Application Scenarios and Rugged Design

This industrial touch monitor suits harsh environments such as factory floors, outdoor kiosks, and process control rooms . Its NEMA 4/4X/12 front panel resists dust, water, and corrosive substances, making it ideal for food processing, chemical plants, and washdown areas . Furthermore, the UL-listed hazardous location approval allows installation in Class I and II, Division 2 areas where flammable gases or dusts may be present . The monitor mounts easily in previous 5015T and XT1502 monitor cutouts using the included mounting spacers, requiring no change to existing panel openings . For system integrators, the Xycom 5015T/R2 provides a robust and versatile HMI solution for both new installations and legacy system upgrades.
