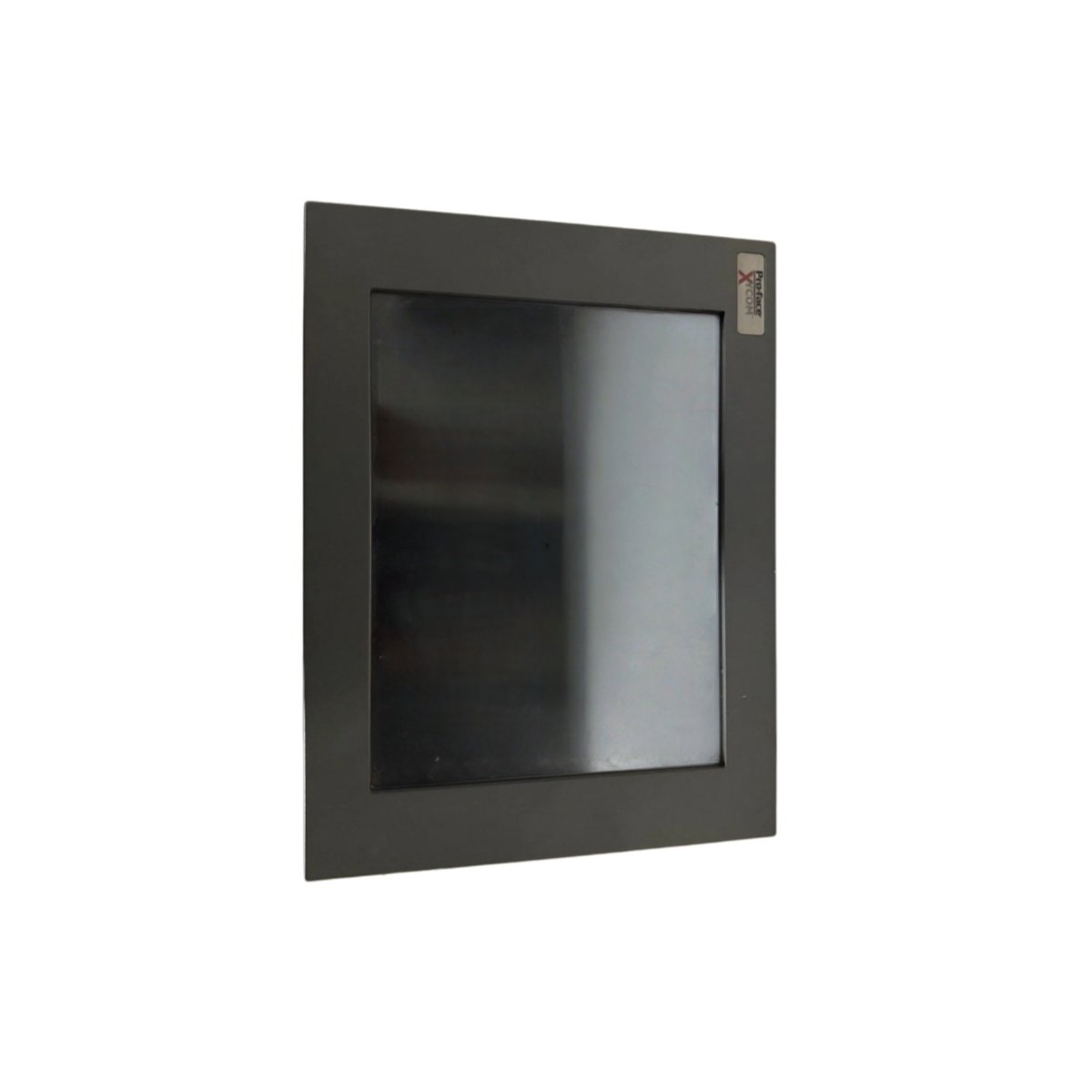

This Xycom operator interface panel offers reliable machine control and monitoring capabilities. The Xycom 4115T features a durable touchscreen for intuitive operator interaction. Its rugged construction withstands demanding industrial environments. This panel suits material handling, packaging, and process control applications.

Display and Physical Specifications

The panel incorporates a 10.4-inch color TFT LCD with 640 x 480 pixel resolution. The display area measures 211 mm by 158 mm for clear viewing. Its overall dimensions reach 310 mm in width and 240 mm in height. The depth measures 85 mm behind the mounting surface. This unit weighs approximately 3.0 kilograms for stable panel installation. The Xycom 4115T includes a resistive touchscreen for data entry and navigation. Eight function keys provide direct access to frequently used operations.

Electrical Specifications and Interface Options

This panel draws a nominal current of 500 mA from a 24 V DC supply. Peak inrush current reaches 2.5 A for approximately 25 milliseconds. The device consumes about 12 W of power during normal operation. The panel provides one RS-232 port for programming and communication. A second RS-485 port supports connection to PLCs and other devices. The Xycom 4115T includes a 10/100 Mbit/s Ethernet port for network integration. The unit features 4 MB of flash memory for application storage.

Environmental Ratings and Mounting Details

Operating temperatures range from 0°C to 50°C for consistent performance. Storage temperatures extend from -20°C to 70°C without damage. Relative humidity tolerance reaches 85% with no condensation formation. The front panel meets NEMA 4X and IP65 protection against dust and water jets. The Xycom 4115T includes an internal 220 µF capacitor for brief power ride-through. Mount this panel using the provided mounting brackets for a secure fit.

Detailed Specification Table

Application and Installation Guidelines

Install this panel in a clean, vibration-free location on the machine front. Cut a 280 mm x 220 mm opening in the control desk panel. Insert the unit from the front and secure it using the provided brackets. Connect the communication cables before applying power to the unit. The Xycom 4115T supports configuration via the manufacturer’s software tools. Use the function keys for frequently performed tasks like start and stop. Clean the touchscreen surface with a soft, damp cloth regularly. Verify the communication settings match the connected PLC configuration.
