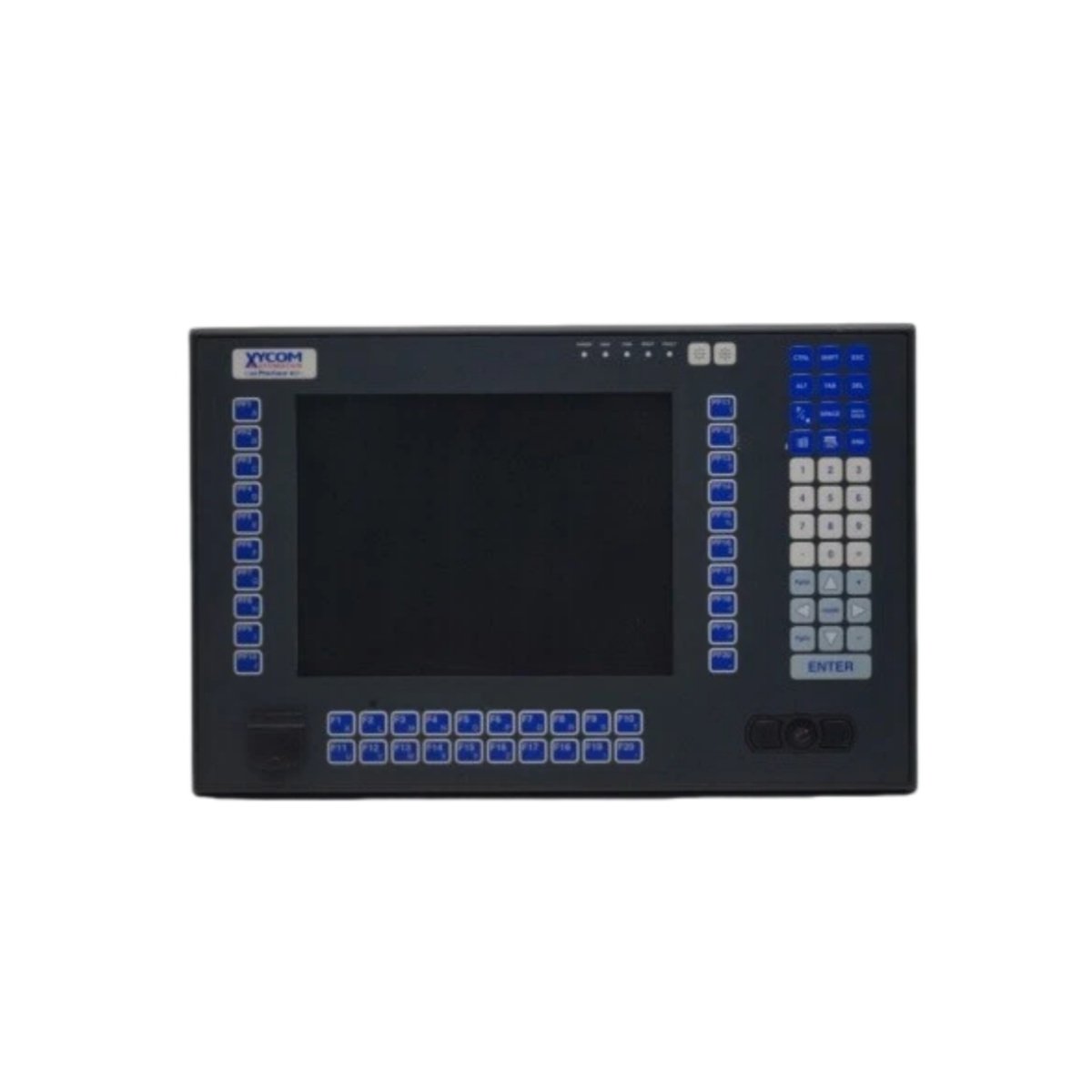

This Xycom LCD flat panel display provides clear visual feedback for industrial automation systems. The Xycom 3712 delivers high-contrast graphics for effective machine monitoring. Its rugged design ensures reliable operation in harsh manufacturing environments. This display suits operator workstations and control room installations.
Display and Physical Specifications
The display features a 12.1-inch color TFT LCD with 800 x 600 pixel resolution. The display area measures 246 mm by 184 mm for excellent viewing. Its overall dimensions reach 330 mm in width and 270 mm in height. The depth measures 95 mm behind the mounting surface. This unit weighs approximately 4.0 kilograms for stable panel installation. The Xycom 3712 includes a resistive touchscreen option for interactive operation. Six front-mounted keys provide brightness and contrast adjustment controls.
Electrical Specifications and Interface Options
This display draws a nominal current of 700 mA from a 24 V DC supply. Peak inrush current reaches 3.5 A for approximately 30 milliseconds during startup. The device consumes about 17 W of power during normal continuous operation. The display provides one VGA input for analog video signal connection. A second DVI-D input supports digital video signals for compatibility. The Xycom 3712 includes a 15-pin D-sub connector for touchscreen communication. An internal 1000 µF capacitor provides energy storage for brief power interruptions.
Environmental Ratings and Mounting Details
Operating temperatures range from 0°C to 50°C for consistent performance. Storage temperatures extend from -20°C to 70°C without causing damage. Relative humidity tolerance reaches 85% with no condensation forming on surfaces. The front panel meets NEMA 4X and IP65 protection against dust and water. The Xycom 3712 includes a cold-cathode backlight for uniform screen illumination. Mount this display using the provided VESA mounting brackets for a secure fit.
Detailed Specification Table
| Parameter | Specification |
|---|---|
| Display Type | 12.1-inch color TFT LCD |
| Resolution | 800 x 600 pixels |
| Display Area (W x H) | 246 mm x 184 mm |
| Dimensions (W x H x D) | 330 mm x 270 mm x 95 mm |
| Weight | Approx. 4.0 kg |
| Touchscreen | Resistive (optional) |
| Front Keys | 6 (brightness/contrast) |
| Supply Voltage | 24 V DC |
| Current Consumption | 700 mA (nominal) |
| Power Consumption | 17 W |
| Video Inputs | VGA, DVI-D |
| Touchscreen Interface | 15-pin D-sub |
| Energy Storage Capacitance | 1000 µF |
| Backlight Type | Cold-cathode |
| Operating Temperature | 0°C to 50°C |
| Front Panel Protection | NEMA 4X / IP65 |
Application and Installation Guidelines
Install this display in a clean, vibration-free location on the machine front. Cut a 300 mm x 240 mm opening in the control desk panel. Insert the unit from the front and secure it using the provided brackets. Connect the video and power cables before applying power to the unit. The Xycom 3712 supports both VGA and DVI-D video signal standards. Adjust the brightness and contrast using the front-mounted keys. Clean the display surface with a soft, dry cloth regularly. Verify the video settings match the connected source configuration.
