Technical Specifications and Core Architecture

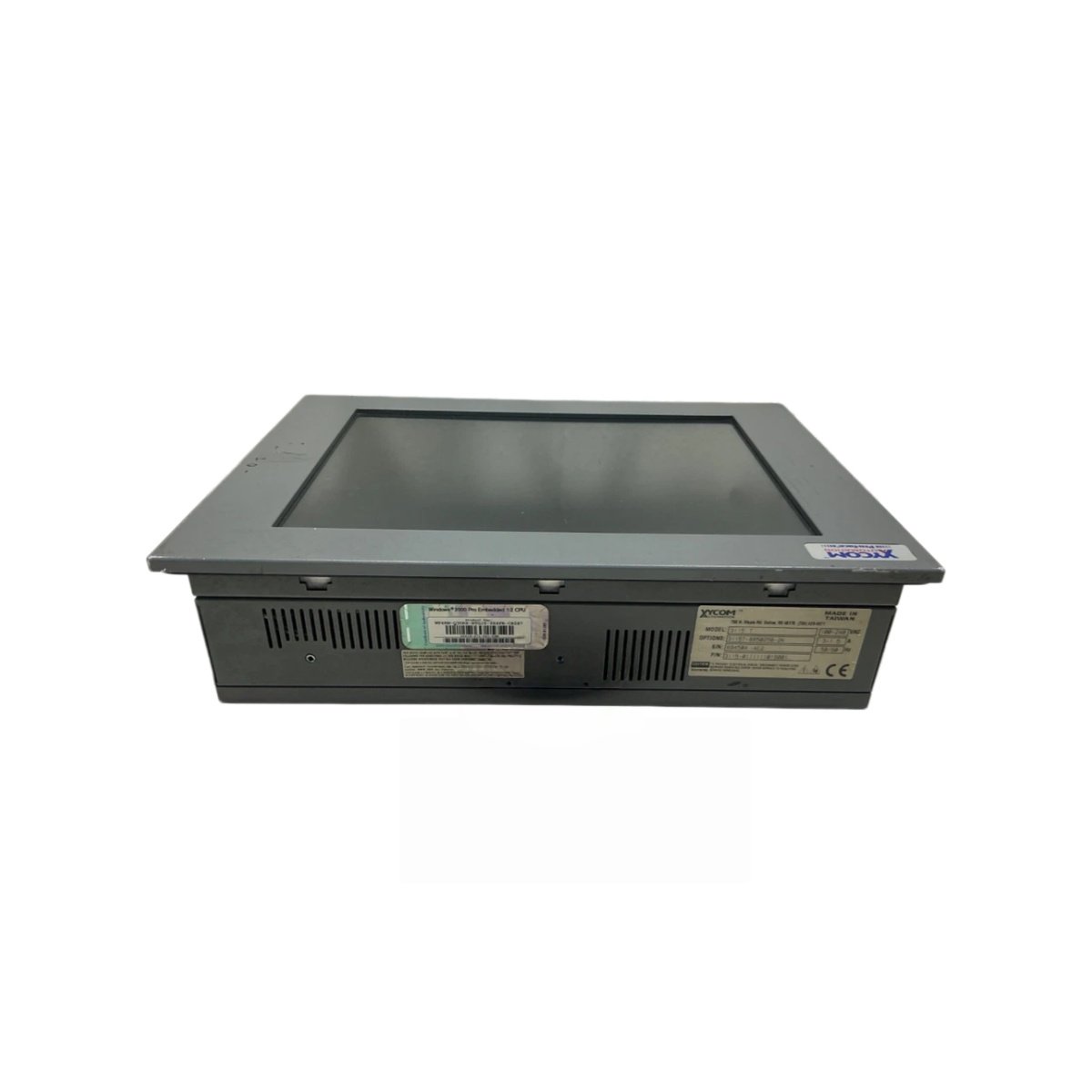

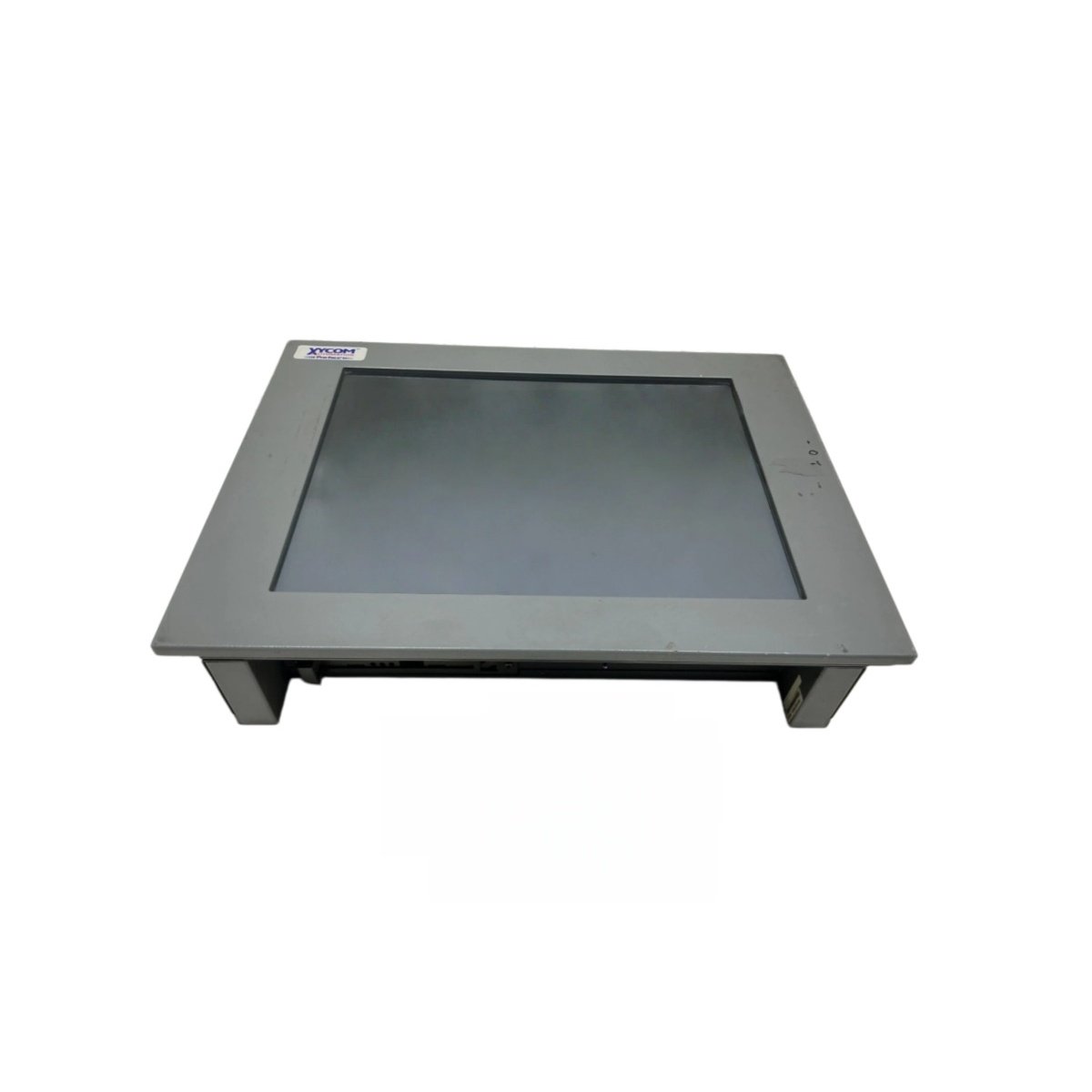

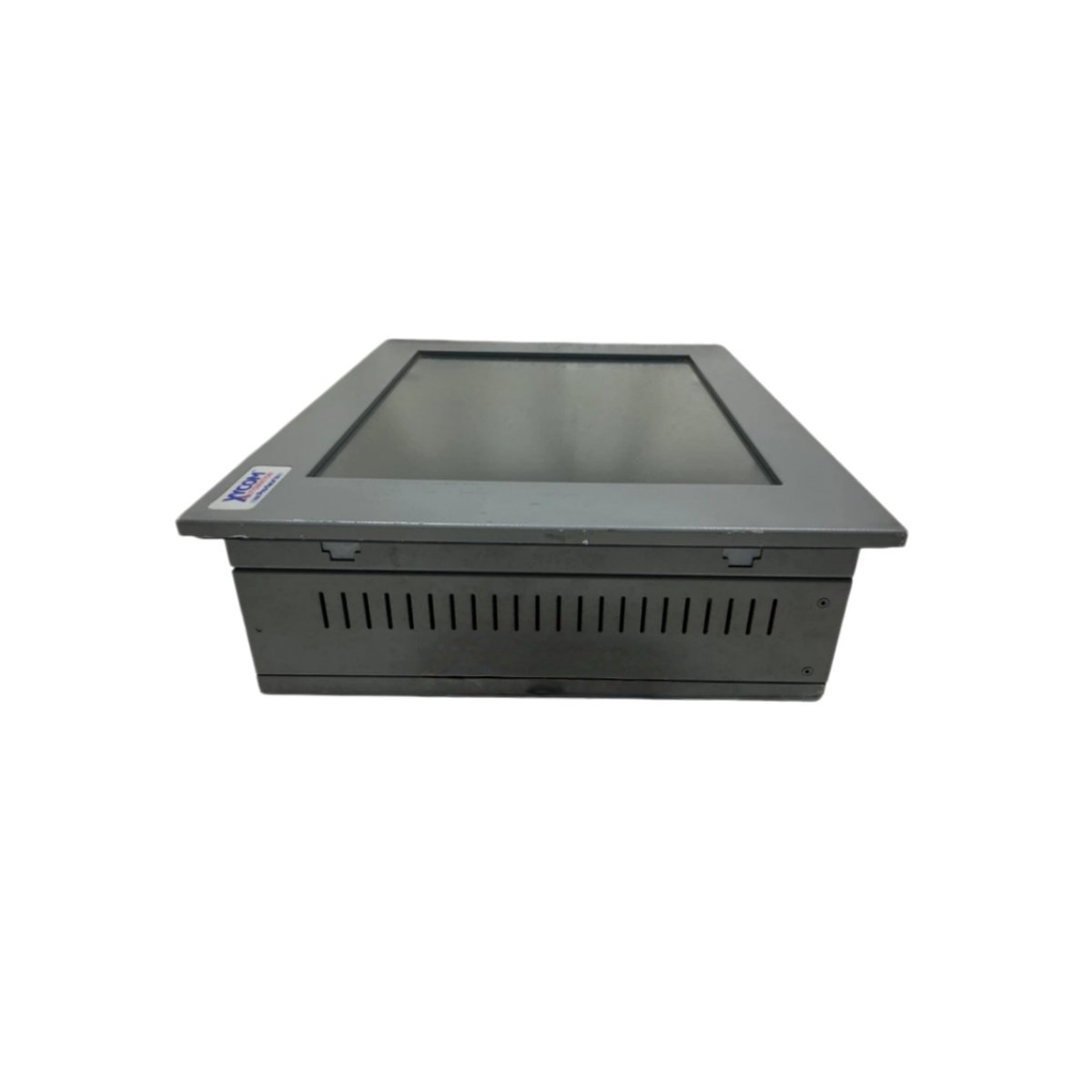

The Xycom 3115T automation panel integrates a powerful industrial PC with a high-resolution flat-panel display. This unit operates as a complete IBM PC/AT-compatible computer, featuring a POS-370N CPU board with a Celeron 1.2 GHz or Pentium III 1.26 GHz processor . It comes standard with 256 MB of DRAM and a 20 GB 2.5-inch hard drive for ample data storage . The system includes a 3.5-inch floppy drive and a slim-line CD-ROM drive for flexible media access . The panel measures approximately 410 mm x 309 mm (W x H) with a depth of only 93.4 mm, and its front panel has a thickness of 9 mm . Its weight registers at roughly 4.5 kg .

Functional Capabilities and Connectivity

The 3115T actively executes Windows-based HMI applications directly on the factory floor. Its analog resistive touchscreen supports operation with gloved hands, ensuring usability in industrial settings . The panel offers an extensive array of I/O ports: two high-speed RS-232 ports, one configurable RS-232/422/485 port, two parallel ports, two USB ports, one 10/100 Mbps Ethernet port, and a VGA port for an external monitor . It also includes audio I/O and a PS/2 keyboard/mouse port. Furthermore, the unit features a half-size PCI expansion slot for adding specialized function cards .

Application Scenarios and Rugged Design

This automation panel suits demanding industrial environments such as factory floors, machine control stations, and SCADA systems . Its IP65-rated front panel effectively resists dust and water ingress, making it suitable for food processing, chemical plants, and washdown areas . The 3115T supports multiple mounting options including panel, wall (with bracket), and VESA standard arms . Its wide operating temperature range of 0°C to 50°C ensures reliable performance in many industrial conditions. For system integrators, this unit offers a robust and flexible platform for both new installations and legacy system upgrades.
