Core Function of This Steam Turbine Control

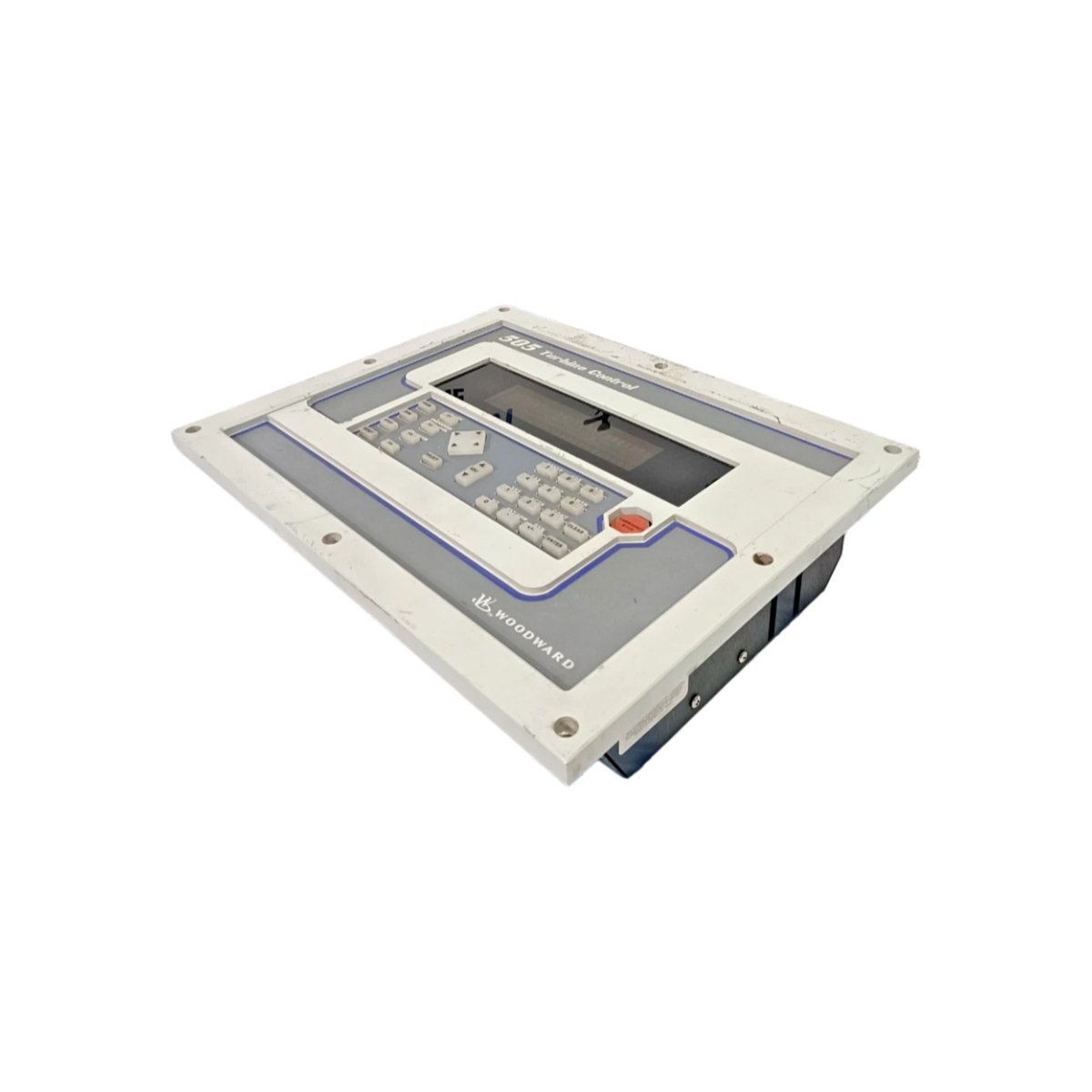

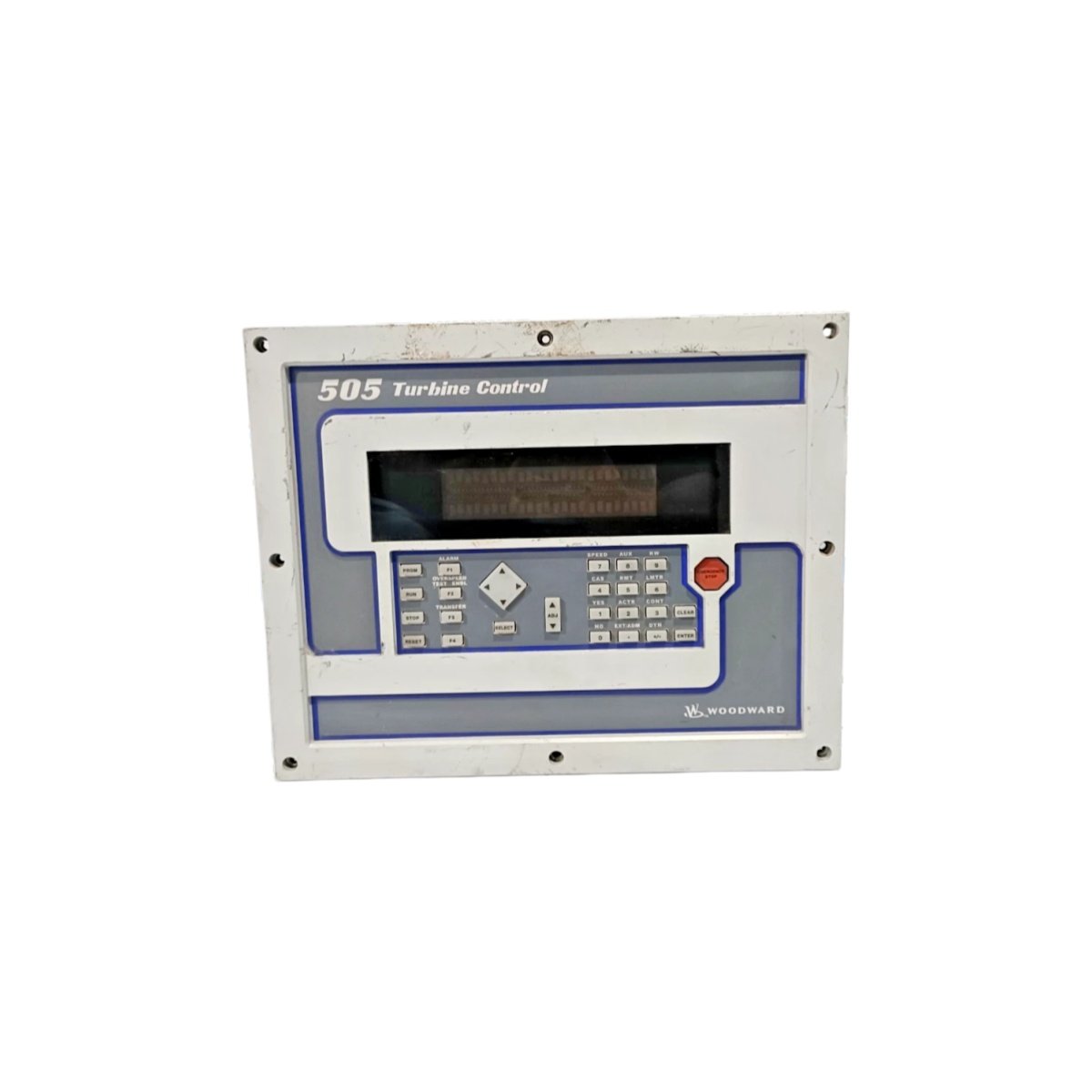

The Woodward 9907-1183 manages steam turbine speed and load in real time. This digital control unit handles start-up, synchronization, and shutdown sequences. It processes inputs from speed sensors and pressure transmitters. Consequently, the module ensures stable turbine operation across varying steam conditions.

Physical Dimensions and Chassis Design

This steam turbine control measures 265 mm in total height. Its width reaches 185 mm for a panel-mount enclosure. The unit depth stands at 95 mm including terminal blocks. You will find 845 discrete components on the main PCB assembly. These include a 16-bit microprocessor, analog I/O, and power supply circuits. The Woodward 9907-1183 weighs approximately 2.1 kilograms for industrial mounting.

Processor and Memory Configuration

The Woodward 9907-1183 houses a 16-bit microcontroller running at 40 MHz. This processor executes governing algorithms with 1 ms cycle times. The unit contains 512 KB of flash memory for firmware storage. It also includes 128 KB of battery-backed RAM for runtime parameters. A replaceable lithium battery preserves tuning constants during power loss. The controller does not use external memory cards.

Speed Sensing and Input Channels

This steam turbine control accepts two magnetic pickup speed sensor inputs. Each input channel includes a dedicated signal conditioner for noise rejection. The unit also provides four analog inputs for steam pressure and temperature. Furthermore, the module offers two RTD inputs for bearing temperature monitoring. All analog channels deliver 12-bit resolution for adequate precision.

Actuator Outputs and Valve Control

The Woodward 9907-1183 provides two proportional actuator output channels. Each channel delivers 0 to 200 mA for electro-hydraulic converter control. The unit also includes four discrete outputs for solenoid valves. Each discrete output switches 24 V DC at 500 mA maximum. A dedicated relay output indicates turbine trip status. Four status LEDs show power, run, alarm, and trip conditions.

Communication Ports and Configuration Access

This steam turbine control offers one RS-232 port for local programming. It also provides one RS-485 port for Modbus RTU to the DCS. Furthermore, the unit includes a dedicated magnetic pickup input for speed display. A 9-pin D-sub connector serves the actuator output interface. The control panel includes a 2-line alphanumeric display for real-time readings.

Energy Storage and Power Requirements

The Woodward 9907-1183 draws 450 mA from a 24 V DC power supply. An internal DC-DC converter generates all necessary logic voltages. The unit incorporates six 470 µF electrolytic capacitors for input filtering. Total stored energy reaches approximately 0.9 joules at nominal voltage. The controller dissipates 11 W of heat during normal turbine operation.

Installation and Tuning Notes

You must mount this control unit in a clean, dry panel enclosure. Always use shielded twisted-pair cable for magnetic pickup connections. Then, verify that the actuator output matches the valve driver requirements. The unit complies with API 611 general-purpose steam turbine standards. Regular battery replacement every two years prevents parameter loss during extended outages.
