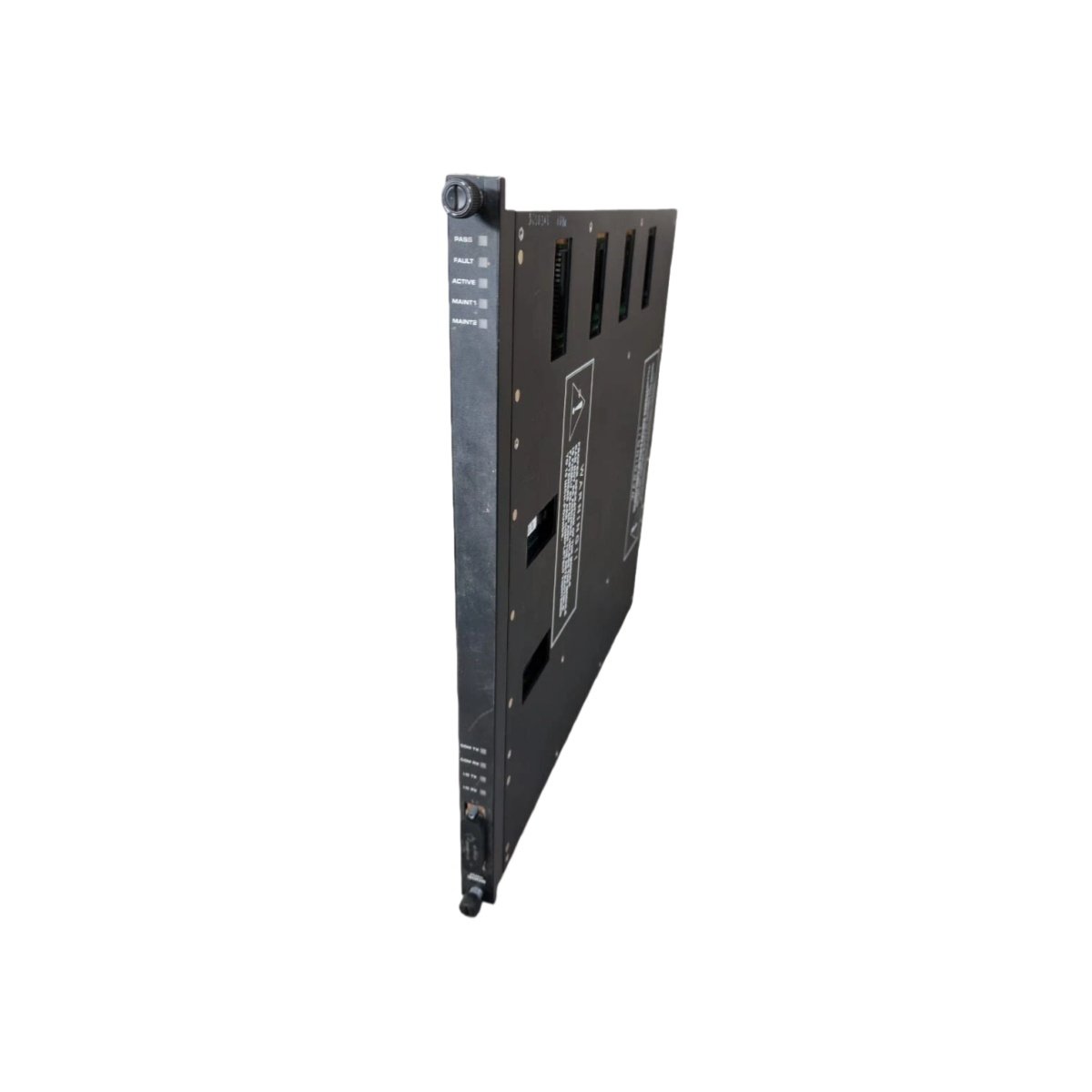

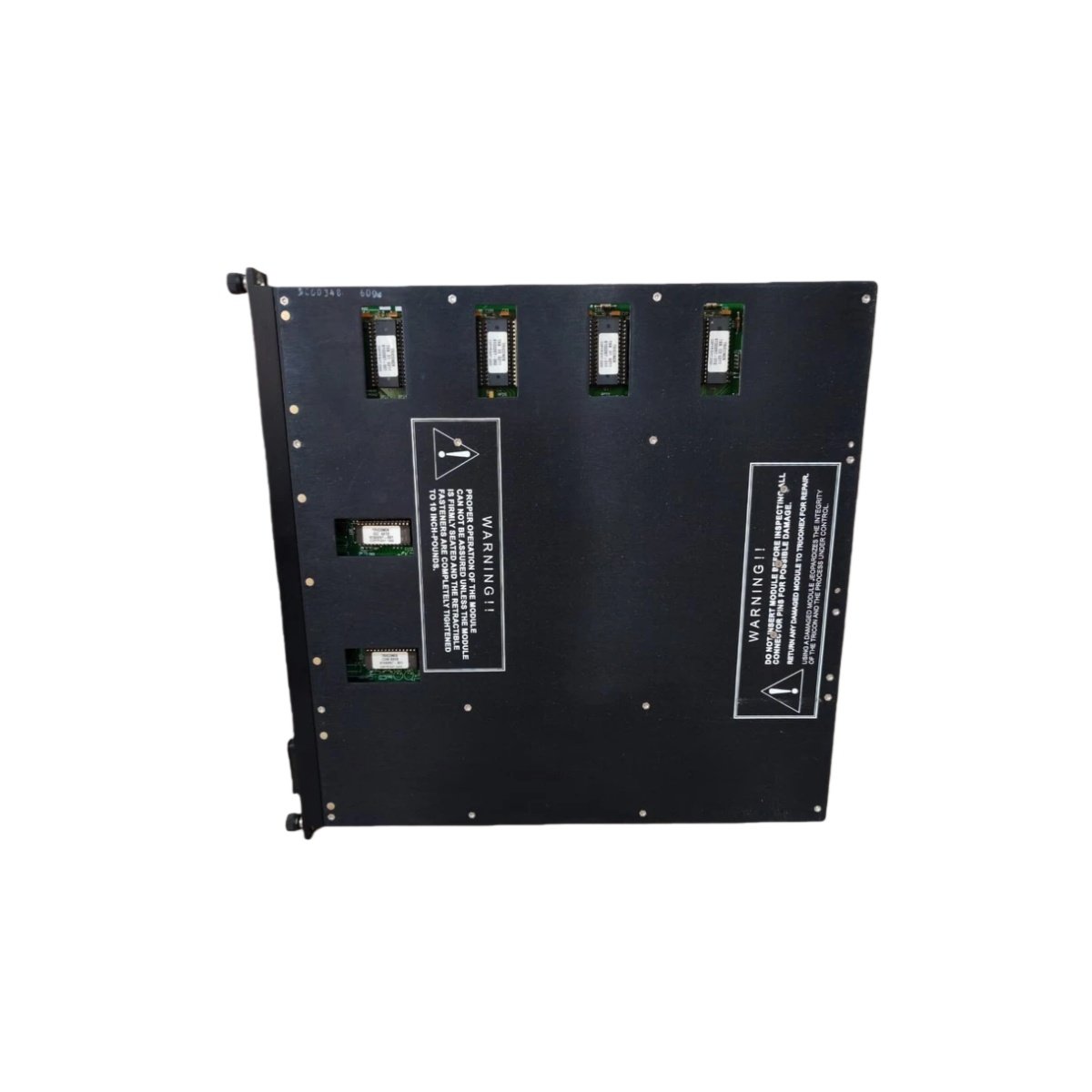

The Triconex EMPII 3006 main processor module serves as the central computing unit for the Triconex Tricon TMR safety instrumented systems . This module executes safety logic, manages I/O scanning, and coordinates communication across the system . Its triple-redundant architecture employs three independent 32-bit RISC processors operating in parallel . The module features 2 MB of battery-backed SRAM and 512 KB of Flash EEPROM for firmware storage . It communicates with I/O modules through the TriBus backplane at 4 Mbps . This processor supports up to 118 I/O modules within a single chassis configuration .

Functional Capabilities and Redundancy

The EMPII 3006 module actively executes the 2-out-of-3 voting logic for each I/O point . This TMR architecture ensures the system remains operational even if one processor channel fails. The module supports redundant configurations with two EMPII cards forming an active-standby pair . Its integral online diagnostics continuously monitor hardware and signal integrity . Furthermore, the battery-backed SRAM retains SOE records and configuration data during power interruptions.

Application Scenarios

This processor module suits critical safety applications in oil and gas refineries, chemical plants, and power generation facilities . It also supports burner management systems (BMS) and emergency shutdown (ESD) applications. The Triconex EMPII 3006 integrates with Tricon v9.0 to v9.5 firmware versions . Many facilities continue to rely on this legacy module for their Triconex-based safety instrumented systems.
