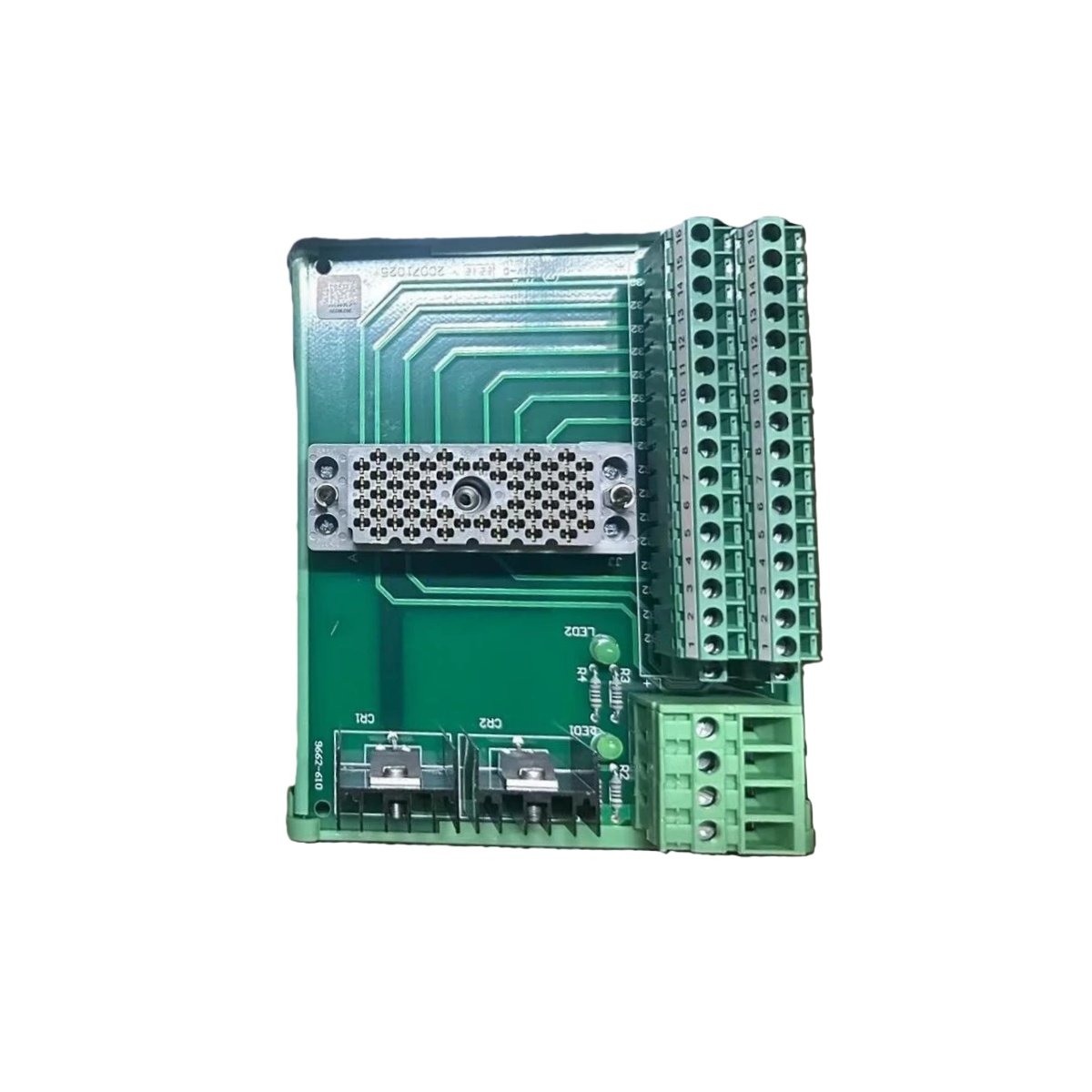

The Triconex 9662-610 provides a centralized interface for field device cabling. This termination board connects sensors and actuators to the Triconex I/O modules. It significantly simplifies wiring and maintenance procedures for plant personnel. You will achieve organized cable management within the control cabinet. This board plays a crucial role in the overall system reliability.
Physical Dimensions and Installation Profile
This termination board features a flat panel design for rack or panel mounting. Its physical dimensions are 332 mm in height, 56 mm in width, and 285 mm in depth. It weighs approximately 2.2 kilograms for stable installation. The operating temperature ranges from 0°C to +60°C. This range accommodates most industrial control room environments.
Connection Interface and Terminal Layout
The Triconex 9662-610 offers clearly labeled terminal blocks for field wiring. These blocks accept wire sizes up to 2.5 mm² for secure terminations. The board includes pre-assigned terminals for each I/O channel. This arrangement simplifies field cable identification and troubleshooting. The module also provides dedicated connections for power distribution. It routes field power to the associated I/O modules efficiently.
Signal Routing and Cabling Architecture
This termination board routes signals between field devices and processing modules. It uses clearly printed reference designations for every connection point. The Triconex 9662-610 supports both digital and analog signal types. It employs separate signal paths to prevent cross-talk and interference. The board’s design minimizes signal attenuation over cable runs.
Diagnostic and Monitoring Features
This board includes test points for each signal path on the PCB. Technicians can measure voltages and continuity without disconnecting wires. The Triconex 9662-610 provides status LEDs for power and communication. These indicators verify proper board operation at a glance. The board also incorporates termination resistors for fieldbus applications.
Component Architecture and Build Quality
The device contains approximately 200 discrete electronic components. Engineers use high-grade materials for the PCB substrate and connectors. The board surface receives a protective conformal coating for moisture resistance. This coating extends the product’s operational lifespan significantly.
Technical Specifications Summary
| Parameter | Specification |
|---|---|
| Dimensions (H × W × D) | 332 mm × 56 mm × 285 mm |
| Weight | Approx. 2.2 kg |
| Operating Temp | 0°C to +60°C |
| Wire Capacity | Up to 2.5 mm² |
| Signal Types | Digital and analog |
| Test Points | Yes, for each signal path |
| Status LEDs | Power and communication |
| Mounting | Rack or panel mount |
| Protection | Conformal coating |
| Components | Approx. 200 discrete parts |
System Integration and Maintenance Benefits
The Triconex 9662-610 enables quick module replacement without rewiring. Field wires remain terminated on the board during I/O changes. This feature reduces downtime and eliminates wiring errors significantly. The board’s standardized layout reduces training requirements for maintenance teams. You gain long-term operational efficiency from this termination solution.
Details
| Weight | 2.2 kg |
|---|---|
| Dimensions | 332 × 56 × 285 mm |
