Core Field Wiring Interface for Digital Input Modules

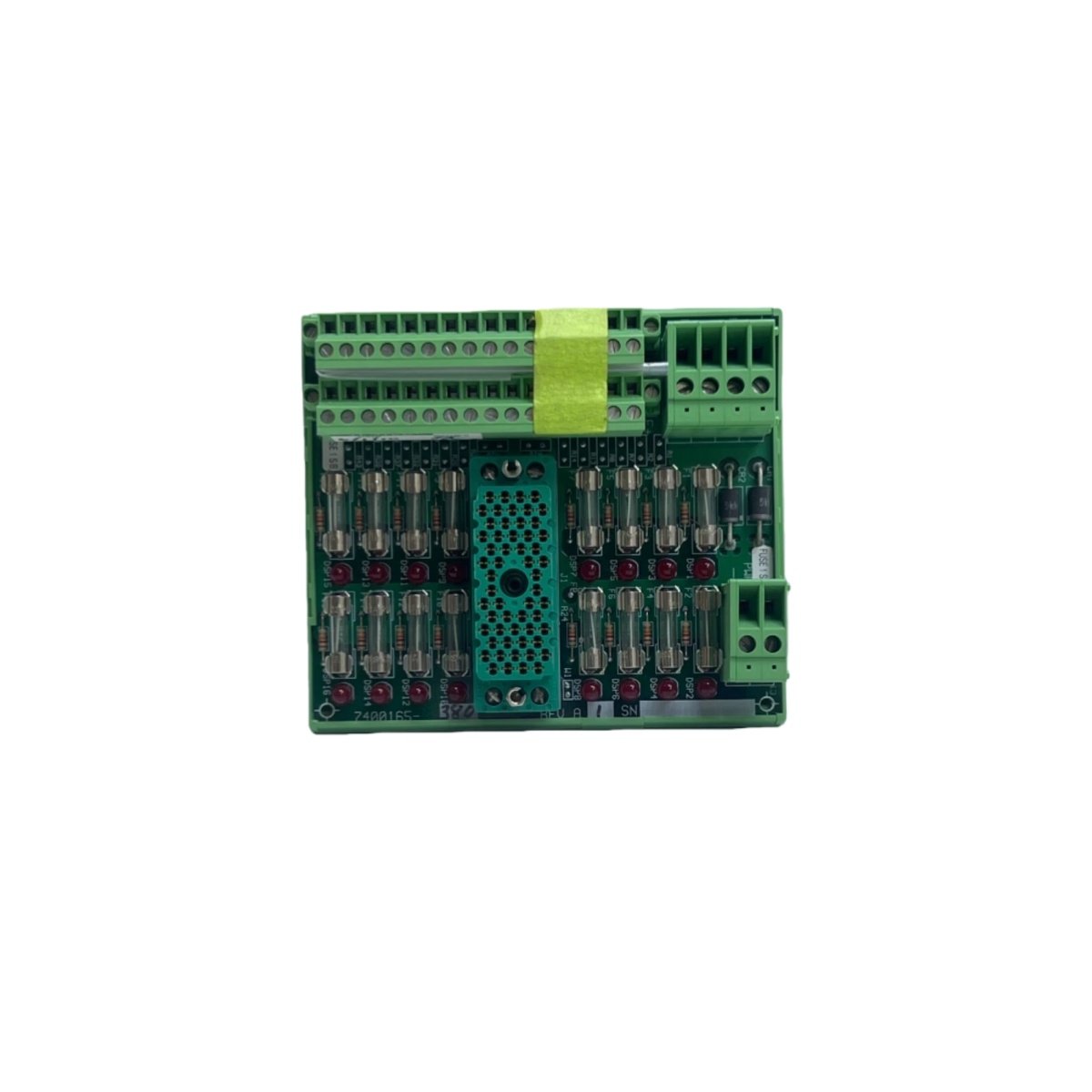

The Triconex 9563-810 is a Digital Input Termination Panel for the Tricon safety instrumented system . This panel provides a secure and organized interface for field wiring to connect digital field devices like switches, pushbuttons, and sensors to the digital input modules within the Triconex safety controller. It serves as a critical junction point, ensuring reliable signal transmission between the plant floor and the safety system logic solver. Consequently, it is an essential component for high-integrity safety instrumented functions (SIFs) in industries like oil & gas, chemical, and power generation .
Termination Panel Configuration and Design
This termination panel typically supports a commoned configuration, where each input channel shares a common return path, simplifying wiring for field devices with a common ground . It features clearly labeled screw-clamp terminal blocks for direct field wiring and connects to the Triconex digital input module via a dedicated ribbon cable assembly . Its robust design includes conformal coating to protect against moisture, dust, and chemicals in harsh industrial environments . Furthermore, the panel mounts onto a standard 35mm DIN rail for straightforward installation within the control cabinet.
Technical Specifications and Reliability
The 9563-810 operates with a nominal 24V DC voltage and features integral LED indicators for real-time channel status monitoring . The mean time between failures (MTBF) exceeds 500,000 hours under normal operating conditions . The following table details its key technical and physical parameters.
| Parameter | Specification |
|---|---|
| Manufacturer / Series | Triconex (Schneider Electric) / Tricon |
| Product Model | 9563-810 |
| Product Type | Digital Input Termination Panel |
| Input Points | 16 channels (commoned configuration) |
| Nominal Voltage | 24V DC |
| Mounting Type | 35mm DIN Rail |
| Connection | Ribbon cable assembly to I/O module |
| Status Indication | LED indicators per channel |
| Operating Temperature | 0°C to 60°C |
| Compliance | SIL 3 (IEC 61508) |
Application in Safety Instrumented Systems (SIS)
Engineers use this termination panel to interface field-mounted switches, sensors, and actuators with the Triconex safety controller. It simplifies the wiring process, reducing installation time compared to isolated configurations . The Triconex 9563-810 is a vital component for building reliable safety instrumented systems. Therefore, sourcing compatible replacement panels is crucial for lifecycle management of Triconex Tricon systems.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
