Technical Specifications and Power Delivery

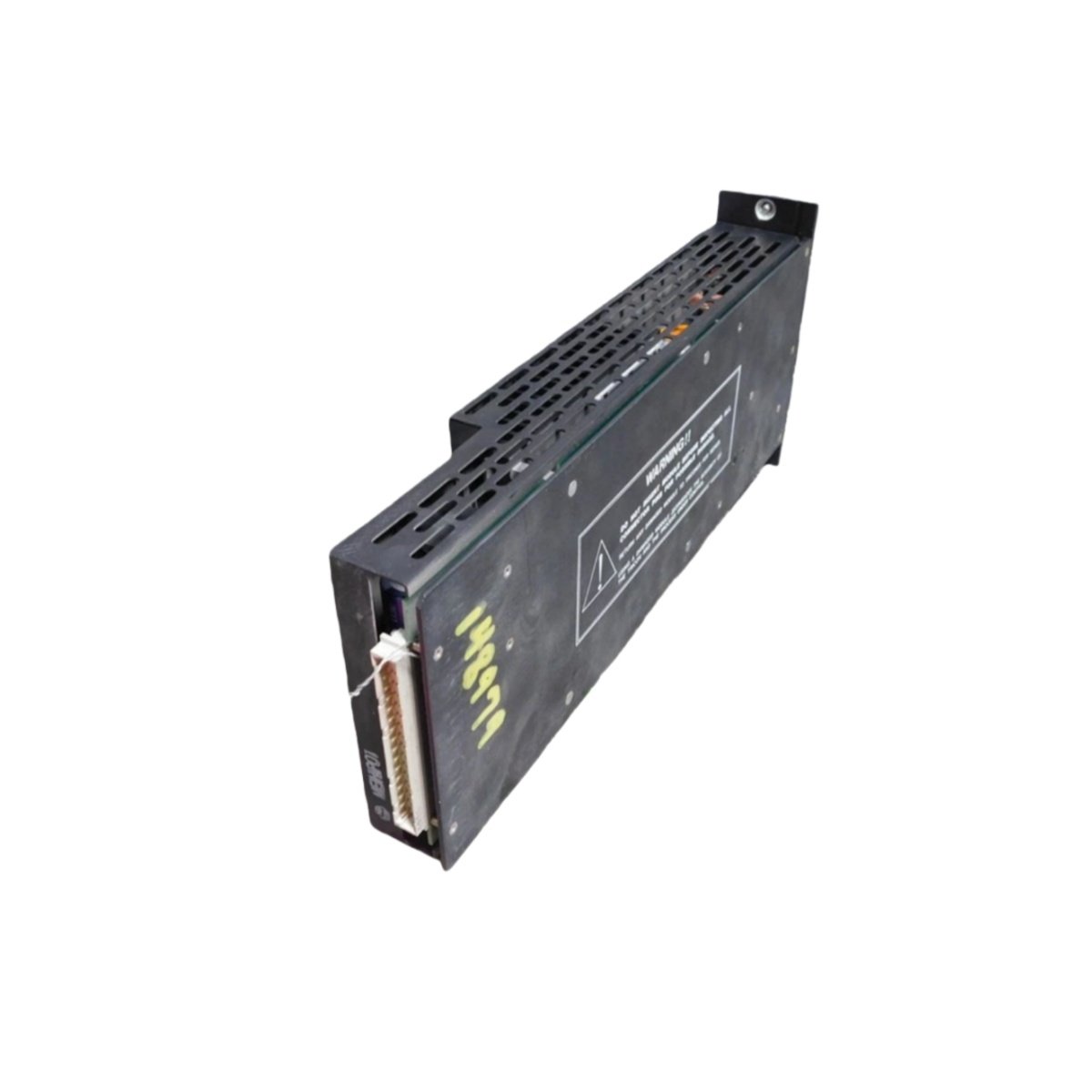

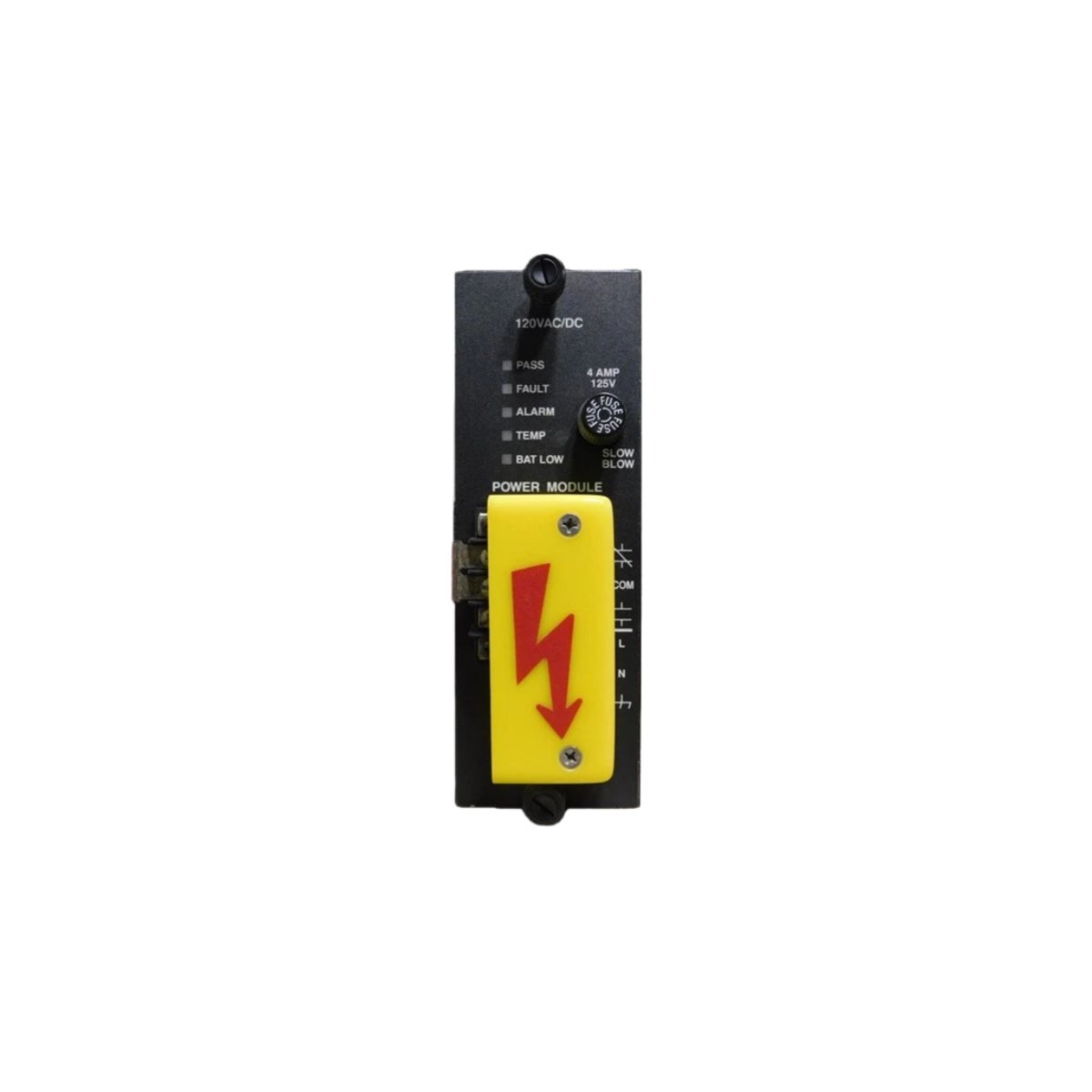

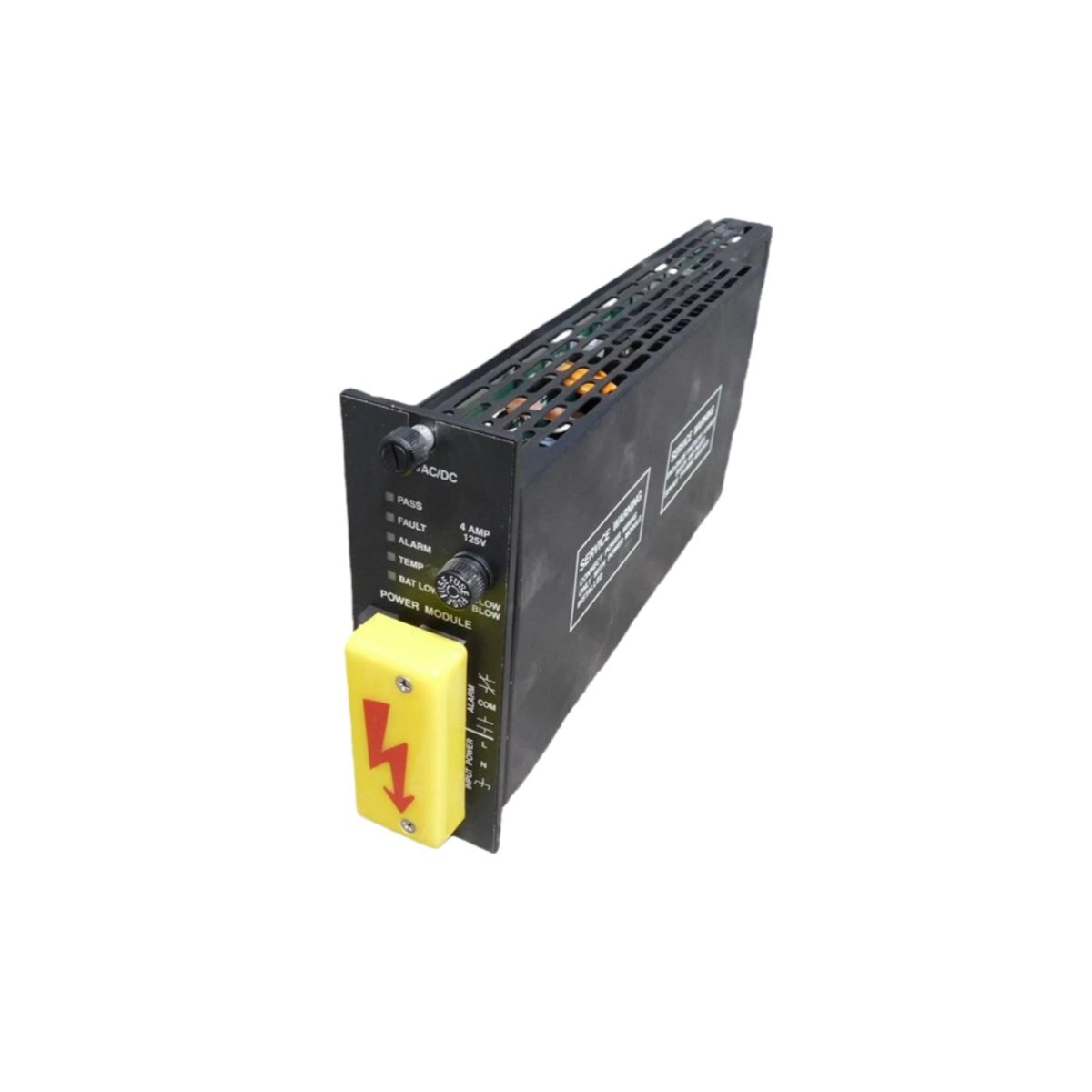

The Triconex 8300 power supply module provides reliable DC power for Triconex Tricon TMR safety instrumented systems. This module converts AC or DC input voltage into regulated DC outputs for the system backplane . It supports a wide input range of 100-240V AC or 88-300V DC, making it suitable for various industrial power environments . The module delivers 5V DC for logic circuits and 24V DC for auxiliary functions . Its dimensions are approximately 6.2 cm x 42 cm x 17.7 cm, and it weighs around 2.32 kg .
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model Number | 8300 / 8300A |
| Product Type | Power Supply Module |
| Architecture | TMR Safety System |
| Input Voltage | 100-240V AC or 88-300V DC |
| Output Voltages | 5V DC, 24V DC |
| Total Output Current | 10A maximum |
| Ripple Noise | <50mV peak-to-peak |
| Efficiency | >85% typical |
| Frequency | 50/60 Hz |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (W x H x D) | 6.2 x 42 x 17.7 cm |
| Weight | 2.32 kg |
| Mounting | 19-inch rack |
| Hot Swap Support | Yes (N+1 redundancy) |
| Safety Certification | SIL 3 (IEC 61508, IEC 61511) |
Functional Capabilities
The 8300 module provides dual redundant power inputs for increased system reliability . It features overvoltage and overcurrent protection to safeguard connected equipment . LED status indicators allow for straightforward monitoring of power and alarm conditions . Its high-efficiency design minimizes energy loss and heat generation . This module supports hot-swappable replacement for online maintenance without system disruption .
Application Scenarios
This power supply module suits critical safety applications in oil and gas, chemical processing, and power generation industries . It integrates with Tricon and Trident safety platforms and supports N+1 redundant configurations . The Triconex 8300 works alongside main processors and I/O subsystems to form a complete safety solution . Many facilities rely on this module for reliable power in their safety instrumented systems.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
