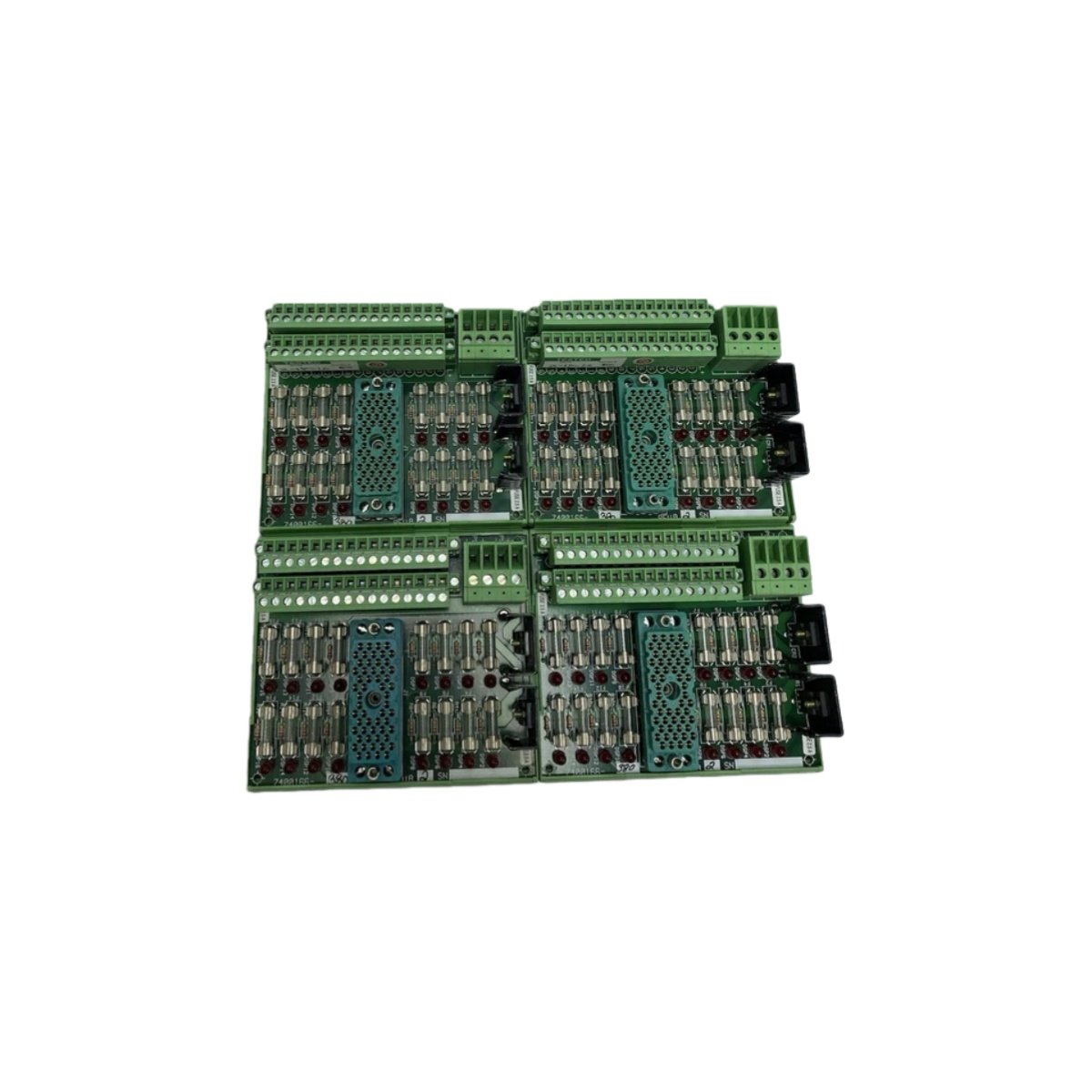

The Triconex 7400166-380 is a discontinued terminal panel module for the Triconex safety system. This module provides a robust interface for connecting I/O signals between field devices and the Triconex controller . It supports both analog and digital signals with channel isolation for reliable data transmission . Additionally, the module’s design includes noise suppression features for electrically noisy industrial environments .

Termination and Signal Distribution

This terminal panel module serves as a distribution hub for I/O terminations in Triconex systems. The Triconex 7400166-380 organizes wiring from field sensors and actuators to the main controller. It supports up to 64 configurable terminals, depending on the specific wiring configuration . The module handles digital inputs, digital outputs, analog inputs, and analog outputs . Furthermore, the module includes channel-to-channel isolation to prevent signal crosstalk.

Technical Specifications

Diagnostic Features and Monitoring

The Triconex 7400166-380 includes LED status indicators for easy system monitoring. These indicators display power status and fault detection for each channel. The module also provides diagnostic information to the main controller for proactive maintenance planning. Consequently, operators can quickly identify and resolve wiring or signal issues.

Application Areas

The Triconex 7400166-380 commonly appears in Safety Instrumented Systems (SIS) and Emergency Shutdown (ESD) applications . It serves process automation, fire and gas (F&G) systems, and turbine control applications. Although discontinued, this module remains compatible with legacy Triconex systems.

Details
