Redundant I/O Termination for Triconex Safety Instrumented Systems

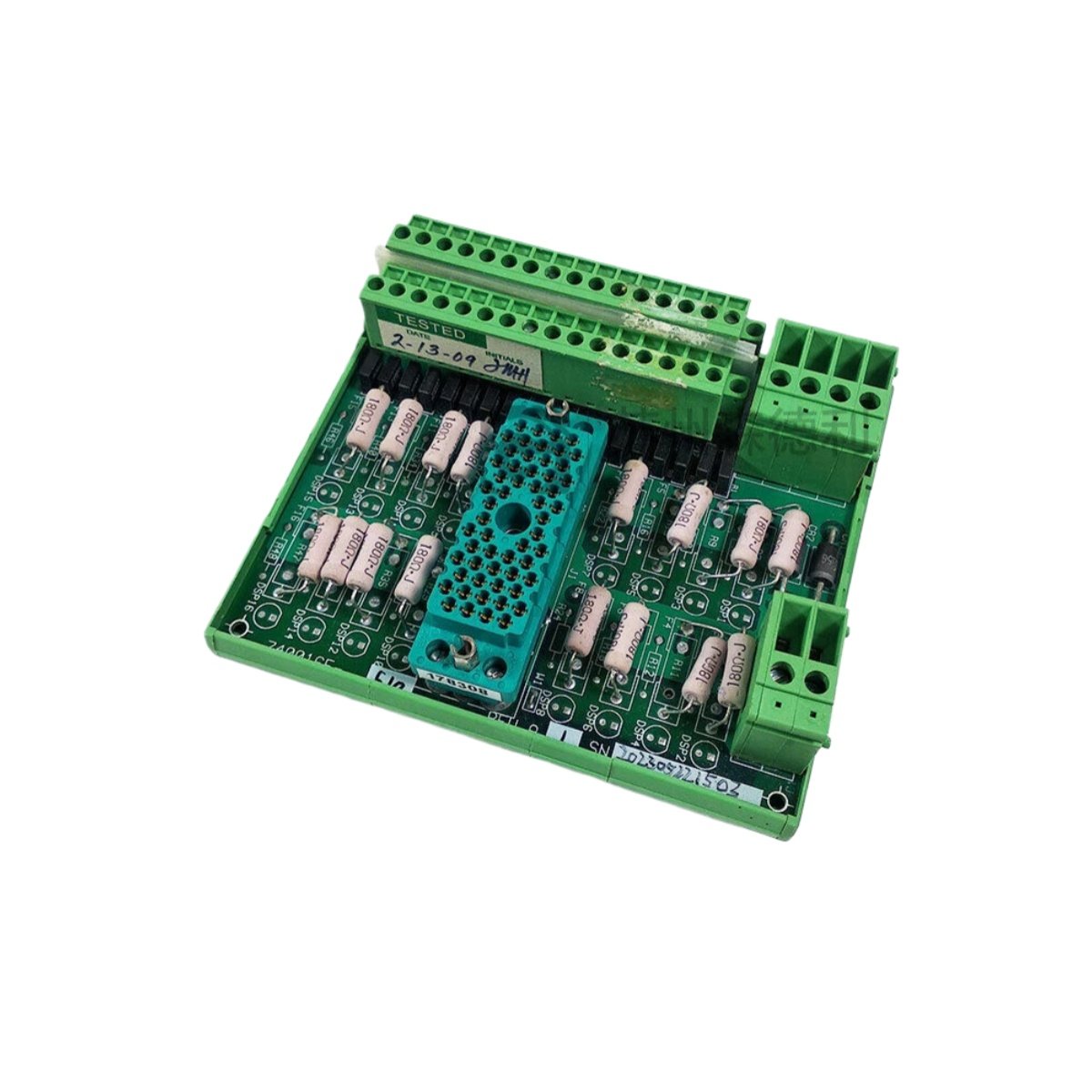

The 7400165-510 termination board provides a robust and organized wiring interface for Triconex Safety Instrumented Systems (SIS). This board ensures secure and reliable connections between the SIS controller and field sensors or actuators . It serves as the PFT (Panel Field Termination) module, a critical component for maintaining signal integrity in high-availability safety systems .
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex (Invensys) |
| Part Number | 7400165-510 |
| Alternate Reference | 3000510-510 |
| Product Type | Termination Board (Panel Field Termination) |
| Number of Channels | 8 |
| Input/Output Type | Isolated Analog & Digital |
| Signal Range | -250V to +250V, 4-20mA, 0-10V |
| Accuracy | ±0.1% |
| Response Time | 1 ms (digital) to <10 ms (analog) |
| Voltage Capacity | 60 VDC max / 300 V rated |
| Current Rating | 1.2A continuous |
| Terminal Style | Barrier screw-type |
| Power Requirements | 24 VDC |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +125°C |
| Dimensions | 114.3 x 127 x 108 mm or 259 x 160 x 79 mm |
| Weight | 300g – 1kg |
| Safety Certification | SIL 3, IEC 61508 |
| Origin | USA |
Redundancy and High Availability Features
The 7400165-510 termination board incorporates a dual-redundant architecture to support fault-tolerant operations . It provides two independent processing paths for each I/O channel, ensuring continued operation even during a component failure. Consequently, this design achieves the high availability required for critical safety loops. The board also includes built-in diagnostics for early fault detection .
Physical Characteristics and Installation
The 7400165-510 features a rugged design with barrier terminals that prevent short circuits and withstand vibration . Clear terminal numbering simplifies wiring and reduces installation errors . This board mounts directly onto a panel or enclosure using standard industrial hardware . Furthermore, the modular construction supports easy scalability for expanding systems .
Typical Applications
This termination board is specifically designed for mission-critical environments requiring high safety integrity. Typical applications include emergency shutdown systems, burner management, and fire & gas detection . The 7400165-510 is also extensively used in chemical plants, oil & gas refineries, and power generation facilities . Its robust construction guarantees stable performance under extreme environmental stress.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
