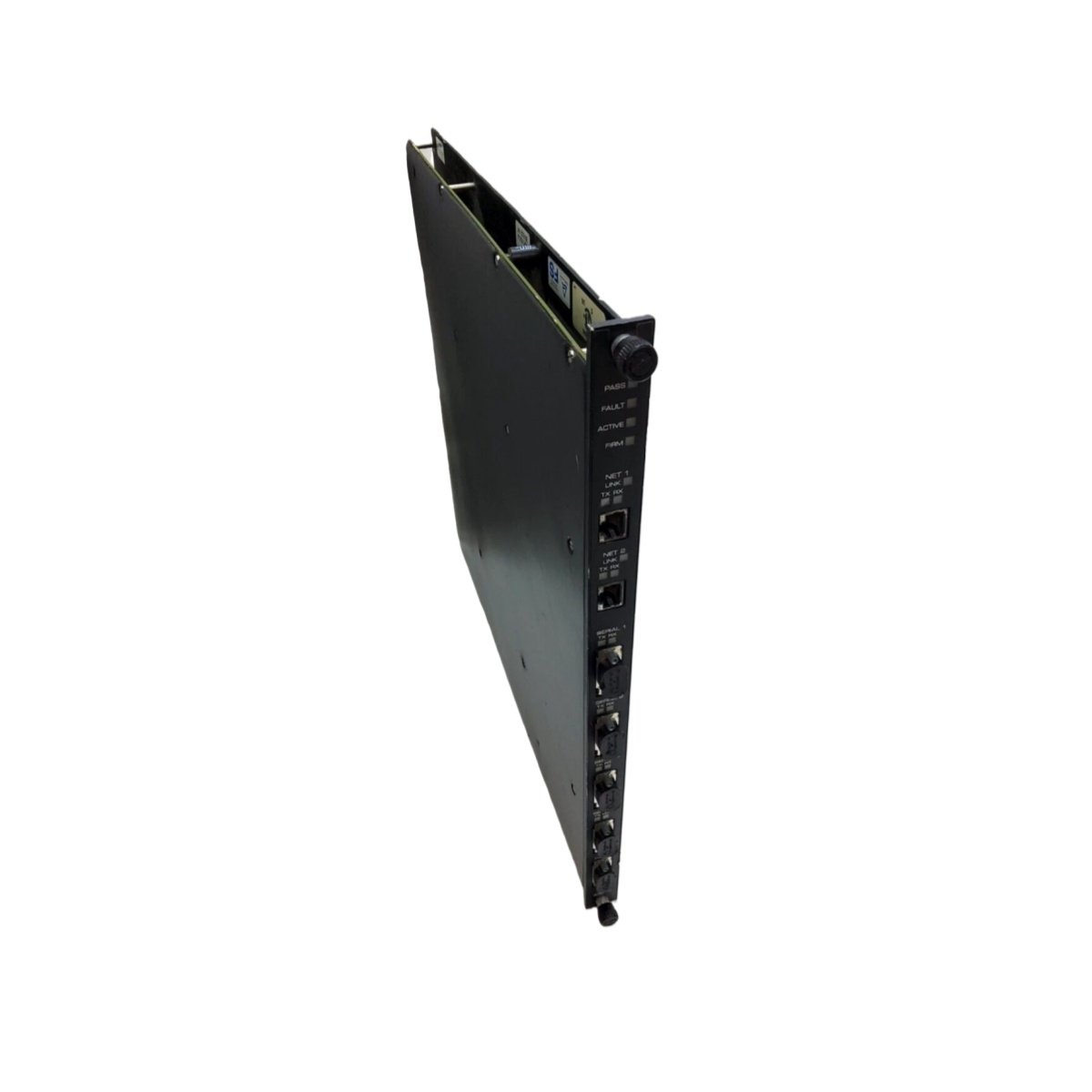

The Triconex 4354 enables high-speed data exchange between control system components. This communication module links the Triconex main processor with remote I/O chassis. It facilitates seamless integration with plant-wide supervisory control systems. You will achieve reliable data transfer for critical safety applications. This module supports both redundant and non-redundant communication topologies.

Physical Dimensions and Mounting Specifications

This communication module uses a sturdy chassis for standard rack installation. Its physical dimensions are 310 mm in height, 45 mm in width, and 280 mm in depth. It weighs approximately 2.0 kilograms for stable mounting. The operating temperature ranges from 0°C to +60°C. This thermal range supports control room and shelter installations.

Communication Interfaces and Protocol Support

The Triconex 4354 provides multiple communication ports for flexible connectivity. It features two Ethernet ports for TCP/IP-based network communications. Additional serial ports support RS-232, RS-422, and RS-485 connections. The module supports Modbus, DNP3, and proprietary Triconex protocols. This variety ensures compatibility with legacy and modern control systems.

Data Transfer Capacity and Throughput

This communication module handles up to 10 Mbps data transfer rates. It processes thousands of data points per second efficiently. The Triconex 4354 includes configurable data buffers for message queuing. These buffers manage peak traffic loads without losing packets. The module performs cyclical redundancy checks for data integrity.

Diagnostic Features and Status Monitoring

This module incorporates comprehensive diagnostics for network health monitoring. It detects communication errors and retransmits corrupted packets automatically. The Triconex 4354 provides LED indicators for link status and activity. These indicators display active connections and data traffic at a glance. The module also logs communication events for troubleshooting purposes.

Component Architecture and Build Quality

The device contains approximately 95 discrete electronic components. Engineers design the circuit for optimal signal integrity and noise immunity. The PCB features isolation barriers between communication and logic circuits. These barriers prevent ground loops from affecting data transmission.

Technical Specifications Summary

Integration with Safety Systems

The Triconex 4354 maintains deterministic performance for safety messages. It prioritizes safety-related data over standard process information. This ensures critical alarms reach the controller without delay. The module supports redundant communication paths for fault tolerance. You depend on this module for reliable safety system communication.
