Technical Specifications and Communication Features

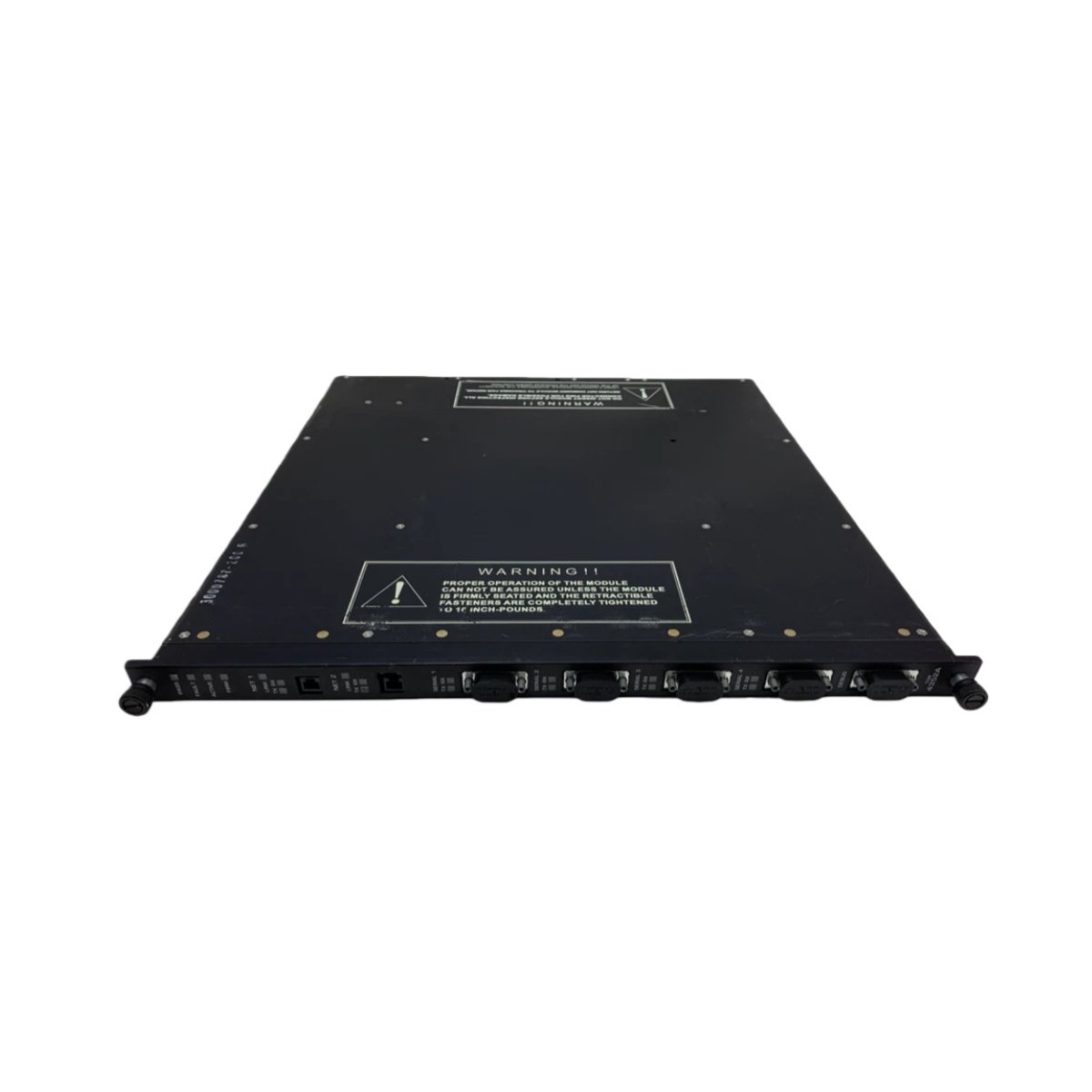

The Triconex 4352A communication module belongs to the Triconex TMR safety instrumented systems family . This module provides advanced communication capabilities for connecting the Tricon system to external devices . It supports Modbus TCP/IP and Ethernet/IP protocols for flexible network integration . The module measures approximately 264 mm x 290 mm x 102 mm and weighs about 3.0 kg . It connects to the system through the Triconex backplane bus interface.
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex (Schneider Electric / Invensys) |
| Model Number | 4352A |
| Product Type | Communication Module |
| Architecture | Triple Modular Redundancy (TMR) |
| Communication Protocols | Modbus TCP/IP, Ethernet/IP |
| Physical Interface | RJ45 Ethernet (copper) |
| Power Supply | 24V DC (18-32V DC range) |
| Power Consumption | ≤30W typical |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W x H x D) | 264 x 290 x 102 mm (10.40 x 11.40 x 4.00 in) |
| Weight | 3.0 kg (6.6 lbs) |
| Humidity Tolerance | Up to 95% non-condensing |
| Safety Certification | SIL 3 (IEC 61508, IEC 61511) |
| Hot Swap Support | Yes |
Functional Capabilities
The 4352A module enables seamless data exchange between the Tricon system and supervisory control systems . It supports remote diagnostics and system monitoring for enhanced operational visibility . This module also facilitates configuration management and program uploads via Ethernet connections . Its TMR architecture ensures continuous communication availability for uninterrupted process control. The robust design withstands harsh industrial environments effectively.
Application Scenarios
This communication module suits applications requiring integration of the Tricon system with other control systems . It connects with SCADA systems and DCS platforms in various industries. The Triconex 4352A also supports plant-wide data reporting and enterprise-level integration . Many facilities rely on this module for secure and reliable communication in critical safety applications .
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
