Extend Safety I/O with Fiber-Optic Redundancy

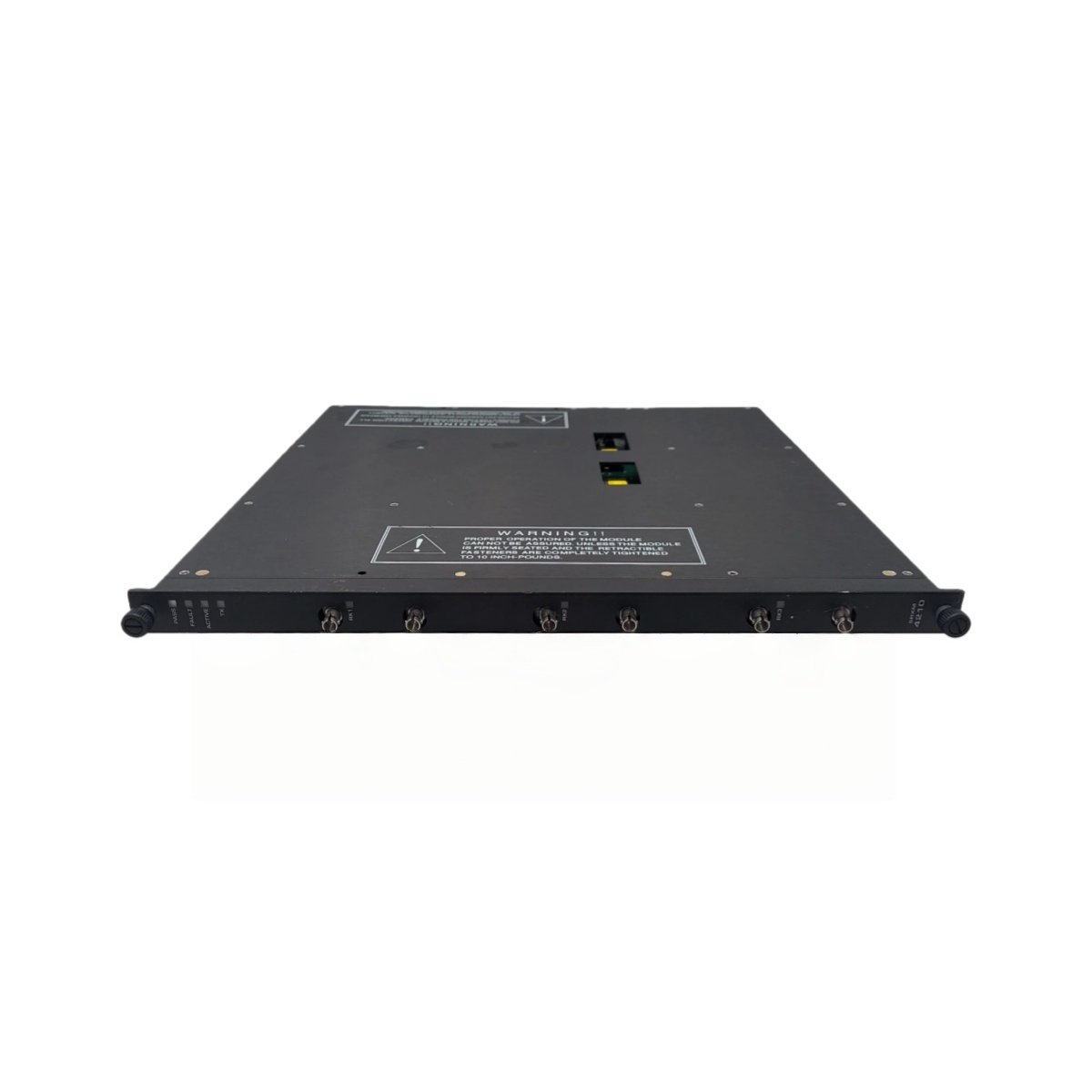

The Triconex 4210 remote extender module enables long-distance I/O expansion for Tricon safety systems. It uses redundant fiber-optic links to connect remote chassis to the main controller. This module maintains TMR (Triple Modular Redundancy) synchronization across extended distances. It eliminates electrical noise issues through complete fiber-optic isolation. The module supports up to three remote I/O sites from a single primary chassis. Therefore, it provides a scalable solution for geographically distributed process control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Remote Extender Module (RXM) |
| Communication Medium | Single-mode fiber optic |
| Maximum Transmission Distance | 12 km (7.5 miles) |
| Supported Remote Sites | Up to 3 remote I/O chassis |
| Fiber Connectors | ST type, 6 per remote site |
| Diagnostic LEDs | PASS, FAIL, ACTIVE, TX, RX1, RX2, RX3 |
| Power Supply | 24 VDC with dual redundant support |
| Power Consumption | Approximately 5 W |
| Operating Temperature | -40°C to +85°C |
| Weight | Approximately 1.26 kg to 1.96 kg (varies by configuration) |
| Safety Certification | IEC 61508 SIL 3, TÜV certified |
| Dimensions (approx.) | 2.1 x 40.8 x 39.8 cm or 241.3 x 24.4 x 241.8 mm |
Redundant Architecture for SIL 3 Compliance
The Triconex 4210 uses dual fiber-optic links for fault-tolerant communication. A single link failure will not interrupt data transmission to the remote chassis. This redundancy supports the TMR architecture’s rigorous voting requirements. The module’s design ensures seamless failover during maintenance or unexpected events. Consequently, the remote expansion maintains the same SIL 3 integrity as the main controller.
Diagnostic Intelligence and Environmental Tolerance
The front panel provides comprehensive diagnostic LEDs for rapid troubleshooting. These indicators display power, communication activity, and link health. The wide operating temperature range ensures deployment in extreme industrial environments. This combination of diagnostics and ruggedness reduces unplanned downtime.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
