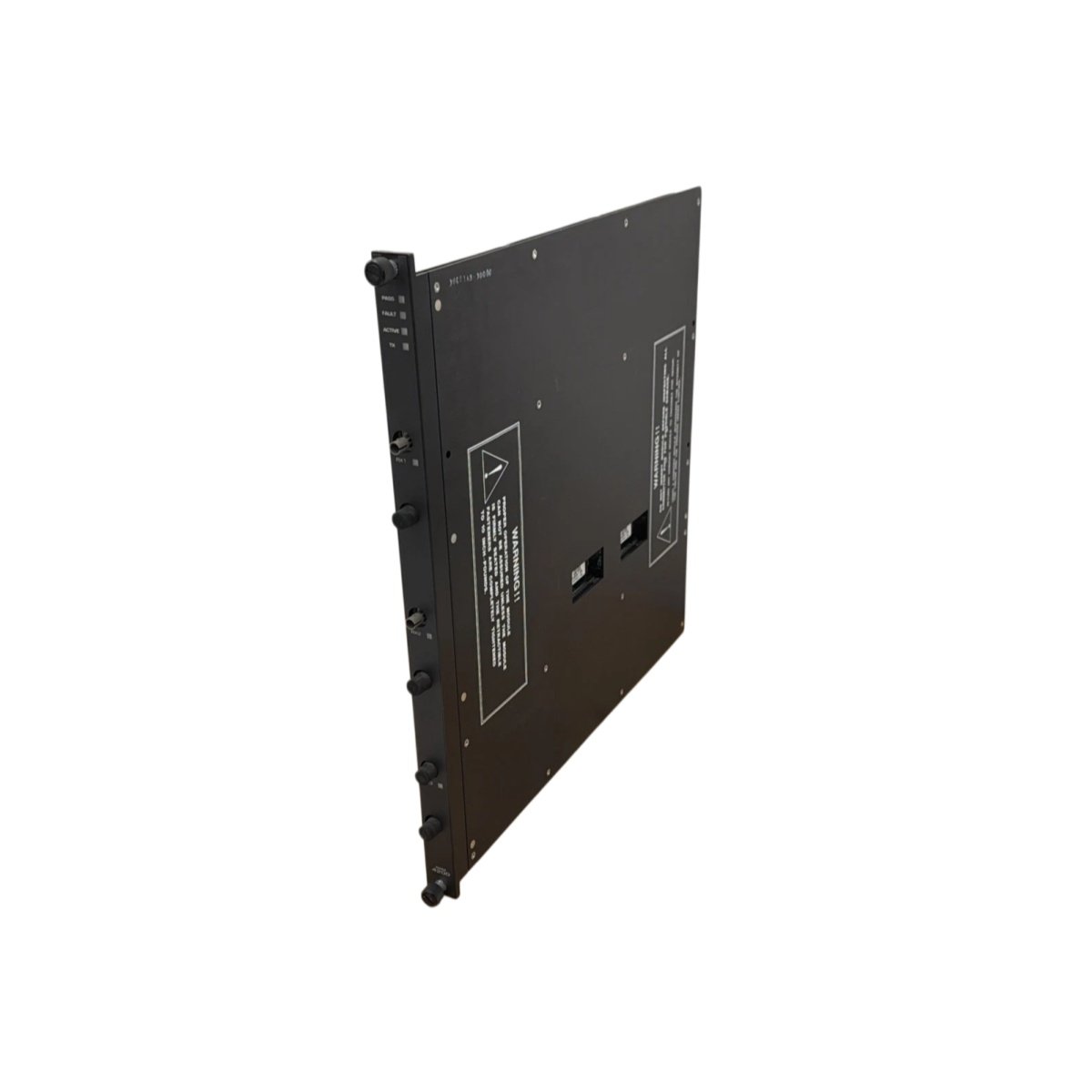

The Triconex 4200 RXM enables high-speed communication over fiber optic cables. This remote module connects distant I/O chassis to the main control system. It transmits data reliably across long distances without electrical interference. You will achieve secure and noise-immune communication with this module. This unit supports the Triconex Triple Modular Redundant architecture for safety systems.

Physical Dimensions and Mounting Specifications

This fiber optic module features a compact housing for standard rack mounting. Its physical dimensions are 310 mm in height, 30 mm in width, and 280 mm in depth. It weighs approximately 1.8 kilograms for straightforward installation. The operating temperature ranges from 0°C to +60°C. This thermal range supports most industrial control room environments.

Fiber Optic Interfaces and Transmission Specifications

The Triconex 4200 RXM provides dual fiber optic ports for redundant communication paths. Each port supports multi-mode fiber optic cable connections. The module transmits data at speeds up to 10 Mbps over distances up to 2 kilometers. This long-range capability suits distributed plant layouts effectively. The module uses standard ST connectors for easy field termination.

Communication Protocol and Data Handling

This module processes data using the proprietary Triconex communication protocol. It maintains synchronization with the main processor continuously. The Triconex 4200 RXM performs error checking and automatic retransmission when needed. It buffers data during temporary communication interruptions. The module also prioritizes safety-critical messages over routine data.

Diagnostic and Status Monitoring Features

The module provides comprehensive diagnostic capabilities for link quality assessment. It monitors optical signal strength and bit error rates continuously. The Triconex 4200 RXM offers LED indicators for link status and activity. These LEDs show active connections and data transmission instantly. The module logs communication events for troubleshooting purposes.

Component Architecture and Build Quality

The device contains approximately 100 discrete electronic components. Engineers select high-quality optical transceivers for reliable performance. The PCB includes isolation barriers for electrical safety. This design ensures dependable operation in industrial environments.

Technical Specifications Summary

System Integration and Safety Performance

The Triconex 4200 RXM supports SIL 3-rated communication for safety applications. It maintains deterministic data transfer for critical control functions. The module provides electrical isolation between remote sites. You rely on this module for safe and reliable remote I/O communication.
