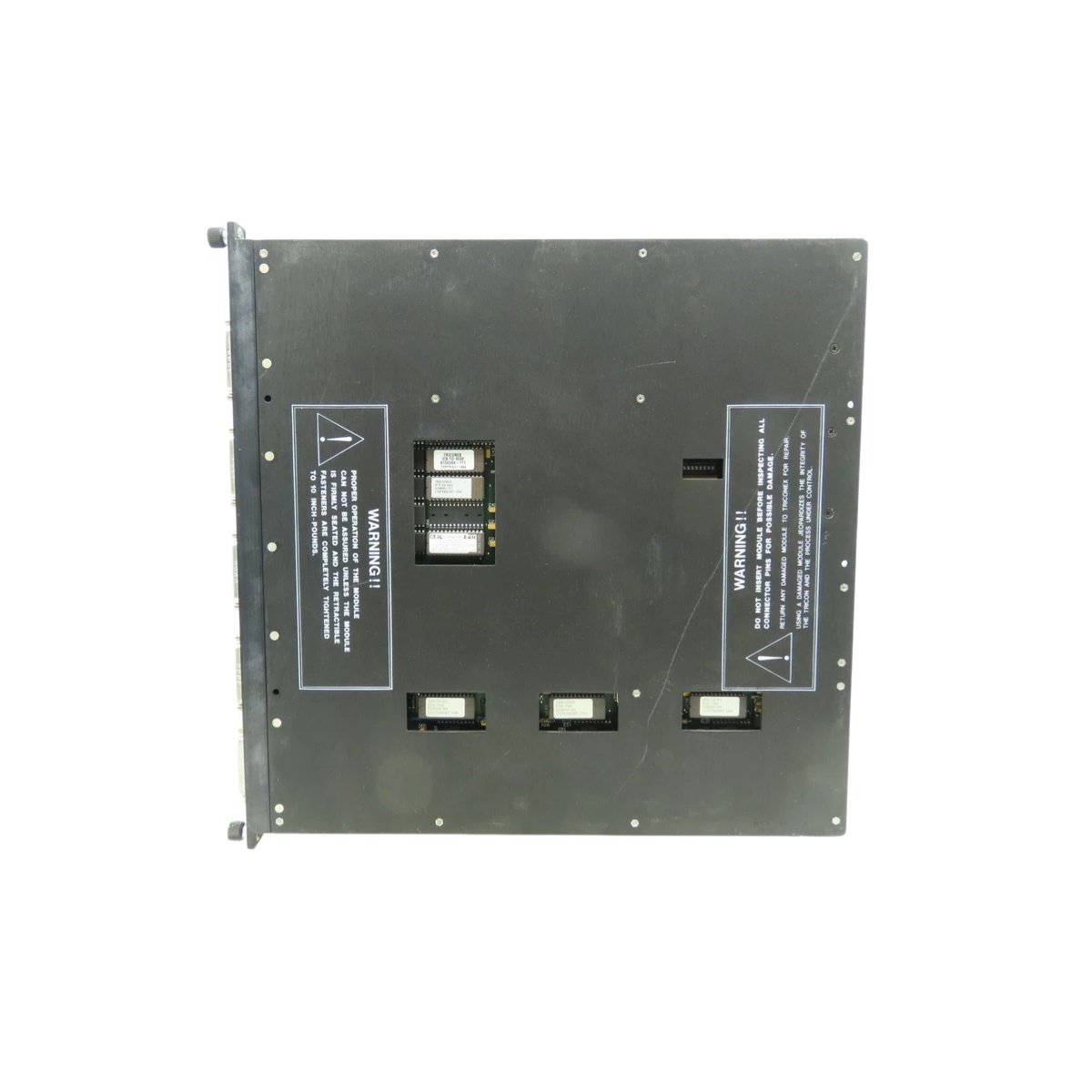

The Triconex 4101 facilitates reliable data exchange between control system nodes. This communication module connects the main processor to remote field devices. It ensures seamless information flow in distributed control architectures. You will achieve robust communication for safety-critical applications. This module forms a vital link in the Triconex ecosystem.

Physical Dimensions and Mounting Specifications

This module comes in a robust metal housing for standard rack installations. Its physical dimensions are 310 mm in height, 25 mm in width, and 280 mm in depth. It weighs approximately 1.8 kilograms for secure mounting. The operating temperature ranges from 0°C to +60°C. This range ensures reliable performance in typical control room settings.

Communication Interfaces and Supported Protocols

The Triconex 4101 offers versatile connectivity options for diverse applications. It provides serial communication ports for legacy device integration. Additional ports support high-speed network connections for modern systems. The module handles Modbus and proprietary Triconex communication protocols. It also supports peer-to-peer communication between multiple system nodes.

Data Handling and Message Processing

This communication module processes data frames with minimal latency. It manages message queuing and prioritization for time-sensitive packets. The Triconex 4101 includes error detection and correction algorithms for data integrity. It automatically retransmits corrupted packets when necessary. The module buffers incoming messages during peak network traffic periods.

Diagnostic and Status Indication

This module features comprehensive self-diagnostic routines at startup and runtime. It continuously monitors communication health and link quality. The Triconex 4101 provides status LEDs for power and activity indicators. These LEDs show network connection status and data flow at a glance. The module logs diagnostic data for maintenance and troubleshooting purposes.

Component Architecture and Build Quality

The device contains approximately 85 discrete electronic components. Engineers select high-reliability components for long service life. The PCB uses isolation technology to prevent ground loop interference. This isolation protects both the module and connected equipment.

Technical Specifications Summary

Integration and System Reliability

The Triconex 4101 ensures deterministic communication for safety-related data. It prioritizes critical messages over routine information transmission. The module supports redundant communication paths for increased system availability. You can rely on this module for uninterrupted operations.
