Reliable I/O Bus Connection for Tricon Safety Systems

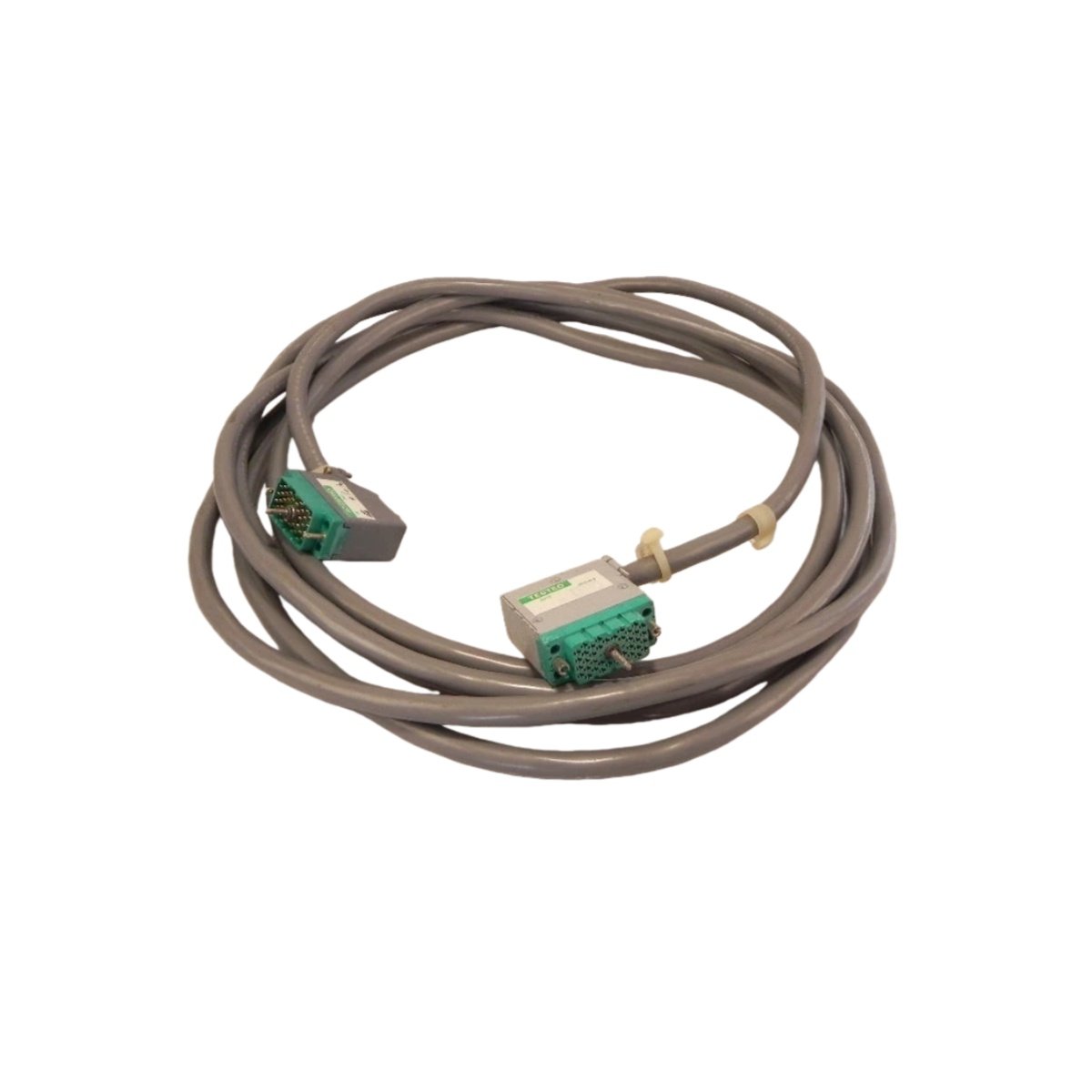

The Triconex 4000094-320 cable assembly provides a shielded connection between Tricon I/O modules and their termination panels . This cable ensures reliable data transmission for critical safety applications. Its rugged construction suits demanding industrial environments with extreme temperatures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex |
| Model | 4000094-320 |
| Product Type | Cable Assembly / I/O Bus Cable |
| Cable Length | 1 meter |
| Connector Type | Male DB-37 on one end, female DB-37 on the other |
| Shielding | Braided and foil shield |
| Conductor Gauge | 20 AWG |
| Max Current Capacity | 3A |
| Impedance | 90 Ohms |
| Voltage Rating | 700V |
| Operating Temperature | -40°C to +90°C |
| Weight | Approx. 0.36 kg |
Robust Shielding for Signal Integrity
The Triconex 4000094-320 features both braided and foil shielding to protect signals from electrical noise and interference . This dual-shielding design ensures clean data transmission even in electrically harsh factory environments. The cable maintains 90 Ohm impedance for stable communication .
Durable Construction for Harsh Environments
This cable assembly operates reliably across a wide temperature range from -40°C to +90°C . Its rugged construction resists mechanical stress and abrasion in demanding industrial settings. The 20 AWG conductors support up to 3A current capacity for robust signal transmission .
Simple Installation and Integration
The 4000094-320 connects directly to Tricon I/O modules and termination panels using standard DB-37 connectors . The 1-meter length provides adequate reach for adjacent rack connections. This cable supports straightforward routing and maintenance in control cabinets.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
