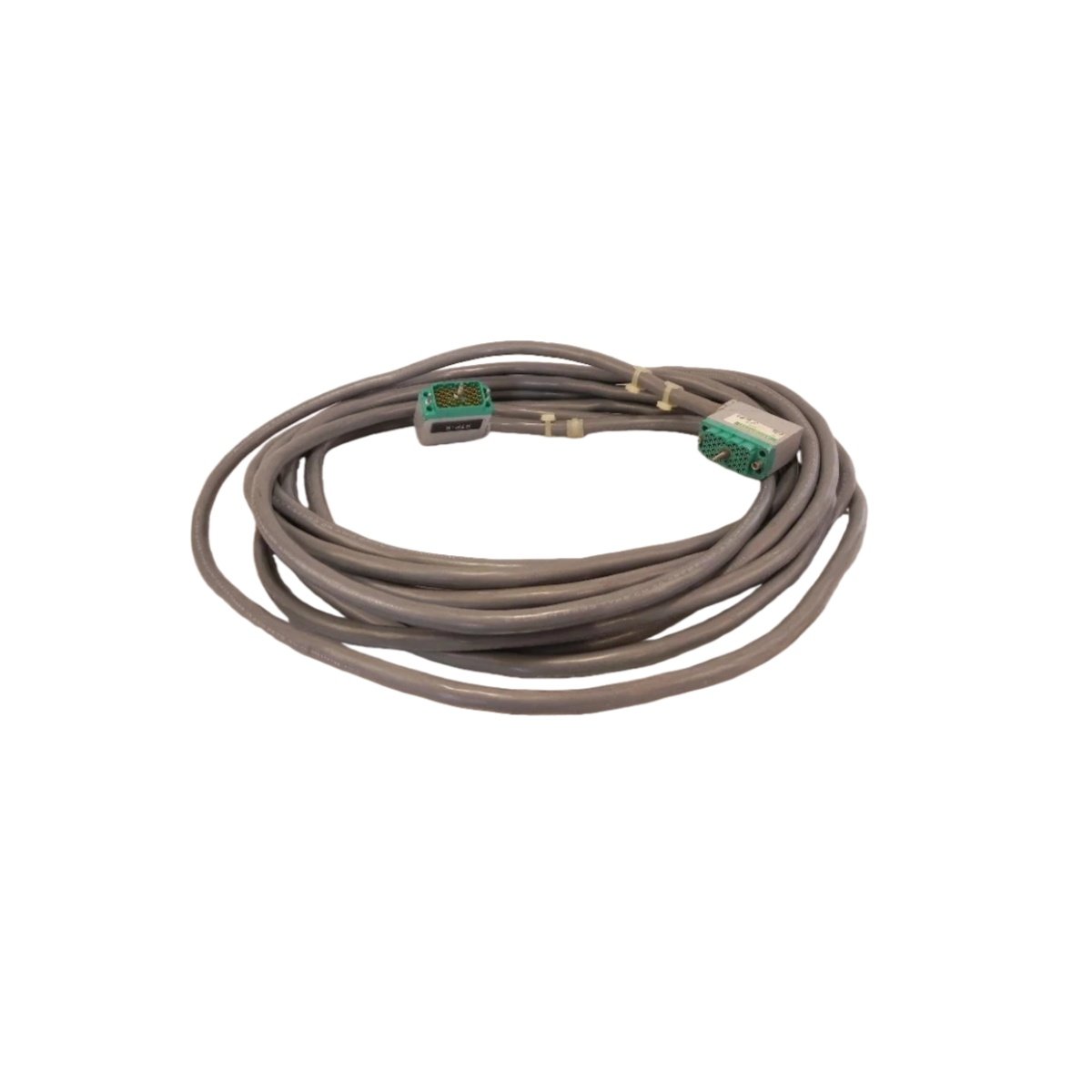

The Triconex 4000043-332 provides a reliable interconnection solution for system components. This cable assembly links I/O modules with termination panels and field devices. It ensures secure signal transmission across the control system. You will achieve consistent electrical performance with this pre-assembled cable. This assembly simplifies installation and reduces wiring errors significantly.

Physical Dimensions and Cable Construction

This cable assembly features a durable outer jacket for industrial environments. It measures approximately 2.5 meters in total length for flexible routing. The cable diameter reaches 8.5 mm for robust mechanical strength. It weighs approximately 0.5 kilograms for easy handling during installation. The operating temperature ranges from -20°C to +80°C. This wide range supports installation in various plant conditions.

Connector Specifications and Interface Details

The Triconex 4000043-332 utilizes a 50-pin D-sub connector at each end. These connectors feature gold-plated contacts for reliable signal transfer. The cable includes a shielded construction to prevent electromagnetic interference. This shielding maintains signal integrity in electrically noisy environments. The connectors provide positive locking mechanisms for secure terminations.

Wire Configuration and Signal Routing

This assembly contains 50 individual conductors for parallel signal transmission. Each conductor uses 28 AWG stranded wire for flexibility. The Triconex 4000043-332 follows a standardized pin-to-pin wiring configuration. This standardization ensures compatibility with all Triconex modules. The cable includes identification markers for each conductor at both ends.

Diagnostic and Testing Features

The cable assembly undergoes comprehensive factory testing before shipment. It includes continuity and insulation resistance verification on all conductors. The Triconex 4000043-332 features test points for field troubleshooting. Technicians can verify signal integrity without disconnecting the cable. The assembly also includes strain relief boots at each connector.

Component Composition and Build Quality

The assembly contains approximately 60 discrete components including connectors and wire terminations. Engineers use high-quality materials for the cable jacket and insulation. The connectors feature metal shells for additional shielding. This construction ensures long service life in demanding industrial applications.

Technical Specifications Summary

Installation and System Integration Benefits

The Triconex 4000043-332 enables quick and accurate module-to-termination connections. It eliminates the need for custom cable fabrication on site. This assembly reduces installation time significantly. You gain reliable signal transmission from this pre-tested cable solution.
