High-Integrity Interconnect for Tricon Safety Systems

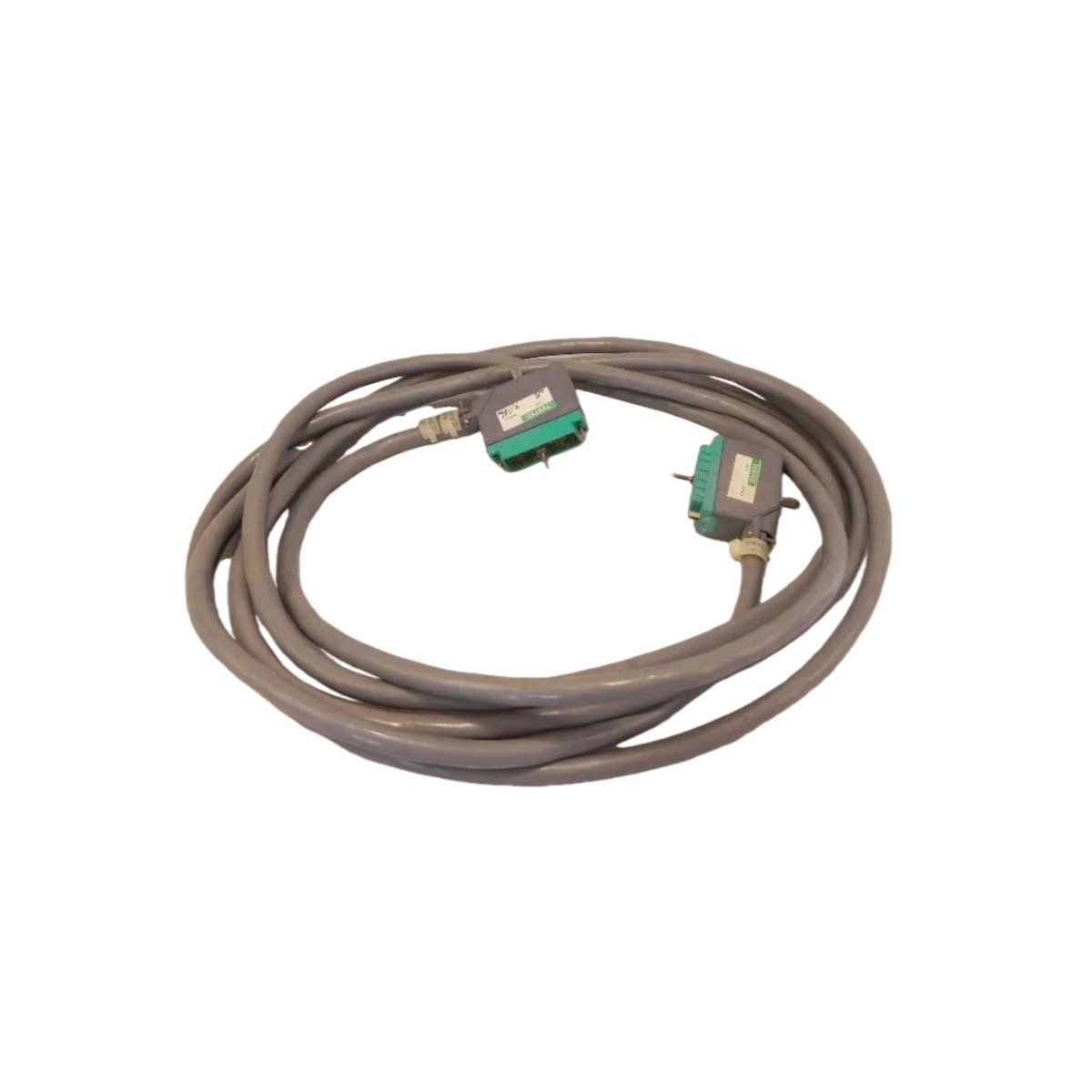

The Triconex 4000042-320 cable assembly provides a vital communication link within the Tricon safety instrumented system. This assembly supports the TMR (Triple Modular Redundancy) architecture’s need for reliable data transmission. It connects the main chassis to expansion chassis via the RS-485 I/O bus ports . The cable carries triplicated serial communication signals at 375 kilobits per second . This data rate matches the internal I/O bus speed of the chassis backplane. Consequently, the assembly maintains synchronisation across the entire system.

Technical Specifications

Functional Role in System Expansion

The Triconex 4000042-320 enables communication between the main chassis and up to 14 expansion chassis . Each expansion chassis requires one set of three I/O bus cables . This cable assembly carries the triplicated data streams that enable the system’s 2-out-of-3 voting mechanism. It supports chassis-to-chassis expansion where copper cables are suitable for the distance . For longer distances, the system would use RXM chassis with fiber-optic cables . The assembly ensures fault-tolerant communication across the system.

Physical Design and Environmental Suitability

The cable’s construction prioritises signal integrity in industrial environments. Multi-layer shielding effectively guards against electromagnetic interference . The durable jacket resists damage from industrial exposure. The proprietary connectors ensure secure and stable connections . This robust design supports reliable operation in demanding manufacturing and processing plant conditions.
