Reliable System Interconnect for Tricon Safety Architectures

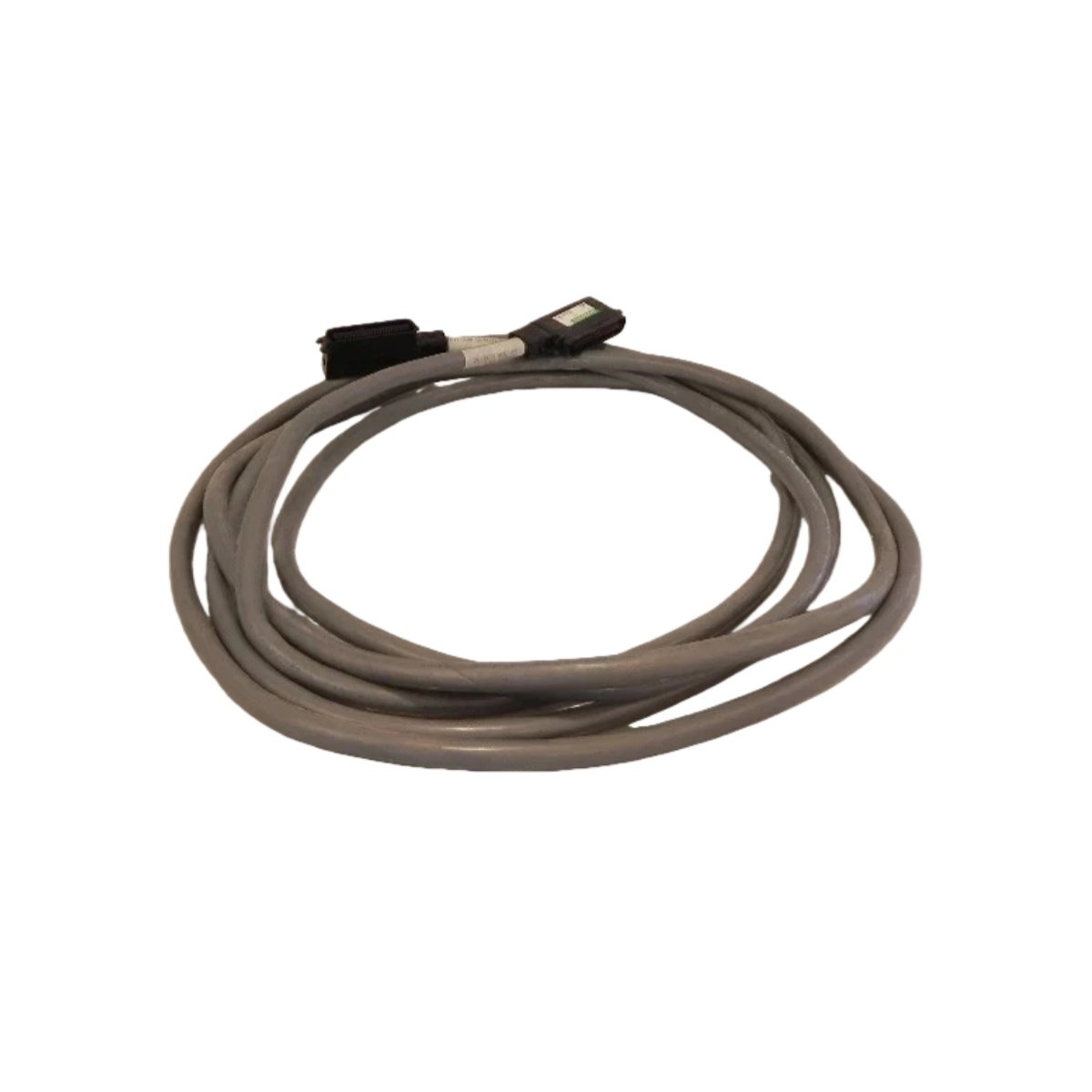

The Triconex 4000029-025 cable assembly provides a critical physical link within the Tricon safety instrumented system. This cable enables communication between the main chassis and remote I/O expansion racks . It ensures data synchronisation for the TMR (Triple Modular Redundancy) architecture. The assembly carries high-speed I/O bus signals across its length. This module is also known as the MP programming and diagnostic serial cable for the main processor . It supports direct connections between the Tricon main processor and a programming terminal .
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | System interconnect / programming cable assembly |
| Core Function | Chassis-to-chassis I/O expansion or MP-to-PC serial link |
| Signal Type | High-speed I/O bus or RS-232 serial (null-modem) |
| Nominal Length | 7.6 meters (25 feet) |
| Connector Type | Dedicated backplane connectors or DB9 female null-modem |
| Shielding | Multi-layer shielding for high-noise immunity |
| Jacket Material | Industrial-grade PVC |
| Compatibility | Tricon main chassis, 8100/8101/8102 expansion racks |
| Application | Remote I/O expansion, system programming, diagnostic access |
Mechanical and Functional Design
The cable’s construction prioritises signal integrity in harsh industrial environments. Multi-layer shielding effectively guards against electromagnetic interference . The durable PVC jacket resists oil and abrasion. The 7.6-meter length offers flexibility for equipment layouts. This assembly is also a variant of the standard 9853-610 programming cable . It connects the main processor’s RS-232 service port to a PC for TriStation software tasks . You can use it for program downloads, online monitoring, and diagnostic data extraction .
Installation and Compatibility
Proper installation ensures reliable system operation. The connectors must fully engage with the backplane ports to avoid communication faults . Verify the cable length requirement by measuring the distance between your racks before ordering. Confirm the connector type by inspecting the original cable . This cable works with Tricon main processors like MP3008 and MP3009 . It also supports communication with diagnostic ports on the NCM. Using the correct cable is vital for maintaining the system’s SIL 3 rating and fault-tolerant operation.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
