High-Density Analog Input for Tricon TMR Safety Systems

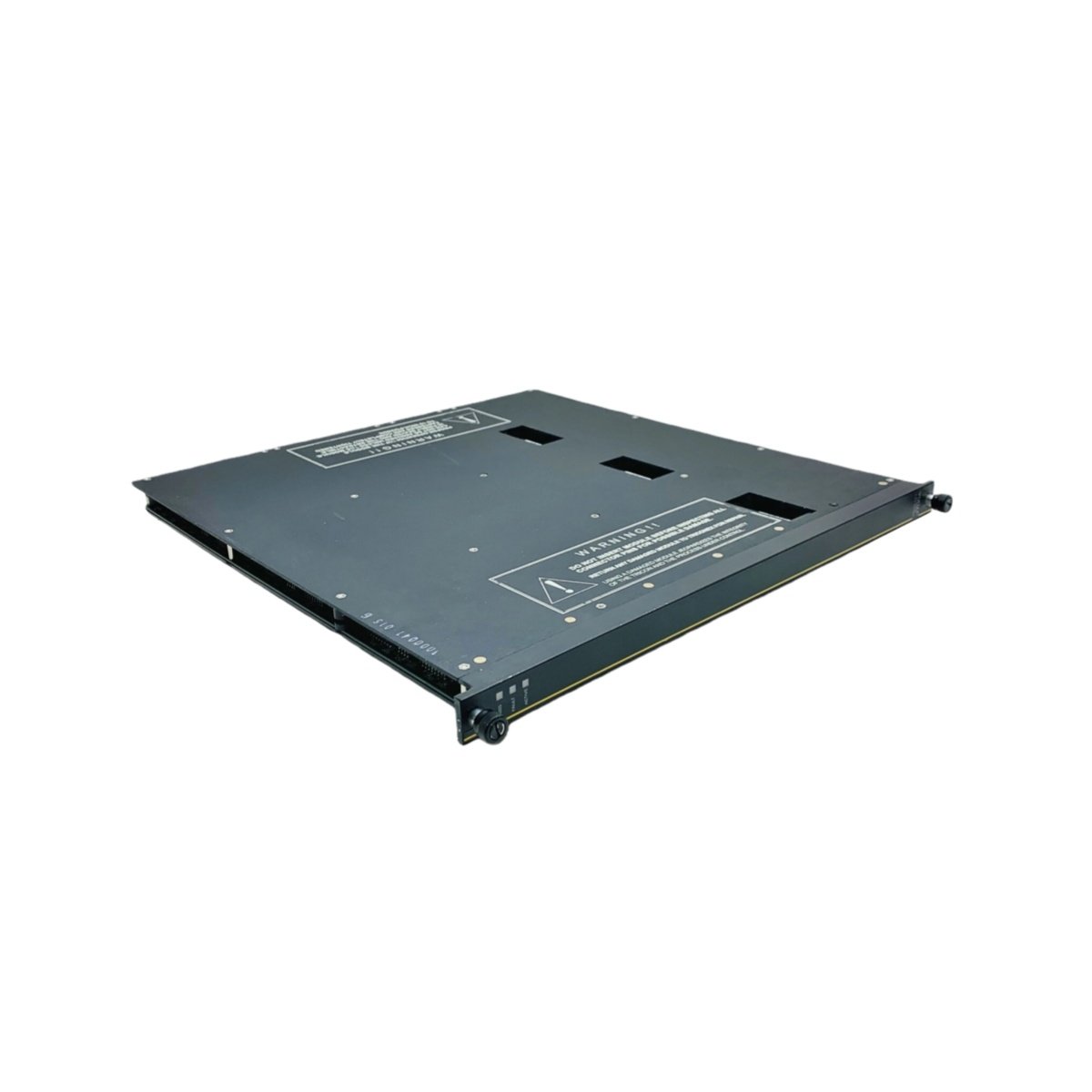

The Triconex 3700A analog input module provides high-density signal acquisition for the Tricon Triple Modular Redundant (TMR) safety instrumented system. This module features 32 differential input channels that convert field sensor signals into digital values for the main processor . It employs a fully triplicated TMR architecture with 2-out-of-3 voting logic to ensure data integrity and continuous operation .

Technical Specifications

Triple Modular Redundancy for Unmatched Reliability

The Triconex 3700A employs a fully triplicated architecture with three independent sub-modules per channel . The 2-out-of-3 voting algorithm ensures accurate data even if one module fails. This design eliminates single points of failure in safety-critical applications .

Flexible Signal Acquisition and Configuration

This module accepts both 0-5V DC voltage signals and 0-20mA current signals with the addition of a 250Ω shunt resistor . The 32 differential inputs offer excellent noise immunity in electrically harsh environments. The high input impedance also minimizes signal loading on field transmitters.

Comprehensive Diagnostics and Fault Detection

The 3700A features channel-level diagnostics that detect open circuits, short circuits, and sensor faults . LED indicators display PASS, FAULT, and ACTIVE status for each channel. These features also support online replacement without system shutdown .

Application Environments

This module serves safety-critical applications in oil and gas, chemical processing, and power generation industries . It handles temperature, pressure, and flow monitoring for emergency shutdown (ESD) and fire & gas systems . The robust design also suits demanding SIL 3 applications per IEC 61508 .
