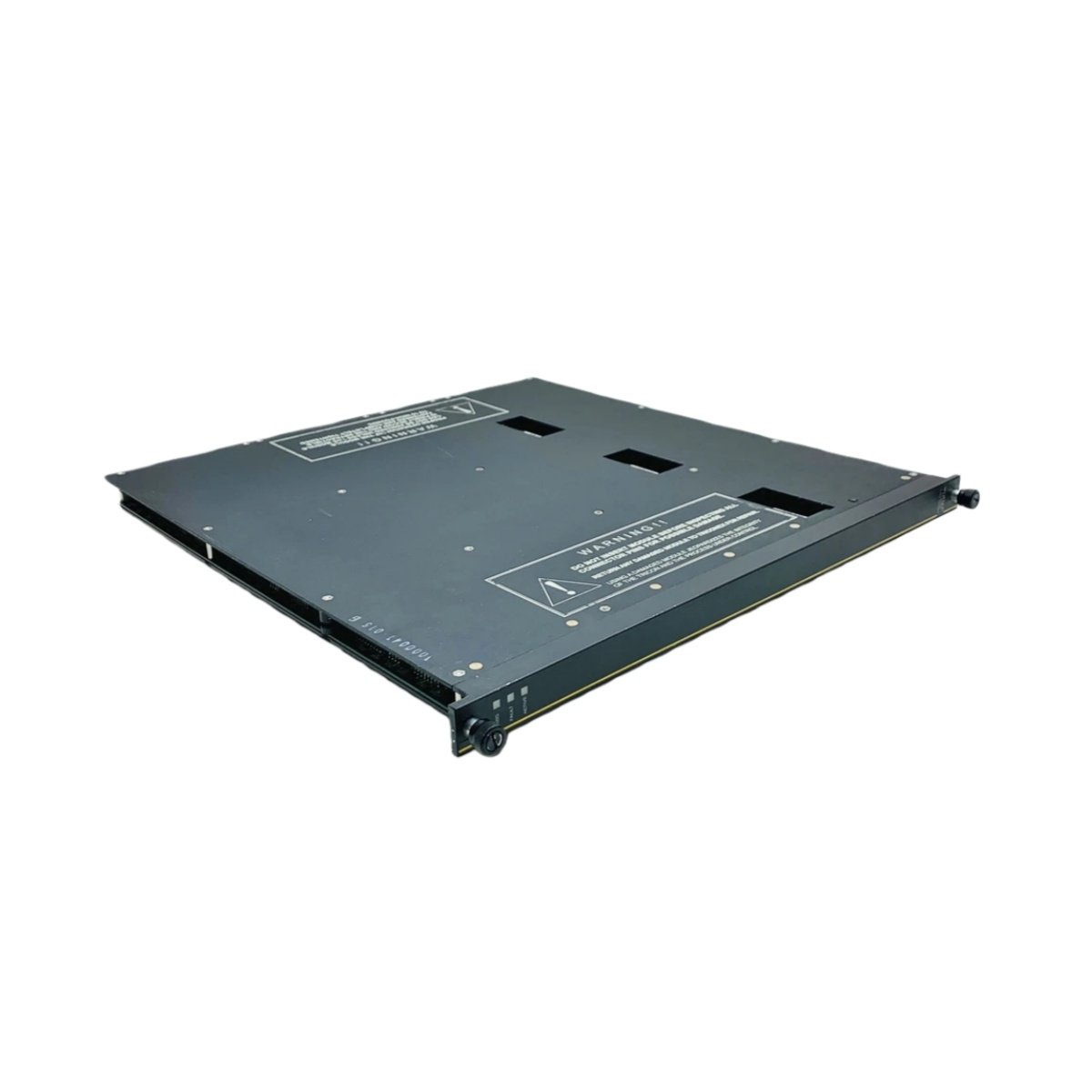

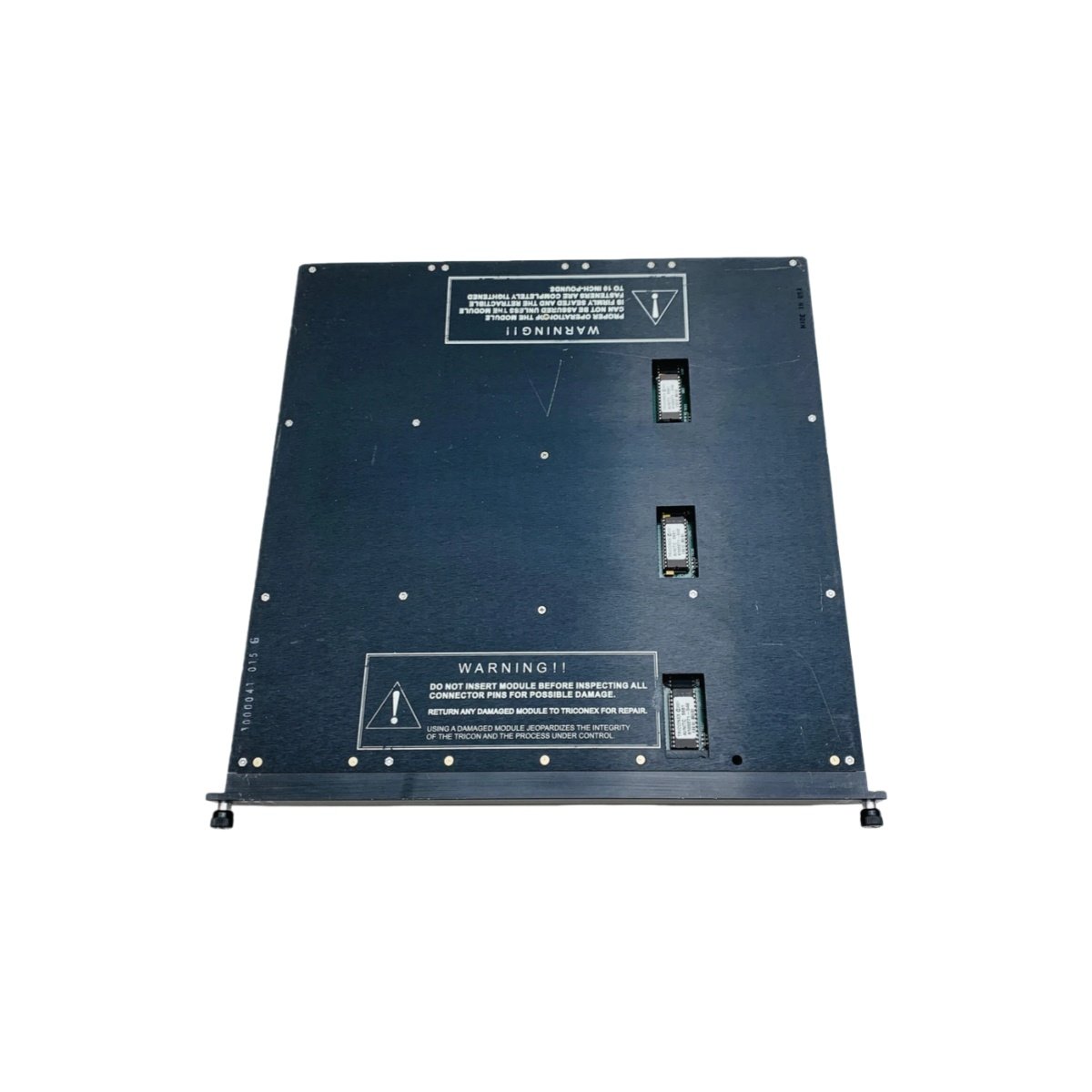

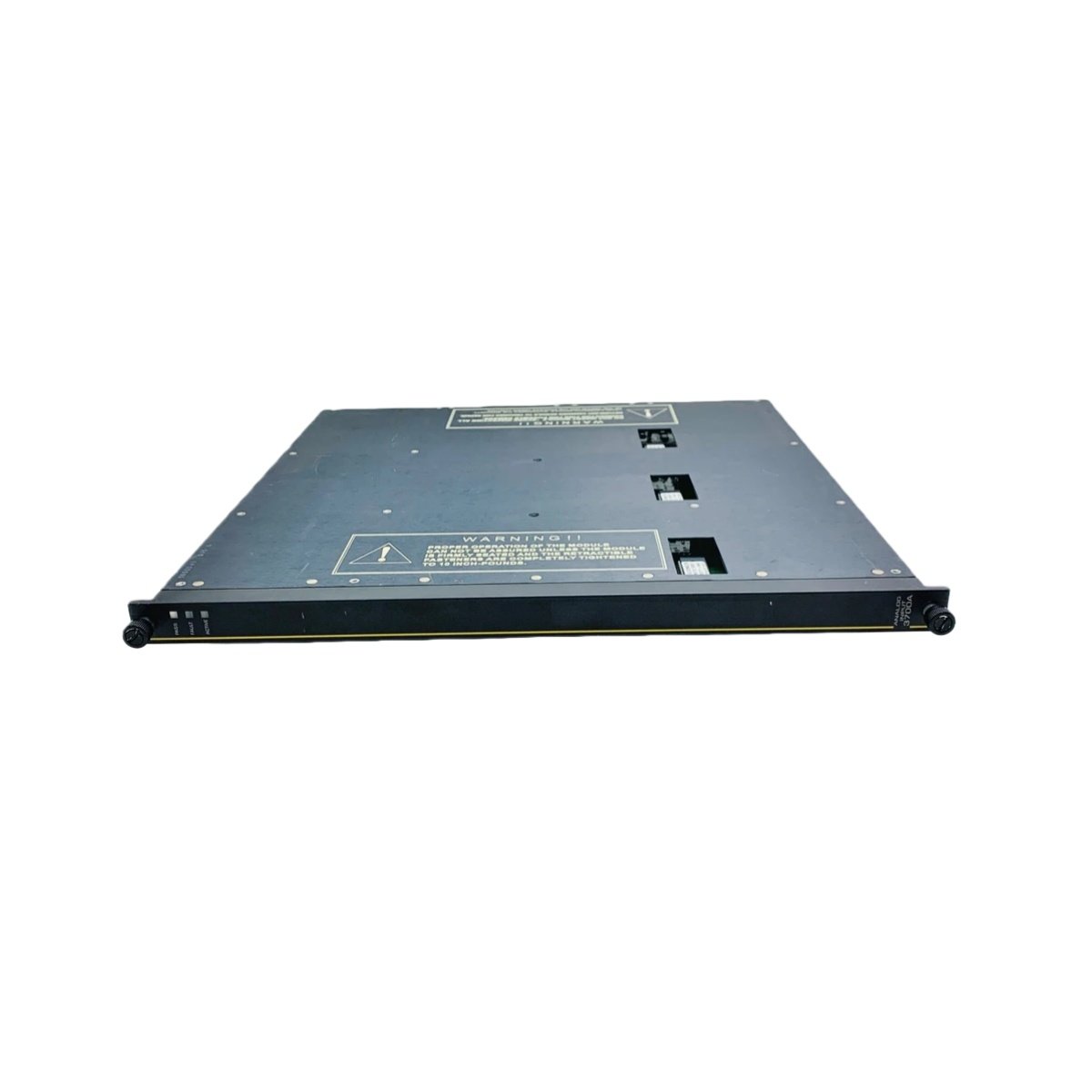

The Triconex 3700 is a high-performance analog input module for the Triconex Triple Modular Redundancy (TMR) system . This module converts 32 analog field signals into digital values for safety-critical process control . It accepts voltage inputs from -10V to +10V and current inputs from 0-20mA . Moreover, the module achieves 16-bit resolution with ±0.1% full-scale accuracy . The Triconex 3700 ensures precise and stable signal conversion in demanding industrial environments .
Triple Modular Redundancy Architecture
This module operates within the Triconex TMR architecture to maximize system availability . Therefore, the Triconex 3700 maintains measurement continuity despite internal component failures . The module supports full hardware redundancy for critical safety applications . Additionally, it meets IEC 61508 SIL 3 certification for safety instrumented functions .
Built-In Diagnostics and HART Protocol
The Triconex 3700 incorporates comprehensive self-diagnostics to ensure reliable measurement integrity . Its internal circuitry continuously monitors each channel for out-of-range conditions and signal degradation . The module integrates HART protocol support for simultaneous transmission of process data and diagnostic information . Furthermore, it performs automatic calibration checks to maintain measurement precision over time .
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric (Triconex) |
| Model | Triconex 3700 |
| Product Type | Analog Input Module |
| Architecture | Triple Modular Redundancy (TMR) |
| Number of Channels | 32 isolated inputs |
| Input Types | Voltage (-10V to +10V) and Current (0-20mA, 4-20mA) |
| Resolution | 16 bits |
| Accuracy | ±0.1% of full scale |
| Input Impedance | 250 Ω (current), 100 kΩ (voltage) |
| Communication Protocol | HART |
| Power Consumption | 25 W typical |
| Dimensions | 20.3 x 7.9 x 4.1 cm (8.0 x 3.1 x 1.6 inches) |
| Weight | Approximately 1.0 kg (2.2 lbs) |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Safety Certification | IEC 61508 SIL 3 |
| Mounting | Chassis slot |
Environmental Durability and Heat Management
The Triconex 3700 features a rugged aluminum housing that effectively dissipates generated heat . This passive cooling design eliminates the need for external fans or additional components . The module withstands vibration and shock typical of heavy industrial facilities . Its conformal coating protects internal electronics from moisture and airborne contaminants .
System Integration and Termination
This analog input module integrates seamlessly with the Triconex TMR system and field termination panels . The Triconex 3700 interfaces with standard termination assemblies for simplified wiring . Users can select different termination options to match specific field device requirements . The module’s keyed connector prevents incorrect installation and ensures reliable electrical contact .
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
