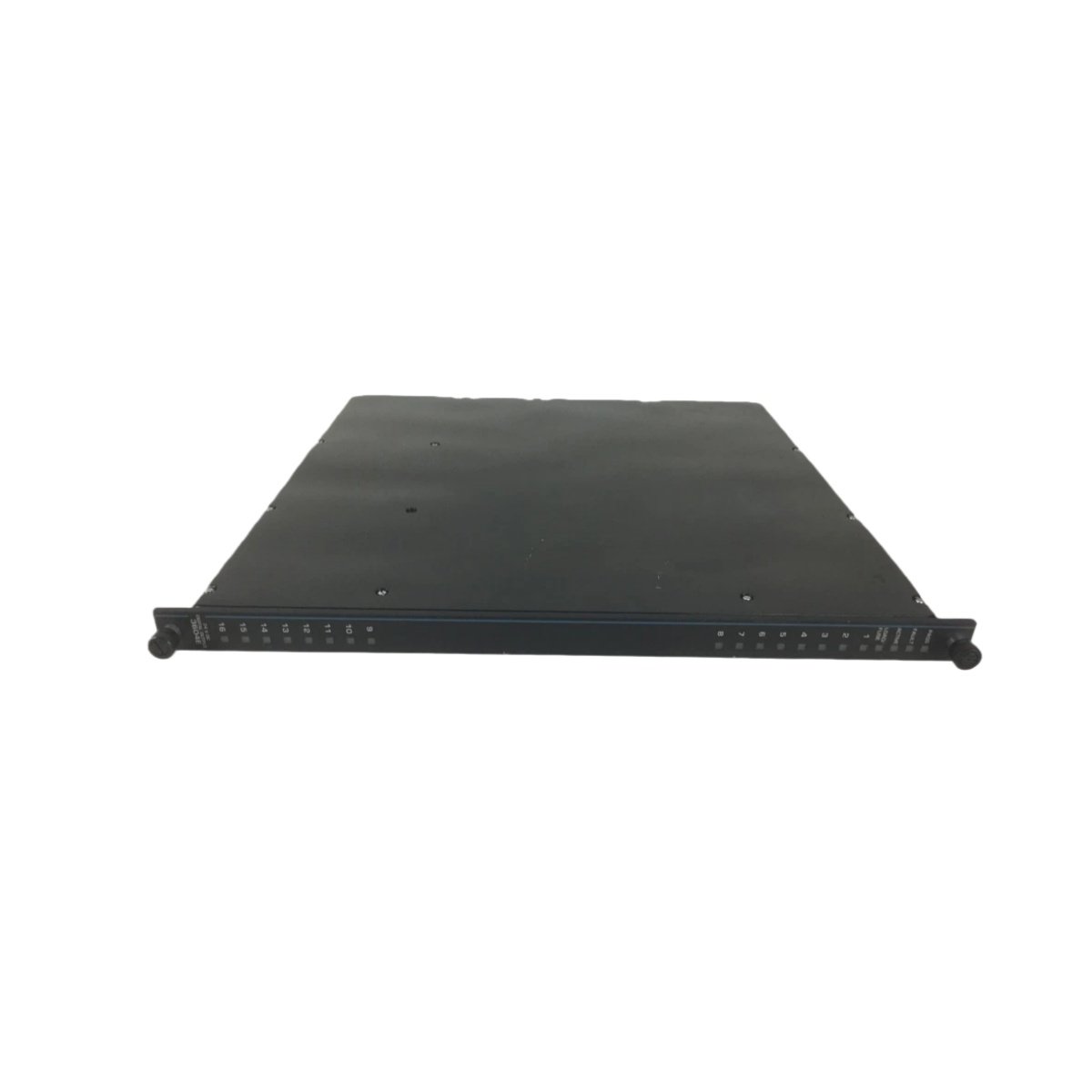

The Triconex 3604A drives field actuators with reliable discrete control signals. This module operates solenoids, motor starters, and indicator lamps effectively. It provides high-current outputs for demanding industrial applications. You will achieve precise on/off control with this output module. This unit integrates with the Triconex Triple Modular Redundant architecture for safety systems.

Physical Dimensions and Mounting Specifications

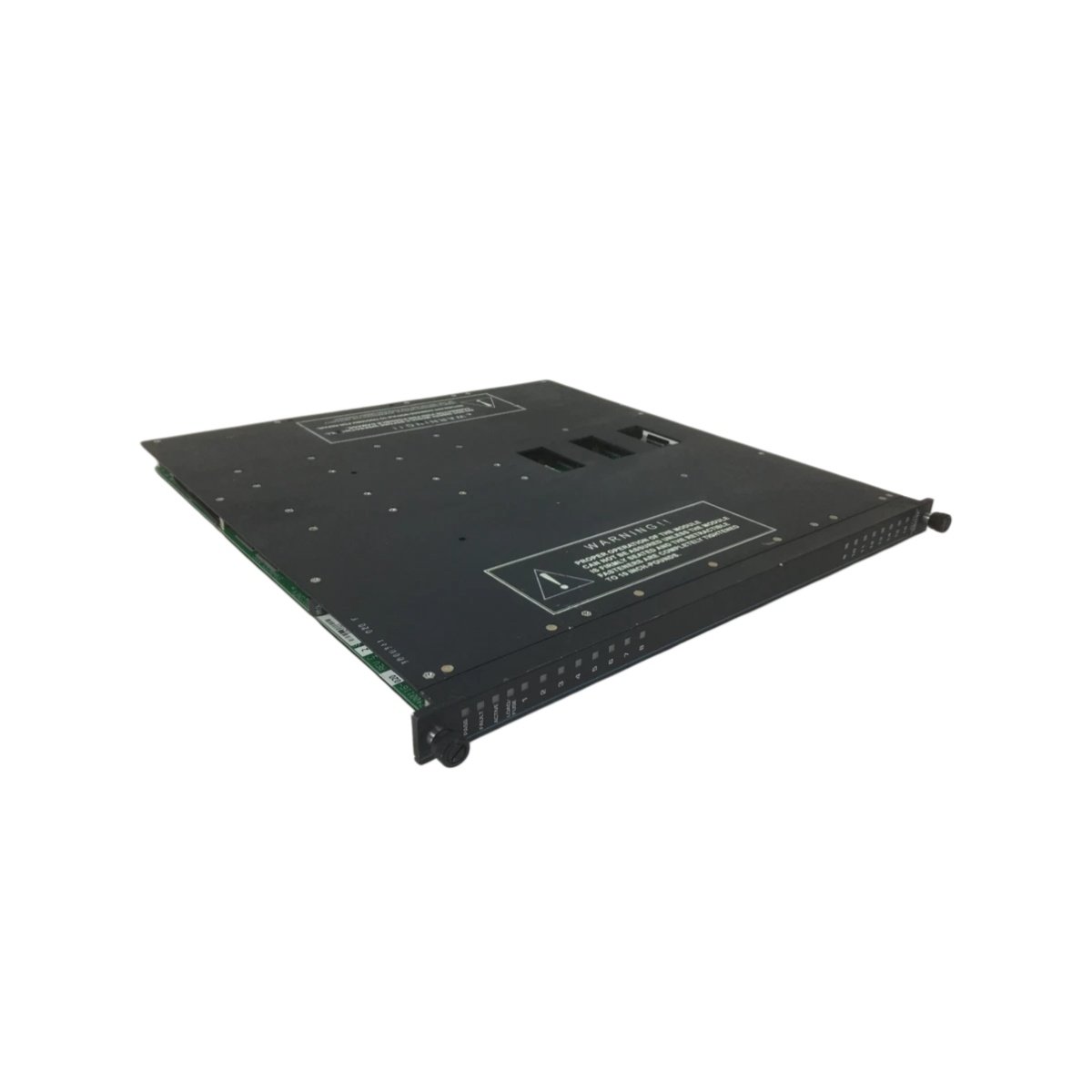

This digital output module features a rugged metal housing for rack installation. Its physical dimensions are 310 mm in height, 40 mm in width, and 280 mm in depth. It weighs approximately 2.1 kilograms for stable mounting. The operating temperature ranges from 0°C to +60°C. This range suits most control room and industrial environments.

Output Channel Configuration and Electrical Ratings

The Triconex 3604A offers 32 discrete output channels per module. Each channel delivers 24 V DC at 2 amperes maximum continuous current. The outputs include built-in short-circuit and overcurrent protection circuitry. These protections prevent damage from field wiring faults. The module supports both sourcing and sinking output configurations.

Output Circuit Design and Isolation Features

This module provides optical isolation between logic and field output circuits. The isolation withstands 1500 V AC for robust protection. Each output channel includes flyback diode suppression for inductive loads. The Triconex 3604A also features thermal shutdown protection on each channel. This prevents overheating during sustained overload conditions.

Diagnostic and Status Monitoring Capabilities

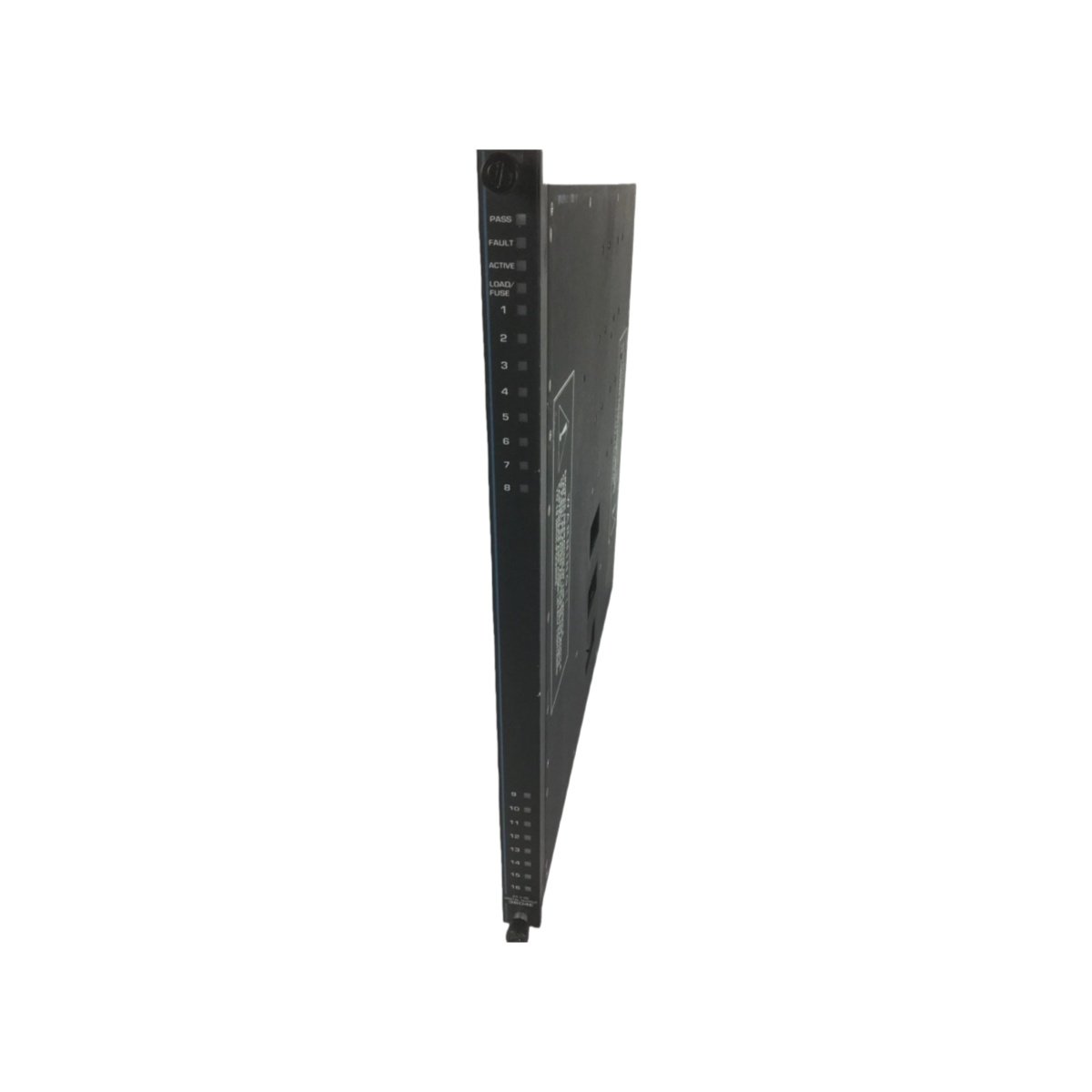

The module performs continuous readback verification of all output states. It compares commanded outputs with actual field conditions. The Triconex 3604A provides LED indicators for each output channel. These LEDs display ON/OFF status and fault conditions clearly. The module logs output faults for maintenance diagnostics.

Component Architecture and Build Quality

The device contains approximately 130 discrete electronic components. Engineers select high-power components for reliable switching performance. The PCB uses heavy copper traces for current-carrying capacity. This design ensures long-term reliability in demanding applications.

Technical Specifications Summary

Safety Integrity and System Performance

The Triconex 3604A meets SIL 3 certification for safety output applications. It performs 2-out-of-3 voting for critical output decisions. The module includes output state retention during communication loss. You can rely on this module for mission-critical safety functions.
