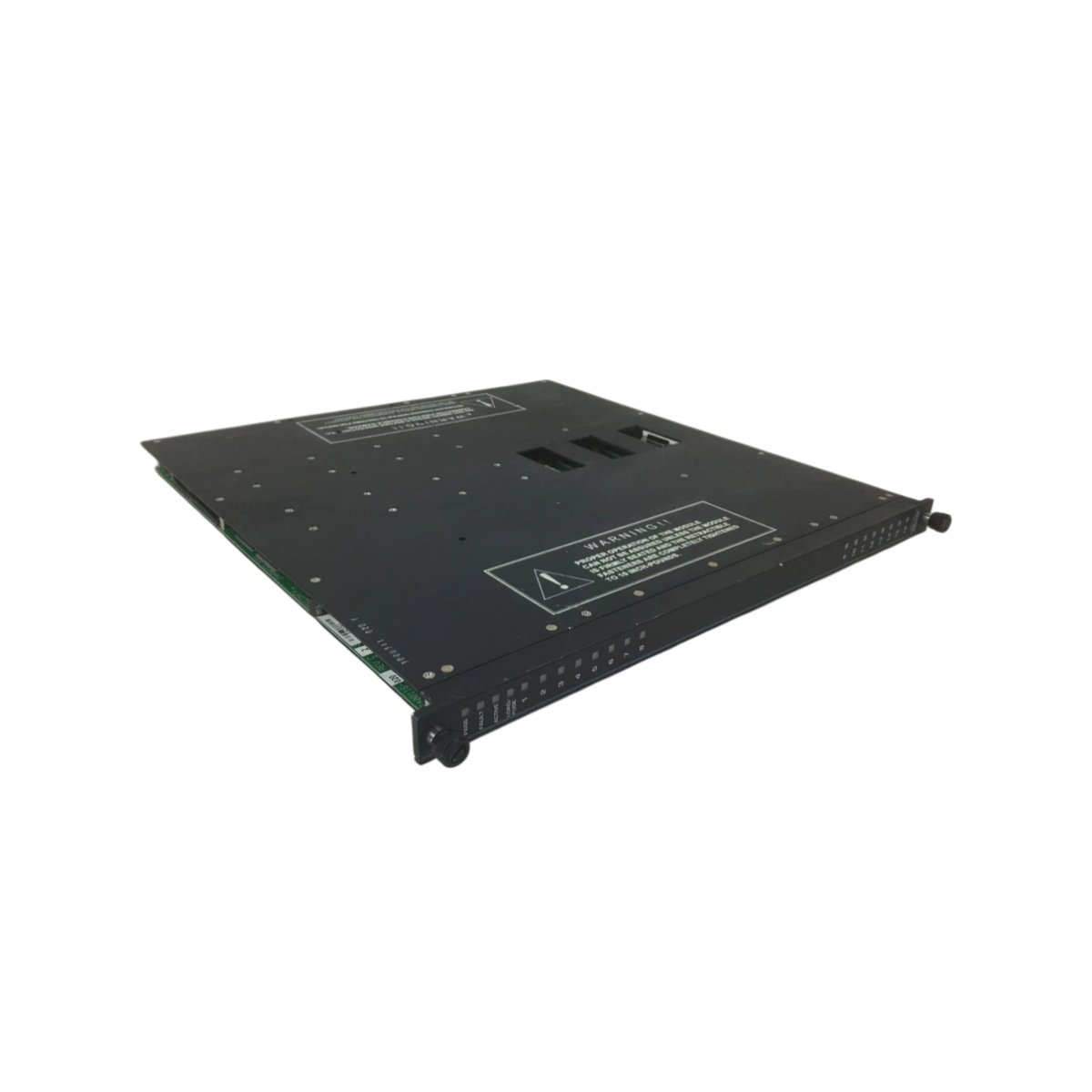

The Triconex 3503E monitors discrete field signals for safety-critical applications. This module reads inputs from pushbuttons, limit switches, and proximity sensors. It provides reliable status data to the Triconex control system. You will achieve precise digital input monitoring with this module. This unit supports the Triple Modular Redundant architecture for fault tolerance.

Physical Dimensions and Mounting Profile

This digital input module features a robust housing for standard rack installation. Its physical dimensions are 310 mm in height, 30 mm in width, and 280 mm in depth. It weighs approximately 1.9 kilograms for stable mounting. The operating temperature ranges from 0°C to +60°C. This thermal range supports most industrial control room conditions.

Input Channel Configuration and Electrical Ratings

The Triconex 3503E offers 32 discrete input channels per module. Each channel accepts 24 V DC nominal voltage from field devices. The inputs include programmable ON and OFF threshold levels. This flexibility accommodates various sensor output characteristics. The module also provides selectable input filtering for noise rejection.

Input Circuit Design and Isolation

This module employs optical isolation between field inputs and logic circuits. The isolation withstands 1500 V AC for robust protection. Each input channel includes current limiting resistors for overcurrent prevention. The Triconex 3503E also features reverse polarity protection on each input. These safeguards ensure reliable operation despite wiring errors.

Diagnostic and Status Monitoring Features

The module performs continuous diagnostics on all input channels. It detects open circuits, short circuits, and power supply faults. The Triconex 3503E provides LED indicators for each active channel. These LEDs display the ON/OFF status of every input. The module also logs diagnostic events for maintenance analysis.

Component Architecture and Build Quality

The device contains approximately 110 discrete electronic components. Engineers select industrial-grade parts for extended service life. The PCB includes separate ground planes for noise immunity. This design ensures reliable performance in electrically noisy environments.

Technical Specifications Summary

Safety Integrity and System Integration

The Triconex 3503E meets SIL 3 certification for safety applications. It integrates seamlessly with Triconex TMR controllers. The module provides diagnostic coverage for each input channel. You can rely on this module for critical safety monitoring functions.
