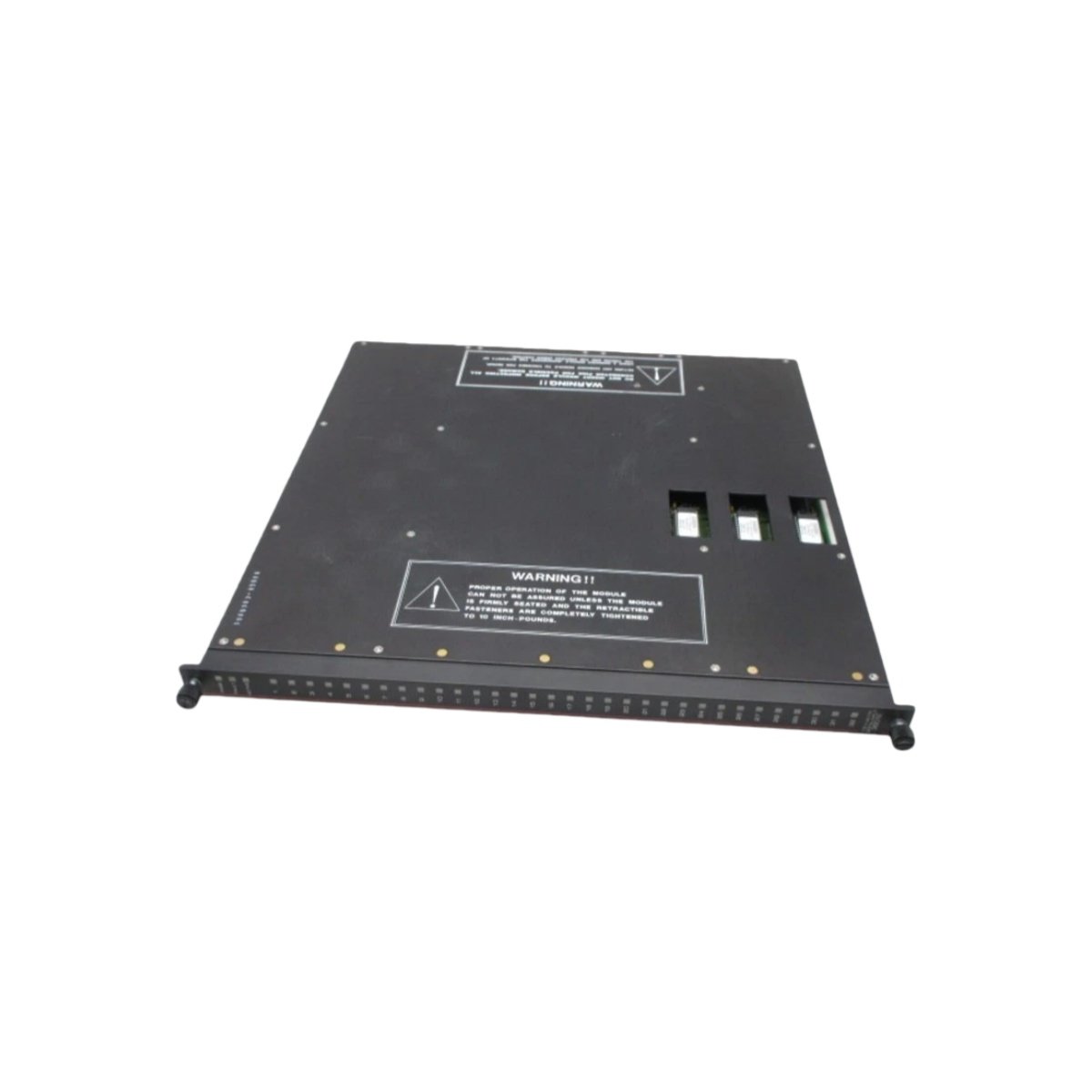

High-Integrity Digital Input for Tricon TMR Systems
The 3501 digital input module delivers high-reliability signal acquisition for Triconex Triple Modular Redundant (TMR) safety systems. This module accepts digital signals from field sensors, switches, and pushbuttons in critical safety applications. It features three independent input circuits that process each signal through hardware-based voting. Consequently, this design ensures fail-safe operation and prevents single-point failures from compromising system integrity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex (Schneider Electric / Invensys) |
| Model | 3501 |
| Product Type | Digital Input Module |
| Architecture | Triple Modular Redundant (TMR) with 2oo3 voting |
| Input Channels | 16 isolated channels |
| Input Voltage | 0-30 VDC (24 VDC nominal) |
| Input Current | 8 mA typical @ 24 VDC |
| Frequency Response | 0-20 kHz |
| Response Time | < 1 ms |
| Isolation Voltage | 1500 VAC (channel-to-channel) |
| Power Consumption | 10 W max |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Weight | 4.8 kg |
| Dimensions | 49 x 45.3 x 6.8 cm |
| Safety Certification | TÜV SIL 3 (IEC 61508) |
| Origin | USA |
TMR Architecture and Fault Tolerance
The 3501 module employs a Triple Modular Redundant architecture with three independent input circuits. Each circuit processes the same field signal independently. A hardware-based 2-out-of-3 voting mechanism then determines the valid signal state. Consequently, a single circuit failure will not cause a false input or compromise the safety function. Built-in diagnostics continuously monitor each channel for open circuits and stuck-at conditions . Front-panel LEDs provide instant visual feedback on channel status and module health.
System Integration and Installation
This module mounts directly into the Tricon chassis and interfaces with the backplane through a standard connector. The 3501 supports hot-swap replacement while the system remains online. Field wiring connects through a compatible Triconex External Termination Panel (ETP) . Users should confirm field supply voltage is within the specified range before energizing. The module also supports RS-232, RS-422, RS-485, and Ethernet communication interfaces .
Typical Applications
This digital input module excels in mission-critical safety applications requiring high integrity. Common use cases include emergency shutdown systems, burner management, and fire & gas detection systems. It also serves in process safety applications across chemical plants and oil & gas refineries . Consequently, the 3501 represents an essential component for SIL 3-rated safety instrumented systems.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
