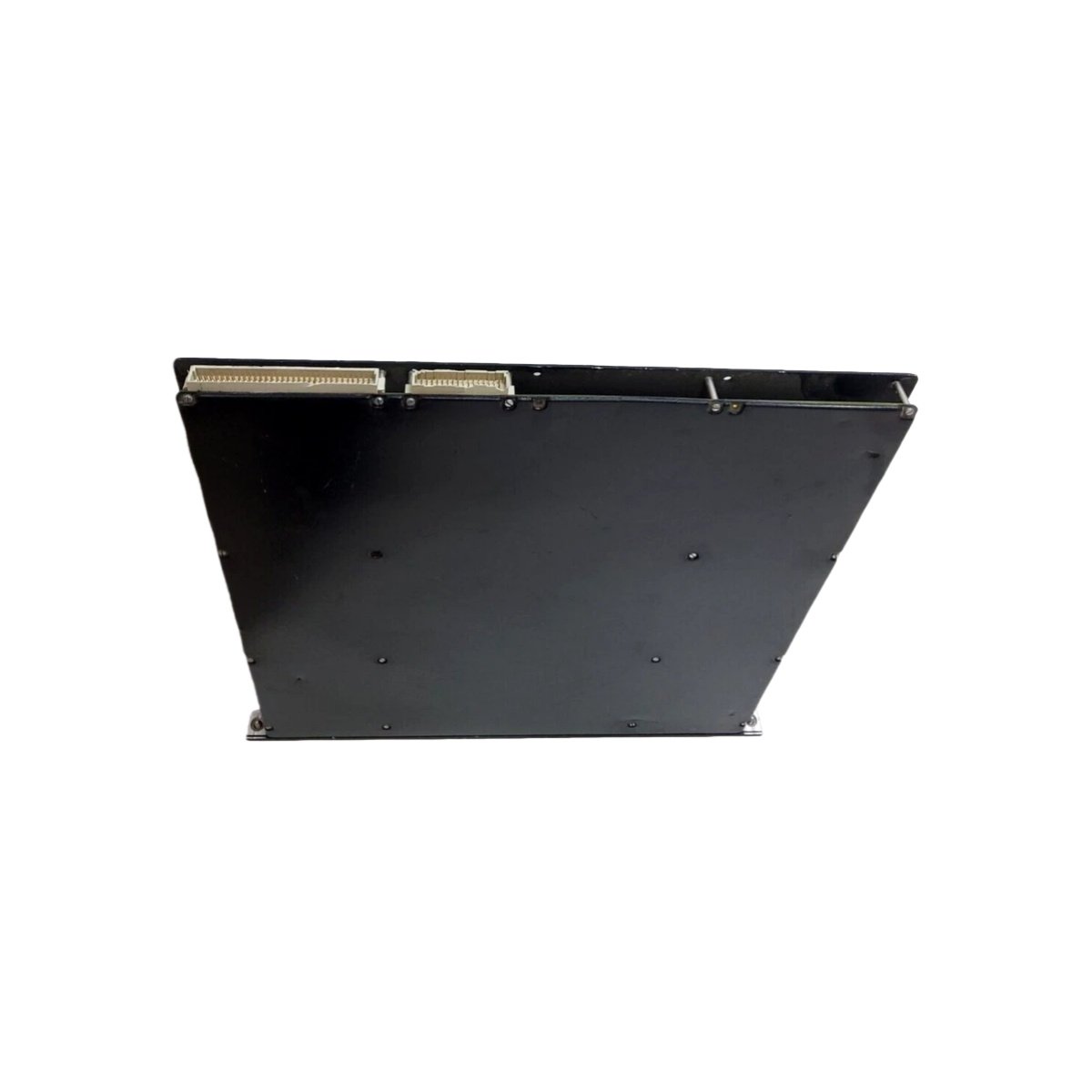

The Triconex 3381 accurately captures frequency and pulse signals from field devices. This module interfaces with turbine flowmeters, encoders, and speed sensors. It provides high-resolution measurements for rotational speed and totalization applications. You will obtain precise data for flow totalization and shaft speed monitoring. This module integrates seamlessly into the Triconex safety and control systems.

Physical Dimensions and Mounting Specifications

This pulse input module features a rugged enclosure for rack-based installation. Its physical dimensions are 310 mm in height, 25 mm in width, and 280 mm in depth. It weighs approximately 1.6 kilograms for stable mounting. The operating temperature ranges from 0°C to +60°C. This thermal range supports installations in typical control room environments.

Input Channel Configuration and Signal Types

The Triconex 3381 provides 8 pulse input channels for field signal acquisition. Each channel accepts signals from NAMUR proximity sensors and mechanical contacts. The module also handles voltage pulses from active transmitters. Each input includes programmable triggering thresholds for flexibility. This configuration matches various sensor output levels and types.

Frequency Measurement and Totalization Capabilities

This module measures input frequencies from 0.01 Hz up to 10 kHz. It provides 32-bit totalization counters for each individual channel. The Triconex 3381 calculates rotational speed directly from pulse periods. It also supports rate-of-change detection for overspeed monitoring applications. The module delivers both instantaneous and accumulated readings to the system.

Signal Conditioning and Noise Immunity

Each input channel includes programmable debounce filtering for contact signals. This filtering eliminates false counts from switch bounce and noise. The Triconex 3381 employs optical isolation between field and logic circuits. This isolation withstands 1500 V AC for robust protection. The module also features hysteresis to prevent signal chatter near thresholds.

Diagnostic Features and Status Indication

The module performs continuous diagnostics on all input channels. It detects open circuits, short circuits, and signal out-of-range conditions. The Triconex 3381 provides LED indicators for each active channel. These LEDs show pulse activity and fault conditions immediately. The module logs diagnostic events for maintenance reference.

Component Architecture and Build Quality

The device contains approximately 110 discrete electronic components. Engineers select high-precision timing components for accurate measurements. The PCB uses separate analog and digital sections to reduce interference. This design ensures stable measurement performance over temperature variations.

Technical Specifications Summary

Safety Integration and Performance

The Triconex 3381 supports SIL 3-rated safety applications with pulse inputs. It provides diagnostic coverage for each measurement channel independently. The module includes configurable alarm limits for overspeed detection. You rely on this module for critical speed and flow monitoring.
