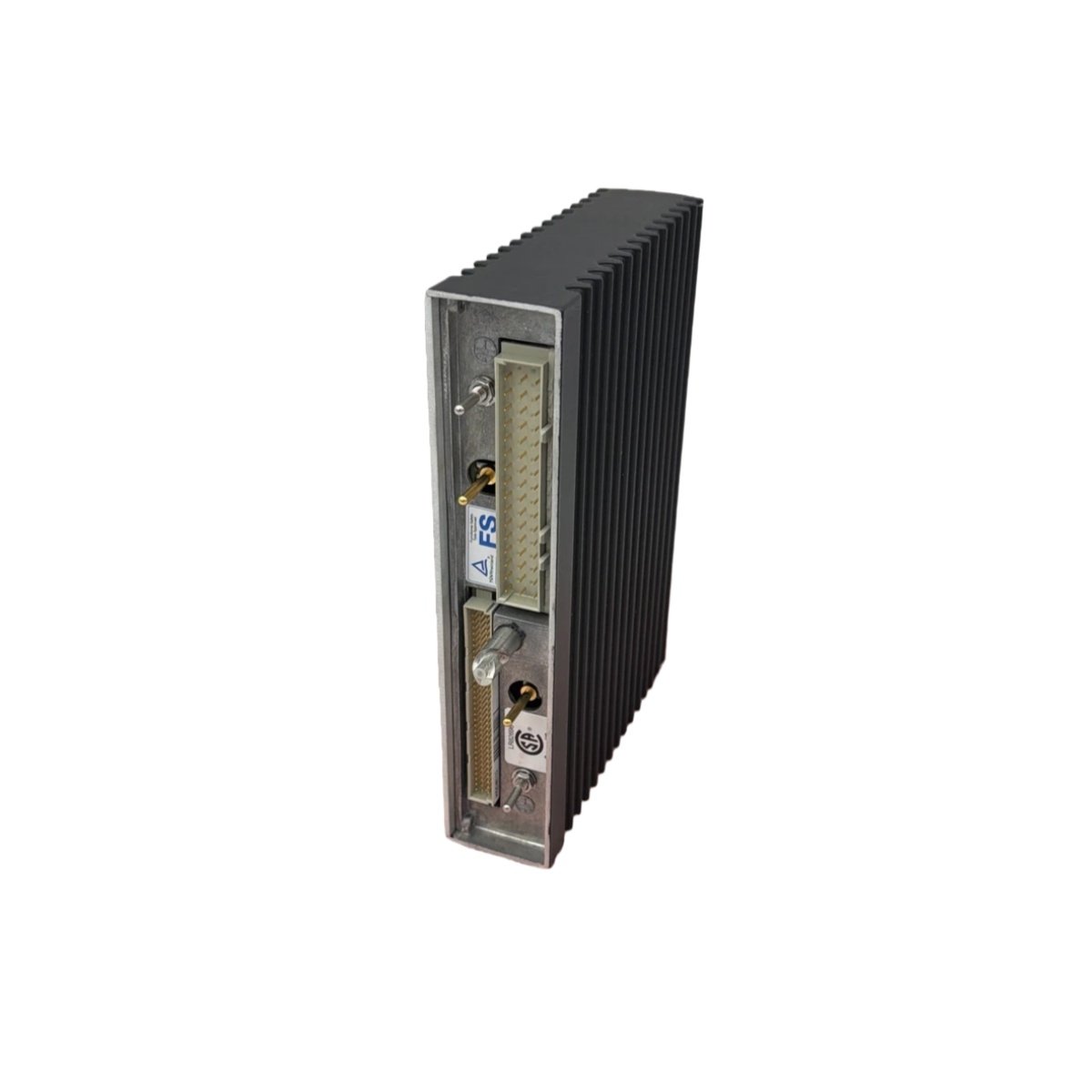

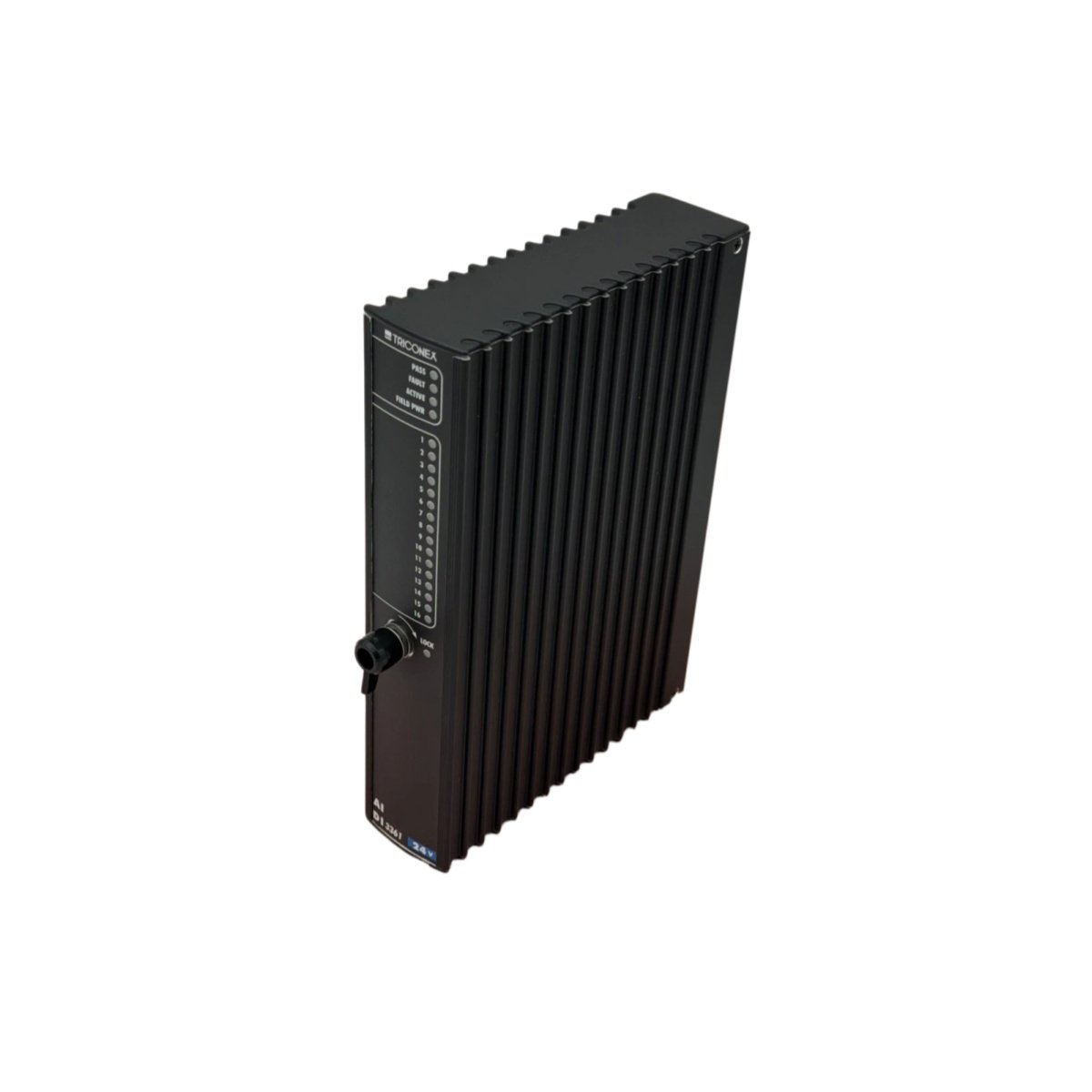

The Triconex 3361 combines both digital and analog I/O capabilities in one unit. This hybrid module interfaces with diverse field devices including transmitters and switches. It serves applications requiring both discrete and continuous signal processing. You will reduce cabinet space and installation costs with this integrated design. This module supports the Triconex Triple Modular Redundant architecture for safety systems.

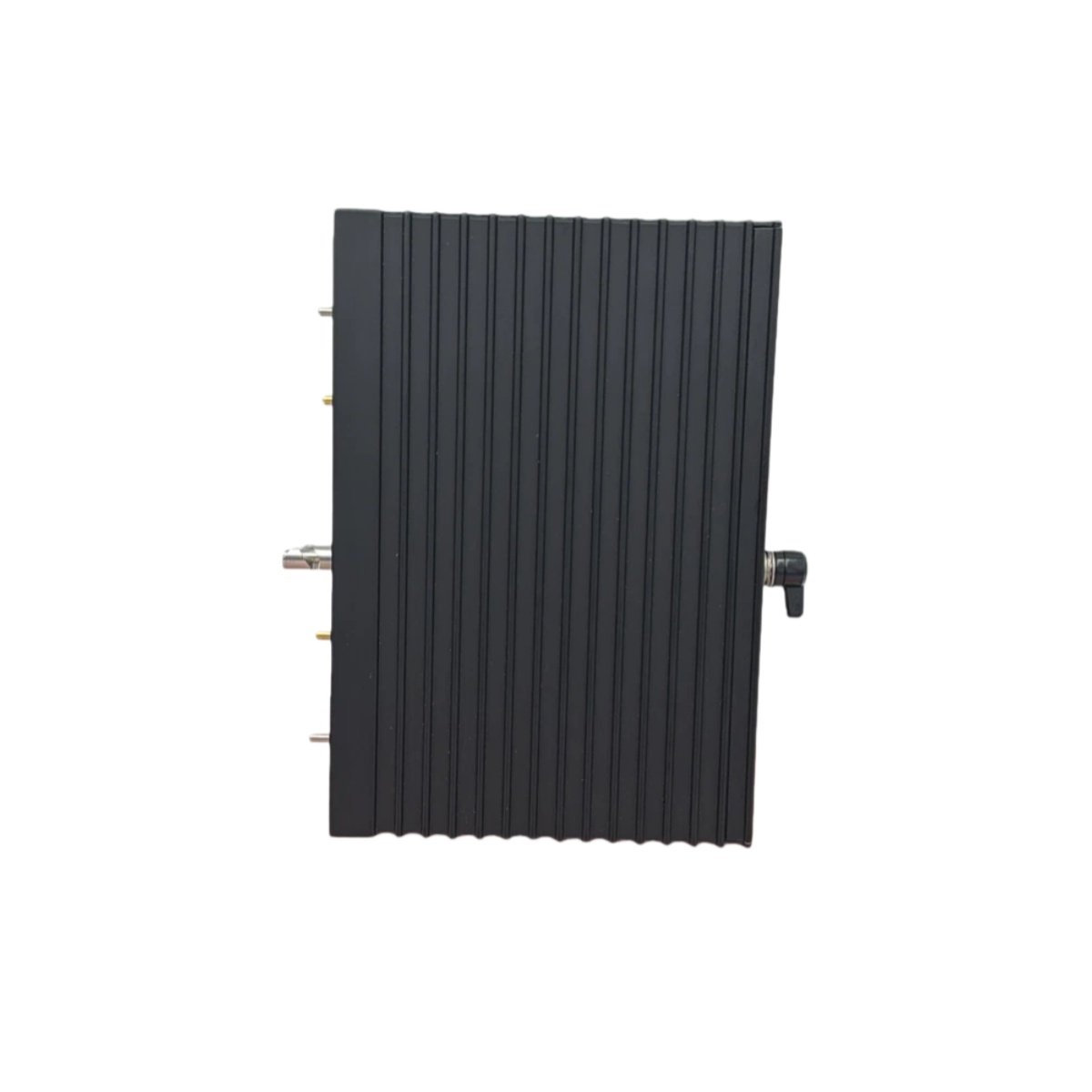

Physical Dimensions and Mounting Profile

This module features a rugged chassis for standard Triconex rack mounting. Its physical dimensions are 310 mm in height, 45 mm in width, and 280 mm in depth. It weighs approximately 2.3 kilograms for stable installation. The operating temperature ranges from 0°C to +60°C. This thermal range suits most industrial environments.

Digital Input and Output Specifications

The Triconex 3361 provides 16 digital input channels for discrete field signals. These inputs accept 24 V DC from switches and proximity sensors. The module also offers 16 digital output channels for actuator control. Each output delivers 24 V DC at 1 ampere maximum current. The outputs include short-circuit and overcurrent protection features.

Analog Input Configuration and Signal Types

This hybrid module includes 8 analog input channels for continuous measurements. These channels accept 4-20 mA current signals from transmitters. The Triconex 3361 also handles 0-10 V voltage inputs from various sensors. It digitizes each analog signal with 16-bit resolution for accuracy. The module provides configurable input scaling for engineering units.

Communication Interface and System Integration

A high-speed backplane connector links the module to the system bus. This interface supports data exchange with the Triconex main processors. The Triconex 3361 updates I/O data within each scan cycle. It synchronizes its status across all three redundant channels. The onboard memory stores calibration data and configuration settings.

Diagnostic Capabilities and Status Monitoring

The module runs continuous diagnostics on all I/O channels. It detects open circuits, short circuits, and signal out-of-range conditions. The Triconex 3361 provides status LEDs for power and communication. Additional LEDs show individual channel health for quick troubleshooting. The module logs faults for later diagnostic retrieval.

Component Architecture and Build Quality

The device contains approximately 150 discrete electronic components. Engineers design the circuit for minimal signal cross-talk between channels. The PCB uses separate analog and digital ground planes for noise reduction.

Technical Specifications Summary

Safety Integrity and Performance

The Triconex 3361 meets SIL 3 requirements for safety applications. It performs 2-out-of-3 voting on all critical I/O data. This ensures high availability even with a single channel failure. The module also includes output state retention during communication loss. You rely on this module for mission-critical hybrid I/O applications.
