High-Availability Control Engine for Tricon TMR Safety Systems

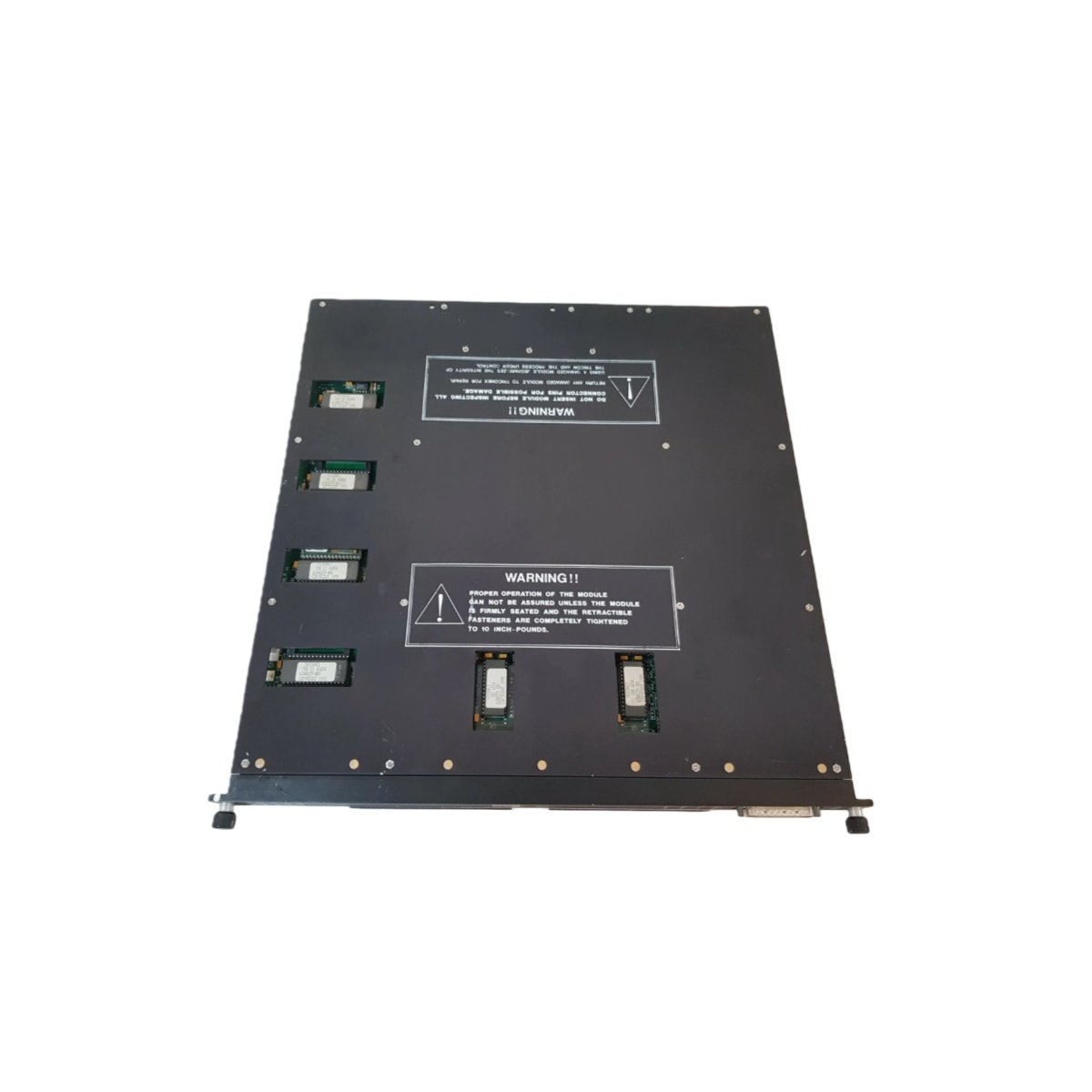

The Triconex 3005 main processor module functions as the primary control engine for the Tricon Triple Modular Redundant (TMR) safety instrumented system . This module executes user-written safety logic, scans I/O subsystems, and manages TMR communication across three independent channels . Every Tricon system requires three MPs installed in the main chassis to form the fault-tolerant architecture .

Technical Specifications

Triple Modular Redundancy Architecture

The Triconex 3005 uses a fully triplicated processor architecture with 2-out-of-3 voting logic for fault-tolerant operation . Each of the three MPs independently communicates with its I/O subsystem and executes the control program . This design eliminates single points of failure and achieves system availability of up to 99.999% .

High-Speed Communication and Diagnostics

The TriBus interface delivers 25 Mbps communication with 32-bit CRC protection for data integrity . The module also performs continuous diagnostics on its own health, the I/O subsystem, and communication channels . An optically isolated RS-232 port provides diagnostic analysis without compromising safety isolation .

Memory Architecture for Safety Applications

The 3005 features 16 MB DRAM for program execution, 32 KB battery-backed SRAM for critical data retention, and 6 MB Flash PROM for firmware storage . This memory configuration supports the safety logic execution required for emergency shutdown (ESD), fire and gas (F&G), and burner management systems (BMS) .

Compatibility and System Integration

This module installs into the main chassis of Tricon systems, typically occupying Slot 1 or Slot 2 depending on the chassis configuration . It supports hot-swapping with a redundant MP pair, enabling online replacement without system interruption . The module works with a wide range of Tricon I/O modules, including digital, analog, and communication modules .
