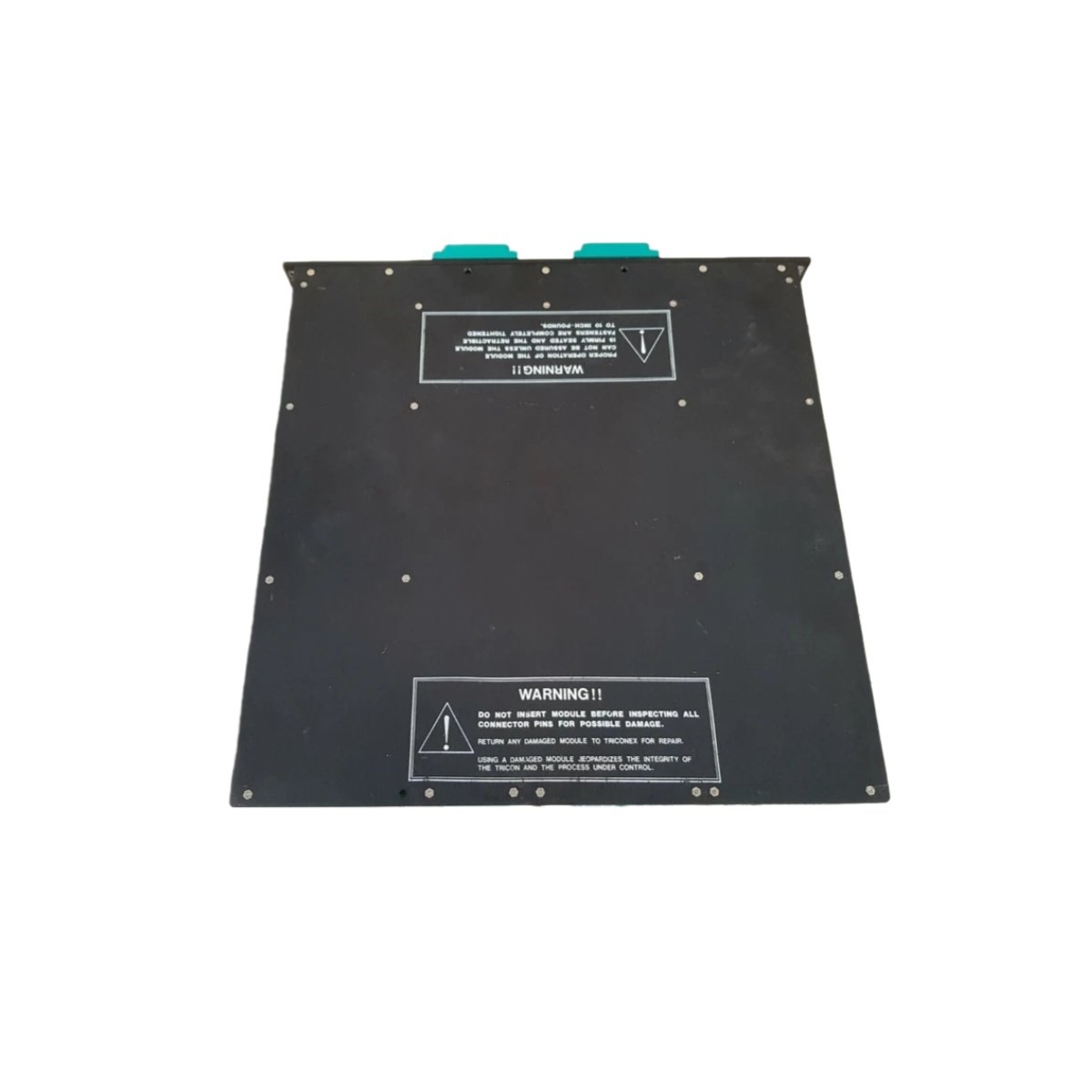

The Triconex 3000110-380 provides a structured connection point for field cabling. This terminal interface module links sensors and actuators to the Triconex I/O chassis. It simplifies the wiring process and reduces installation time. You will achieve organized cable management with this interface solution. This module supports both digital and analog field signal connections.
Physical Dimensions and Mounting Specifications

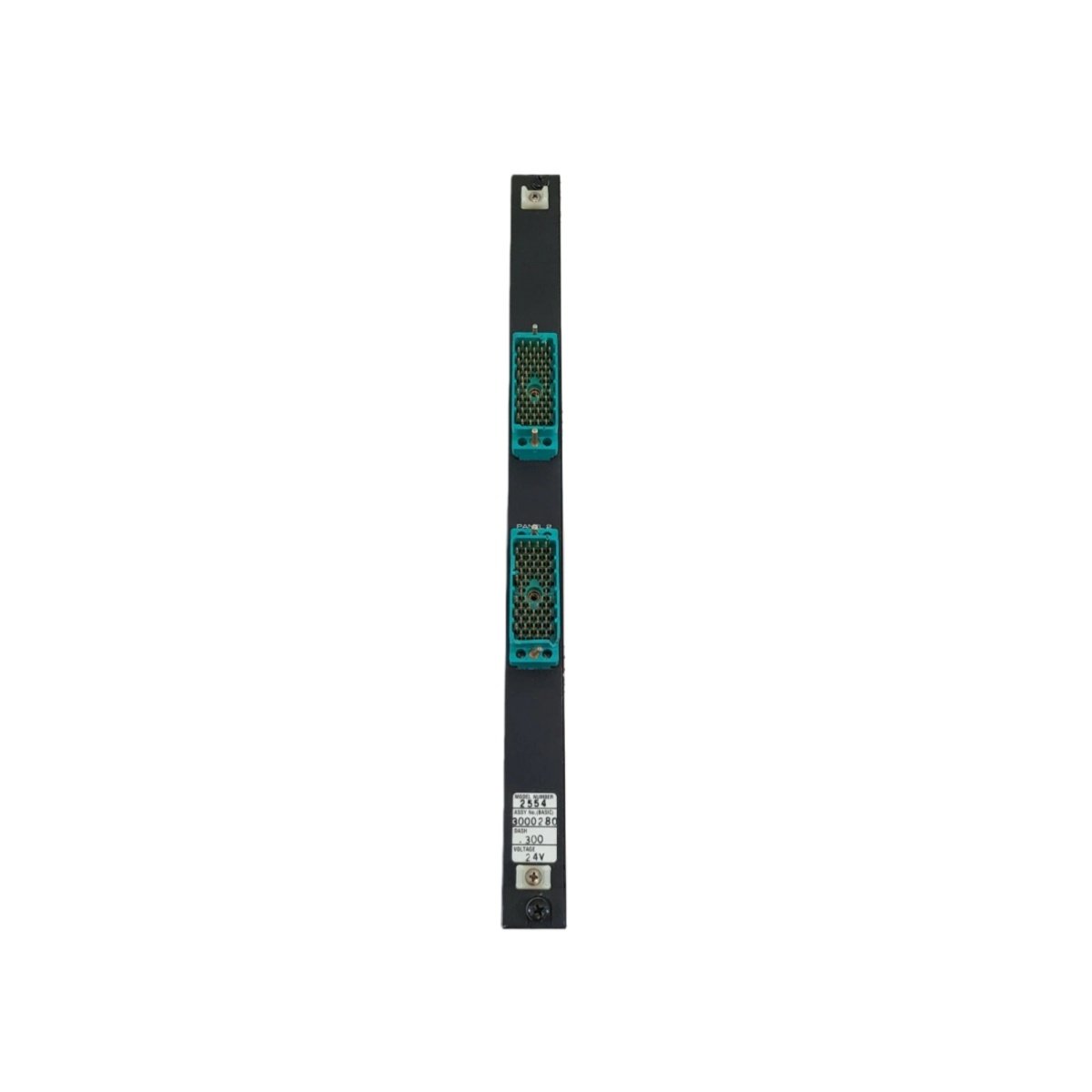

This terminal interface module features a flat panel for rack mounting. Its physical dimensions are 330 mm in height, 45 mm in width, and 280 mm in depth. It weighs approximately 2.0 kilograms for stable installation. The operating temperature ranges from 0°C to +60°C. This thermal range fits most industrial control room environments.
Connection Points and Terminal Layout
The Triconex 3000110-380 offers clearly marked terminal blocks for field wiring. Each terminal accommodates wire gauges up to 2.5 mm² for secure connections. The module provides labeled positions for every I/O channel. This labeling simplifies installation and future maintenance tasks. The board also includes dedicated terminals for field power distribution.
Signal Routing and Cable Management
This module routes field signals directly to the I/O modules. It separates signal paths to minimize cross-channel interference. The Triconex 3000110-380 uses printed circuit traces for consistent electrical performance. These traces reduce point-to-point wiring errors significantly. The board’s design facilitates orderly cable routing within the cabinet.
Diagnostic and Monitoring Features
The module includes test points for signal verification during commissioning. Technicians can measure signals without disconnecting field wiring. The Triconex 3000110-380 provides LED indicators for power and communication. These lights confirm proper module operation immediately. The board also supports field wiring integrity checks.
Component Architecture and Build Quality
The device contains approximately 120 discrete electronic components. Engineers use high-quality connectors for reliable field terminations. The PCB receives a protective coating against moisture and contaminants. This coating extends the module’s service life considerably.
Technical Specifications Summary
| Parameter | Specification |
|---|---|
| Dimensions (H × W × D) | 330 mm × 45 mm × 280 mm |
| Weight | Approx. 2.0 kg |
| Operating Temp | 0°C to +60°C |
| Wire Capacity | Up to 2.5 mm² |
| Signal Types | Digital and analog |
| Test Points | Yes, for each signal path |
| Status LEDs | Power and communication |
| Mounting | Rack or panel mount |
| Protection | Conformal coating |
| Components | Approx. 120 discrete parts |
System Integration Benefits
The Triconex 3000110-380 enables quick troubleshooting and module swaps. Field wiring remains intact during I/O module replacements. This feature minimizes system downtime significantly. You gain long-term maintainability with this interface module.
Details
| Weight | 2.0 kg |
|---|---|
| Dimensions | 330 × 45 × 280 mm |
