External Termination Baseplate for Triconex Safety Instrumented Systems

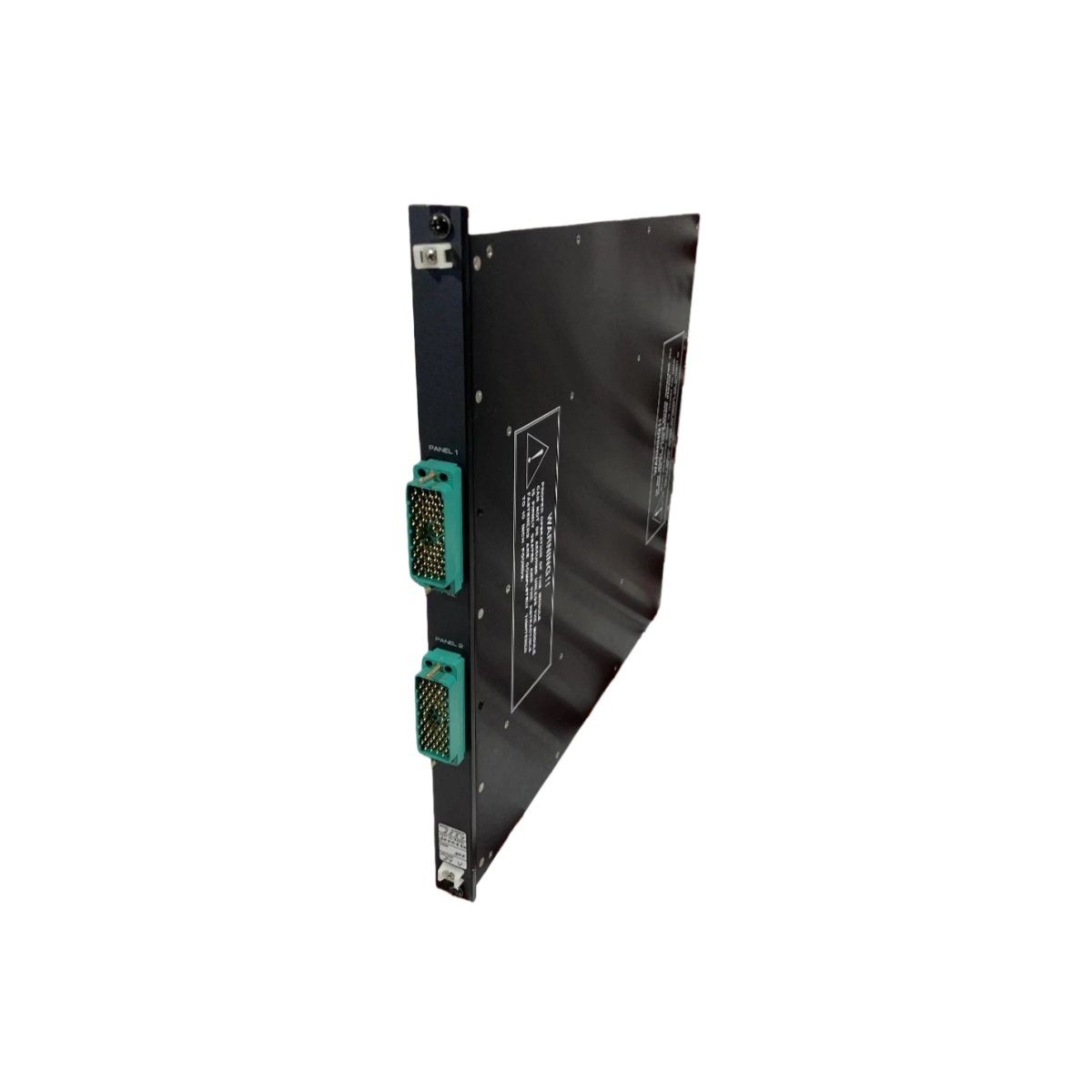

The 3000110-360 external termination assembly functions as a robust baseplate for field wiring termination within Triconex safety instrumented systems . This assembly provides a secure, organized interface between field devices such as sensors, switches, and actuators and the Triconex I/O modules. Consequently, it ensures reliable signal transmission while maintaining the mechanical stability required for mission-critical safety applications.

Technical Specifications

TMR Architecture Support and System Integration

The 3000110-360 external termination assembly fully supports the Triple Modular Redundant (TMR) architecture of Triconex safety systems . This baseplate interfaces with various digital and analog I/O modules such as the Triconex 2351 and 3703E, enabling flexible system design . Furthermore, its shielded termination points and screw-terminal connections minimize electromagnetic interference, ensuring accurate signal conditioning even in electrically noisy environments . The assembly’s design simplifies field wiring, reducing installation errors and accelerating system commissioning.

Physical Characteristics and Environmental Durability

This termination assembly weighs 1.06 kg, featuring a compact form factor that saves valuable cabinet space . Its flame-retardant polycarbonate housing and IP65-rated construction provide robust protection against dust, water ingress, and corrosive elements . Consequently, the 3000110-360 withstands harsh industrial conditions found in offshore platforms and chemical plants. The assembly operates reliably across a temperature range of -20°C to +70°C, ensuring consistent performance in demanding environments .

Application and Safety Certification

This baseplate is widely deployed in safety-critical industries such as oil and gas, chemical processing, and power generation . It plays a critical role in Emergency Shutdown Systems (ESD), Fire & Gas detection networks, and High-Integrity Pressure Protection Systems (HIPPS). By connecting field wiring to Triconex I/O modules, the 3000110-360 reinforces the overall reliability of safety loops. The assembly integrates into Triconex’s SIL 3-capable architecture, enabling compliance with IEC 61508 standards for functional safety .
