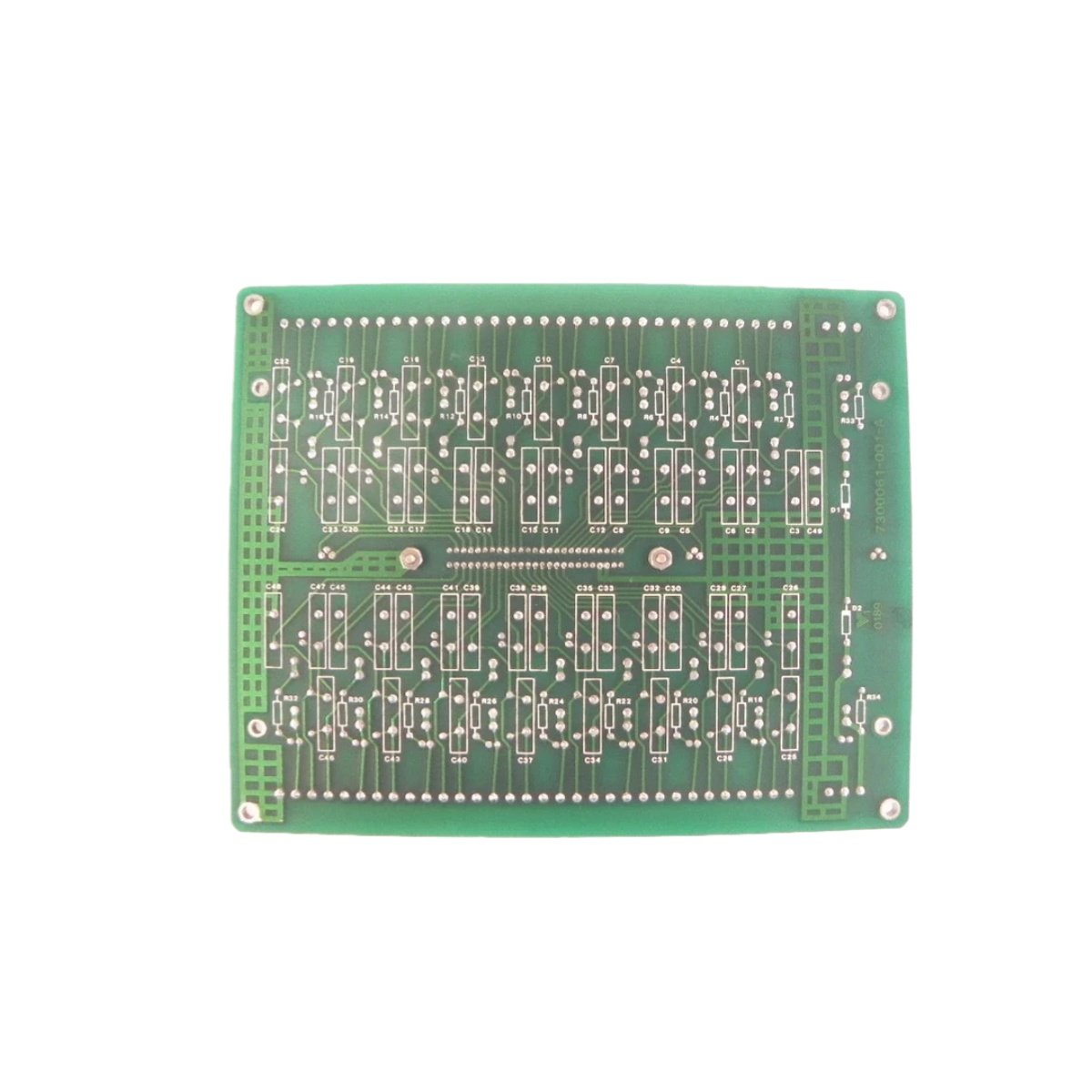

Analog Signal Marshalling for Tricon Safety Systems

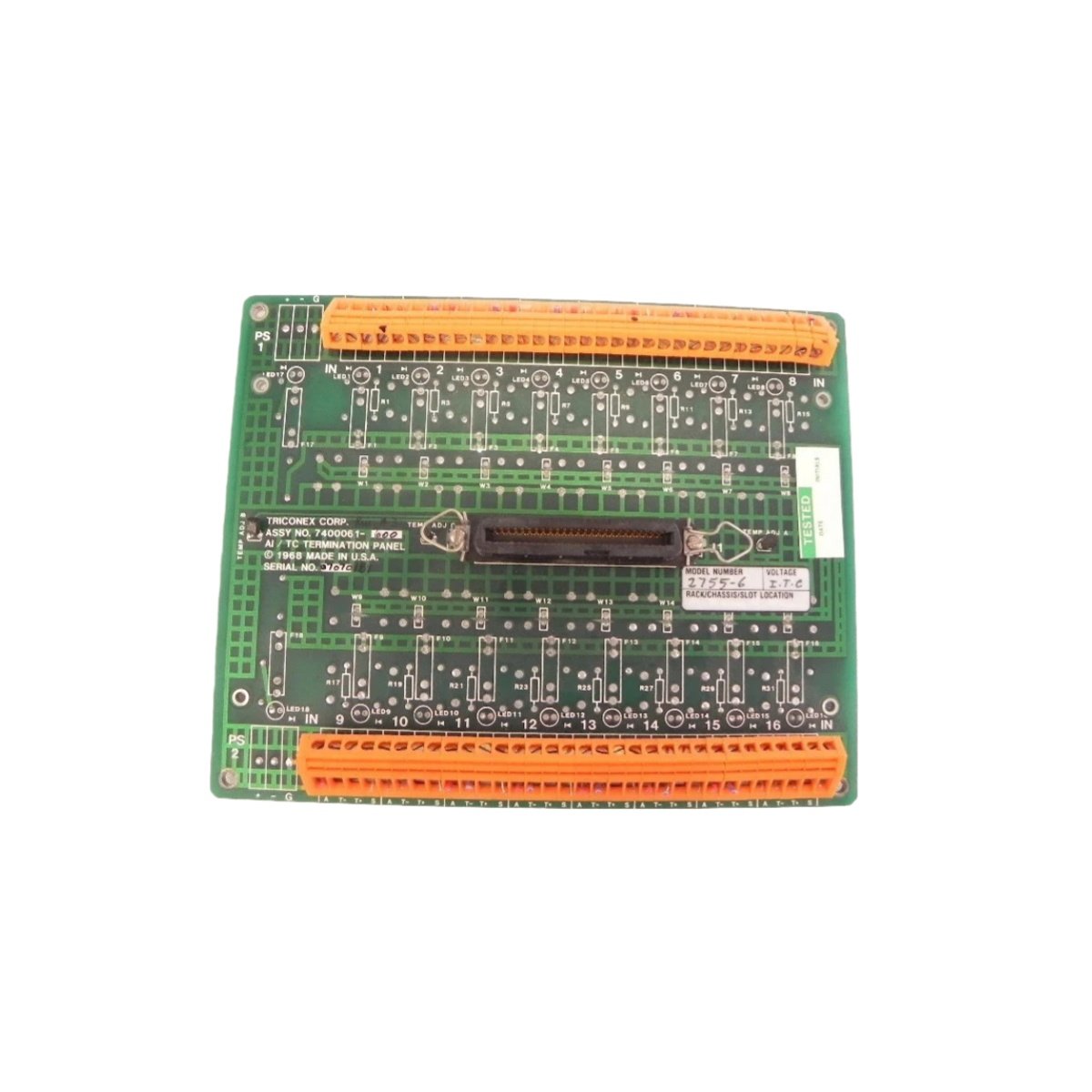

The Triconex 2755 7400061-600 termination panel provides a structured interface for analog field signals in Tricon safety instrumented systems. This panel marshalls signals from field transmitters before routing them to the main analog I/O modules. Accurate process measurement relies on this panel’s reliable signal distribution and connection integrity.
Technical Specifications and Channel Configuration
This termination panel offers 32 termination points organized for analog input signals from field transmitters . The panel employs screw-type terminals that accept wires from 14 to 22 AWG (0.5 to 2.5 mm²) for robust connections . An integrated backplane provides seamless connectivity to the corresponding Tricon analog input modules . Furthermore, the panel includes grounding terminals for cable shields, effectively reducing electrical noise .
| Parameter | Specification |
|---|---|
| Brand | Triconex |
| Model | 2755 7400061-600 |
| Product Type | Analog Termination Panel / Signal Marshalling |
| Channel Capacity | 32 analog input channels |
| Signal Type | 4-20 mA / 0-10 V (field configurable) |
| Connection Type | Screw terminal blocks |
| Wire Gauge | 14-22 AWG (0.5-2.5 mm²) |
| Architecture | Triple Modular Redundant (TMR) compatible |
| Isolation | 500 V AC (field to system) |
| Mounting | DIN rail or panel mount |
| Weight | Approx. 1.5 kg |
| Operating Temperature | -40°C to +70°C |
Connection and System Integration
The Triconex 2755 7400061-600 termination panel simplifies cabinet wiring with clearly numbered termination points . You connect field devices, such as pressure, temperature, and flow transmitters, directly to this panel . The panel then interfaces with the Tricon controller via the corresponding analog input module and a dedicated cable . This design accelerates commissioning and reduces the risk of installation errors .
Applications in Safety-Critical Industries
You will find this termination panel deployed across various safety-critical industries, including oil and gas, chemical processing, and power generation . Its robust design and SIL 3 compliance make it ideal for emergency shutdown systems and process safety applications . For installations in harsh environments, the panel remains reliable across a wide temperature range from -40°C to +70°C .
Installation and Maintenance Guidelines
You can mount this termination panel on a standard 35 mm DIN rail or directly on a cabinet panel . Ensure proper grounding of cable shields to the panel’s grounding terminal for optimal signal integrity . Label each terminal clearly to simplify future maintenance and troubleshooting . The panel operates reliably from -40°C to +70°C with non-condensing humidity up to 95% .
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
