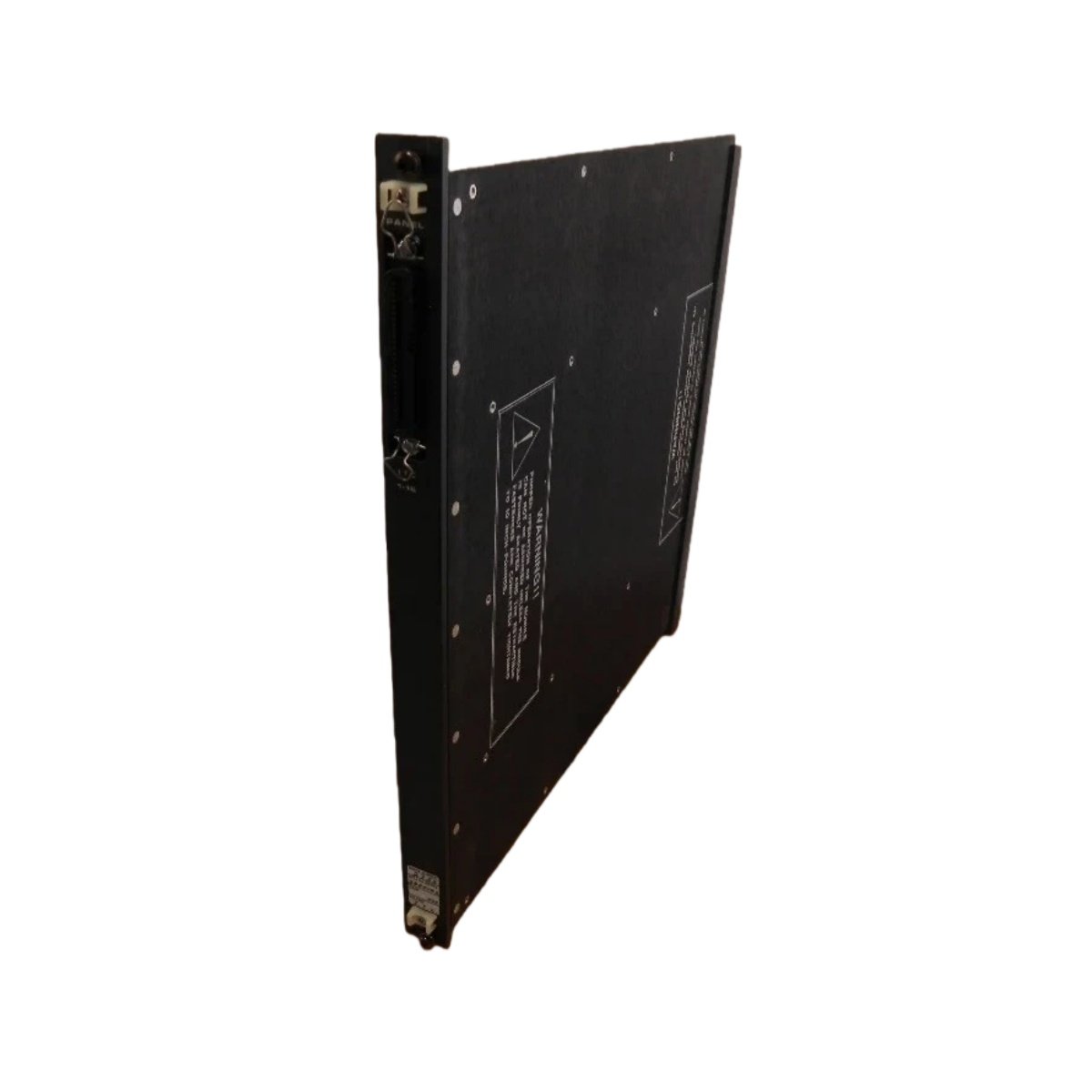

The Triconex 2755-020 delivers reliable digital output control for safety-critical systems. This module drives field actuators, solenoids, and indicator lamps with precision. It forms an integral part of the Triconex Triple Modular Redundant architecture. You will achieve high availability for emergency shutdown and fire/gas applications. This output module ensures deterministic switching performance in demanding environments.

Physical Dimensions and Mechanical Specifications

This module features a sturdy metal housing for rack-based installation. Its physical dimensions are 310 mm in height, 30 mm in width, and 280 mm in depth. It weighs approximately 2.5 kilograms for secure mounting. The operating temperature spans from 0°C to +60°C. This range suits most industrial control room conditions.

Output Channel Configuration and Electrical Ratings

The Triconex 2755-020 provides 20 discrete digital output channels. Each channel delivers 24 V DC at 2 amperes maximum continuous current. The outputs feature short-circuit protection and overcurrent limiting circuitry. These protections prevent damage from accidental wiring faults. The module supports both energize-to-trip and de-energize-to-trip safety logic. This flexibility matches various emergency shutdown philosophies.

Communication Interface and Data Exchange

A high-density backplane connector links the module to the system bus. This interface supports high-speed communication with the main processors. The Triconex 2755-020 synchronizes output states across all three redundancy channels. It performs 2-out-of-3 voting to ensure output integrity. The onboard memory stores output status data for diagnostic retrieval.

Diagnostic and Status Monitoring Features

This module incorporates LED indicators for each output channel. These lights display ON/OFF states and fault conditions clearly. Additional LEDs indicate module health, power status, and communication activity. The Triconex 2755-020 executes power-on self-tests automatically upon startup. It also performs continuous output readback verification during operation.

Component Composition and Build Quality

The device contains approximately 120 discrete electronic components. Engineers select components rated for extended temperature and vibration tolerance. The PCB uses heavy copper traces for high-current handling capability. This design ensures reliable operation over the module’s service life.

Technical Specifications Summary

Safety Integrity and Performance

The Triconex 2755-020 meets SIL 3 certification for safety applications. It provides comprehensive fault detection for each output circuit. The module includes output state memory during communication loss. This feature maintains safe positions until the system restores communication. You can rely on this module for critical safety instrumented functions.
