Technical Specifications and Output Capabilities

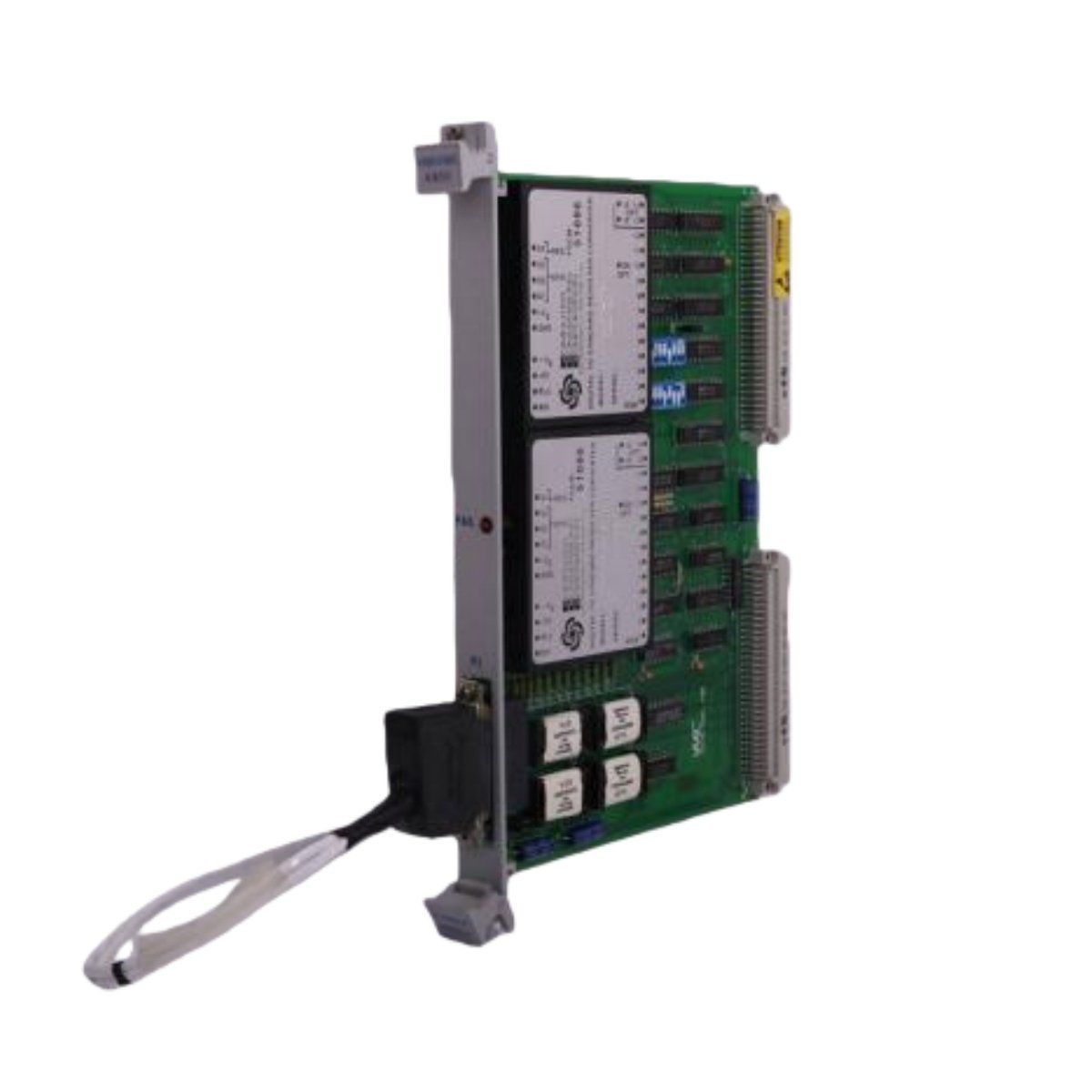

The Triconex 2750 output module forms a critical component within the Triconex Triple Modular Redundant (TMR) safety instrumented systems . This module employs a robust TMR architecture with three independent processors for continuous fault masking and high availability . It provides configurable output channels that support both analog and digital signals for versatile field device control . The module measures approximately 197 mm x 287 mm x 170 mm and weighs about 1.5 kg . It connects to the system via the Triconex backplane bus interface.

Functional Capabilities and TMR Architecture

The 2750 module’s TMR architecture ensures continuous operation even if one component experiences a failure . It processes complex safety functions while maintaining deterministic performance under varying plant conditions. The module supports C-language programming and configures through TriStation 1131 software . Its I/O capacity reaches up to 256 input points and 128 output points . The module also provides real-time monitoring, fault detection, and SOE recording with millisecond resolution .

Application Scenarios and Certifications

This output module suits demanding safety applications in oil and gas, chemical processing, power generation, and other high-risk industries . It integrates into emergency shutdown (ESD), fire and gas (F&G), and burner management systems (BMS) . The Triconex 2750 complies with IEC 61508 SIL3, CE, UL, and CSA standards . Many facilities rely on this module to maintain their Triconex-based safety instrumented systems .
