AI/TC Signal Interface for Triconex Safety Systems

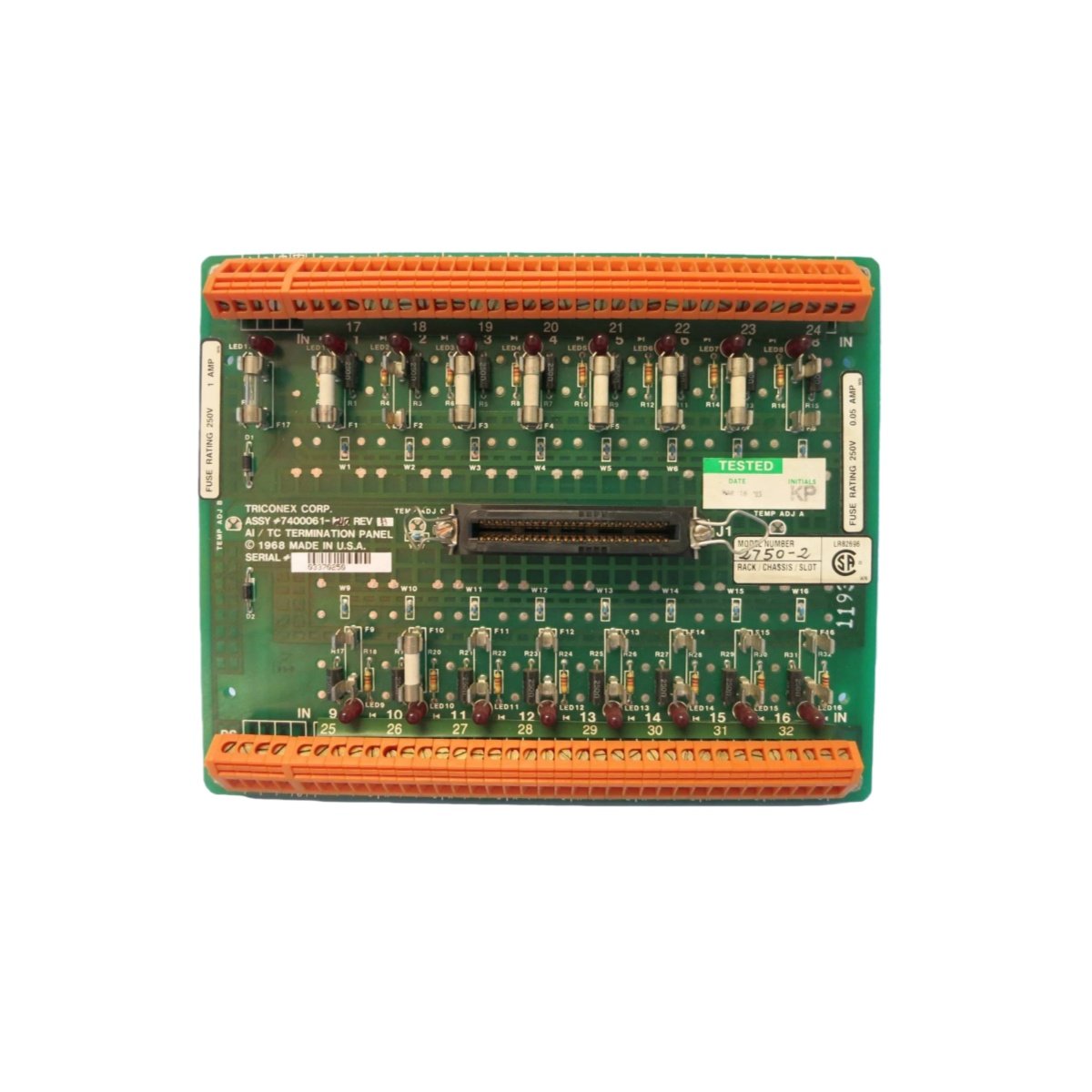

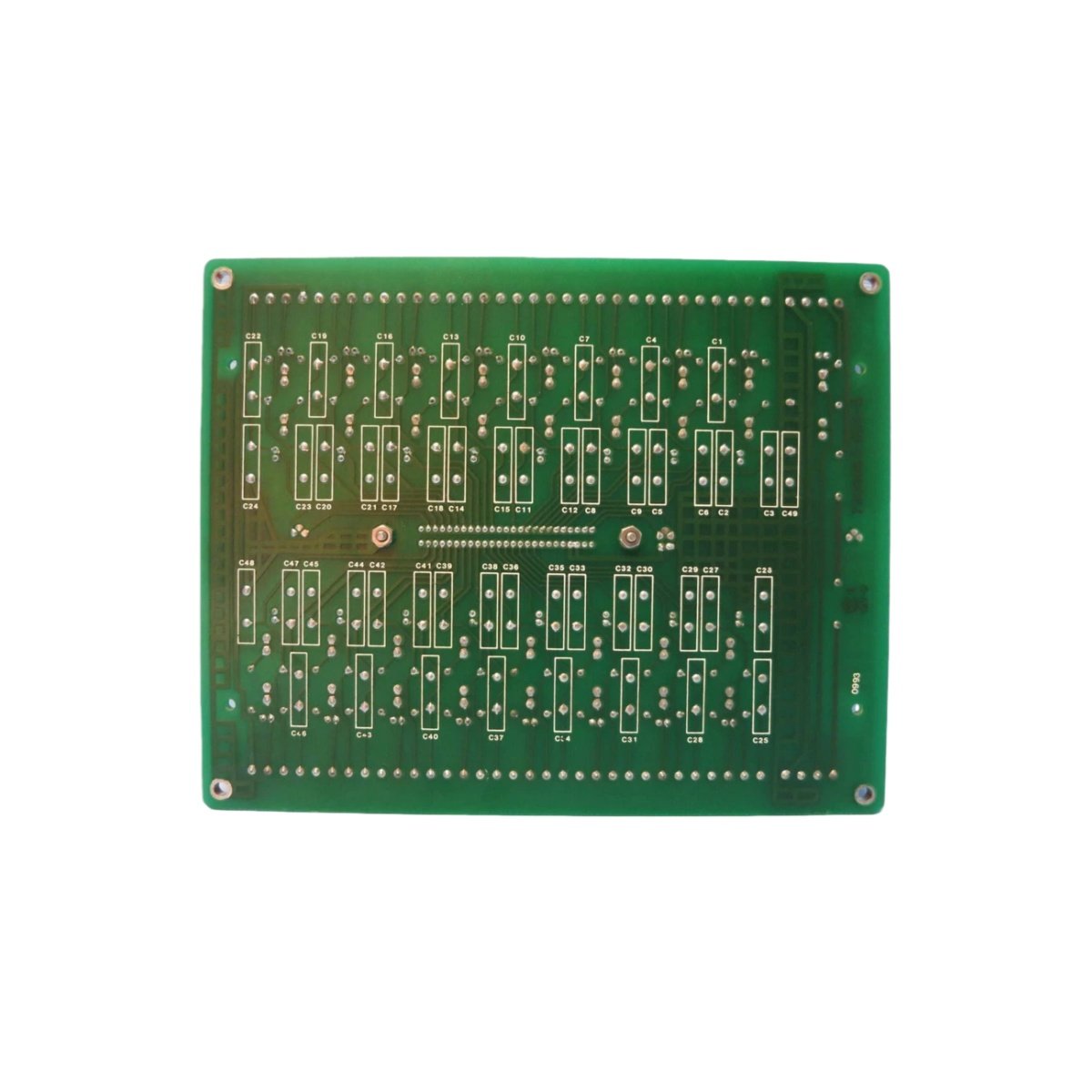

The 2750 termination panel, part number 7400061-210, provides a dedicated field wiring interface for analog input and thermocouple (AI/TC) signals within Triconex safety instrumented systems . This panel connects directly to the 2750-2 analog input modules, delivering organized, labeled termination points for multiple signal types . Consequently, it simplifies field wiring and maintains the signal integrity required for SIL 3-rated safety applications.

Technical Specifications

Signal Interface and Compatibility

The 7400061-210 termination panel supports a wide range of analog signals, including 4-20 mA current loops and 0-10 V voltage inputs, alongside multiple thermocouple types such as J, K, T, E, R, S, and B . This versatility makes it suitable for diverse process monitoring applications, from temperature sensing to pressure and flow measurement. The panel is engineered specifically for the 2750-2 analog input modules within the Triconex TMR (Triple Modular Redundant) architecture, ensuring full compliance with IEC 61508 safety standards .

Physical Characteristics and Installation

Weighing 1.4 kg and measuring 22.9 x 5.1 x 17.8 cm, this panel features a compact, space-saving design ideal for control cabinets . It supports both DIN rail and panel mounting configurations, providing flexibility for various cabinet layouts . The screw terminal blocks offer secure connections with built-in strain relief, while clear terminal labeling reduces wiring errors and accelerates commissioning . Furthermore, the panel’s industrial-grade construction operates reliably across a wide -40°C to +70°C temperature range, suitable for harsh environments .

Application Scenarios

This termination panel is extensively deployed across safety-critical industries requiring fail-safe process monitoring . In oil and gas, it handles temperature and pressure monitoring on offshore platforms and in refineries. In chemical processing, it supports reactor temperature control and hazardous area monitoring. Power generation facilities use it for turbine temperature sensing and boiler control, while pharmaceutical plants deploy it for clean room environmental monitoring and batch process control . Consequently, the 7400061-210 reinforces the reliability of Emergency Shutdown Systems (ESD) and Fire & Gas detection networks.
