Mixed-Signal Acquisition for Tricon Safety Systems

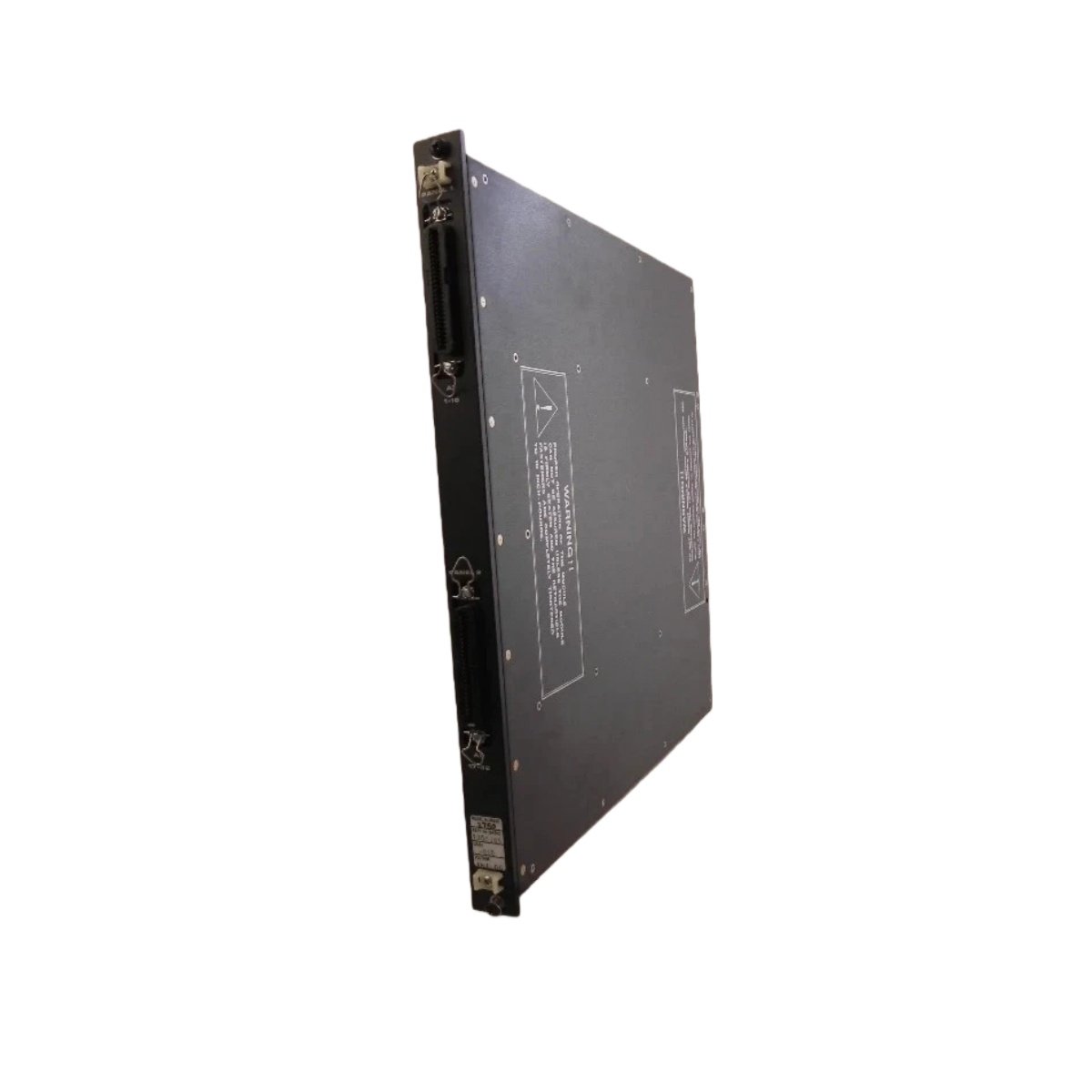

The Triconex 2750-010 analog digital input module acquires both analog and digital signals from field devices in Tricon safety instrumented systems . This module combines 8 analog channels and 16 digital channels in a single unit, saving valuable rack space . Safety-critical applications in oil and gas, chemical, and power generation rely on this module’s robust signal processing .

Input Specifications and Channel Configuration

The Triconex 2750-010 provides 8 analog input channels supporting 0-10V signals with 12-bit resolution . These analog inputs feature a 250 Ω impedance and deliver ±0.1% full-scale accuracy . Additionally, the module includes 16 digital input channels accepting 24 V DC signals . Each channel incorporates isolation of 1500V AC, protecting the system from electrical disturbances .

Signal Processing and Diagnostic Capabilities

The Triconex 2750-010 samples analog signals at rates up to 100 kHz for high-speed applications . The module includes self-test functions that verify its operation continuously . Built-in diagnostics detect and report signal issues, simplifying troubleshooting . Furthermore, the module provides channel-to-channel isolation, preventing noise from interfering with adjacent channels .

System Integration and Physical Design

You can install this module in standard Tricon chassis slots for seamless system integration . The module serves as a physical interface between field devices and the main control system . A rugged design ensures reliable operation in harsh industrial environments . The module meets IEC 61508 and SIL safety standards for mission-critical applications .

Application Guidelines and Compatibility

This input module is designed for Triconex Tricon safety instrumented systems . It works with various field sensors including temperature, pressure, and flow transmitters . Always verify signal ranges and wiring configurations before connecting field devices. The module operates reliably from 0°C to 60°C with proper cabinet ventilation .
