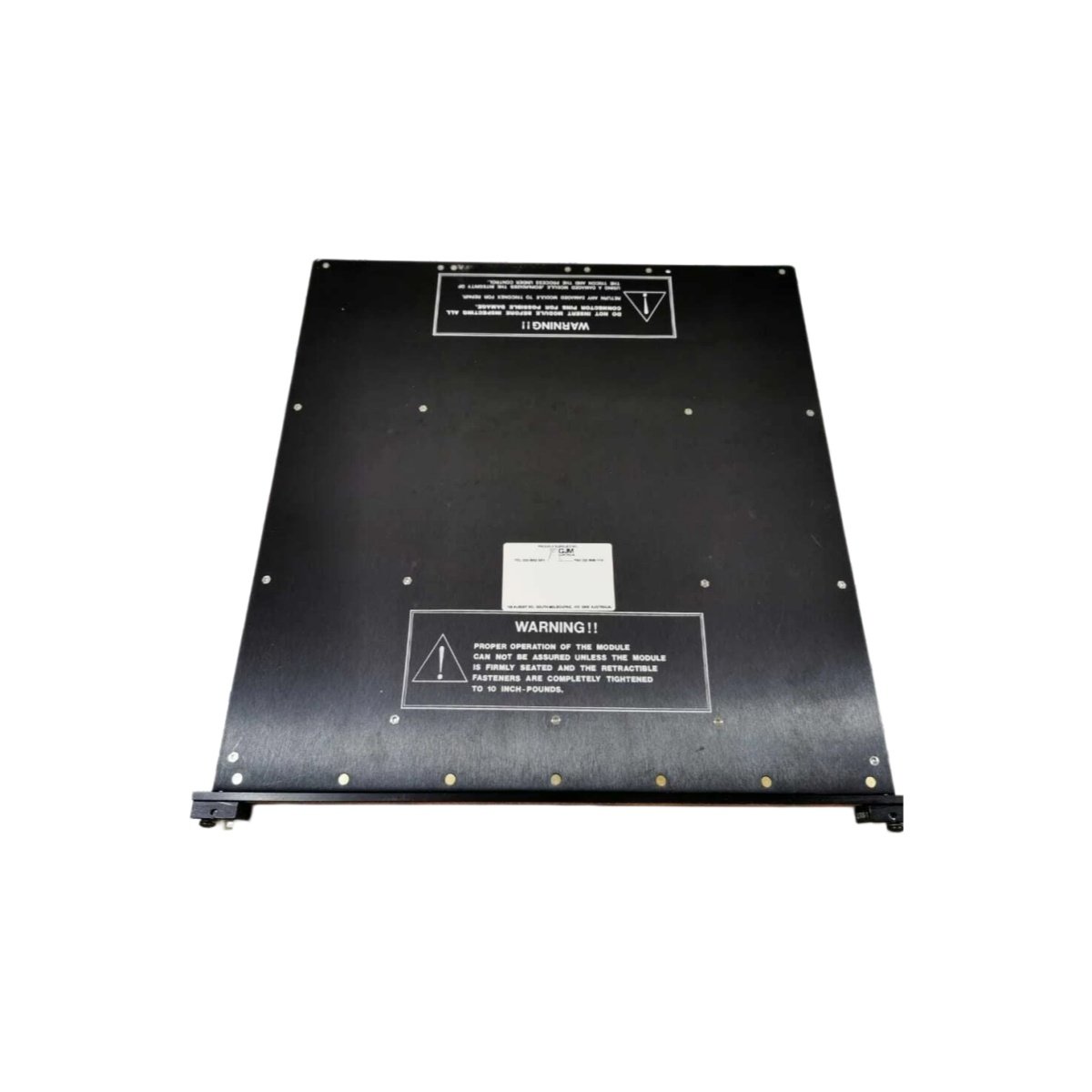

The Triconex 2700 executes critical logic for safety instrumented systems. This module serves as the primary controller within the Triconex TMR architecture. It manages up to 2,048 I/O points for large-scale applications. You will achieve deterministic control with high fault tolerance.
Physical Dimensions and Mounting Profile
This module uses a rugged chassis for standard rack mounting. Its physical dimensions are 310 mm in height, 70 mm in width, and 330 mm in depth. It weighs approximately 6.2 kilograms. The operating temperature ranges from 0°C to +60°C.
Processor Architecture and Performance
This module incorporates three independent microprocessors running in parallel. Each processor executes the same application program simultaneously. The Triconex 2700 performs 2-out-of-3 voting on all processed data. This ensures correct outputs even with one processor failure.
Memory Configuration and Data Retention
The module provides substantial memory for complex application requirements. It includes 4 MB of battery-backed SRAM for program storage. An additional 8 MB of flash memory stores firmware and configuration data.
Communication Interfaces
The Triconex 2700 offers multiple communication options for system integration. It features Ethernet ports for host and peer-to-peer communications. Serial ports support Modbus and other field protocols.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions (H × W × D) | 310 mm × 70 mm × 330 mm |
| Weight | Approx. 6.2 kg |
| I/O Capacity | Up to 2,048 points |
| SRAM | 4 MB |
| Flash Memory | 8 MB |
| Processor Count | 3 independent units |
| Voting Scheme | 2-out-of-3 |
Details
| Weight | 6.2 kg |
|---|---|
| Dimensions | 310 × 70 × 330 mm |
