High-Integrity Digital Input for Tricon TMR Systems

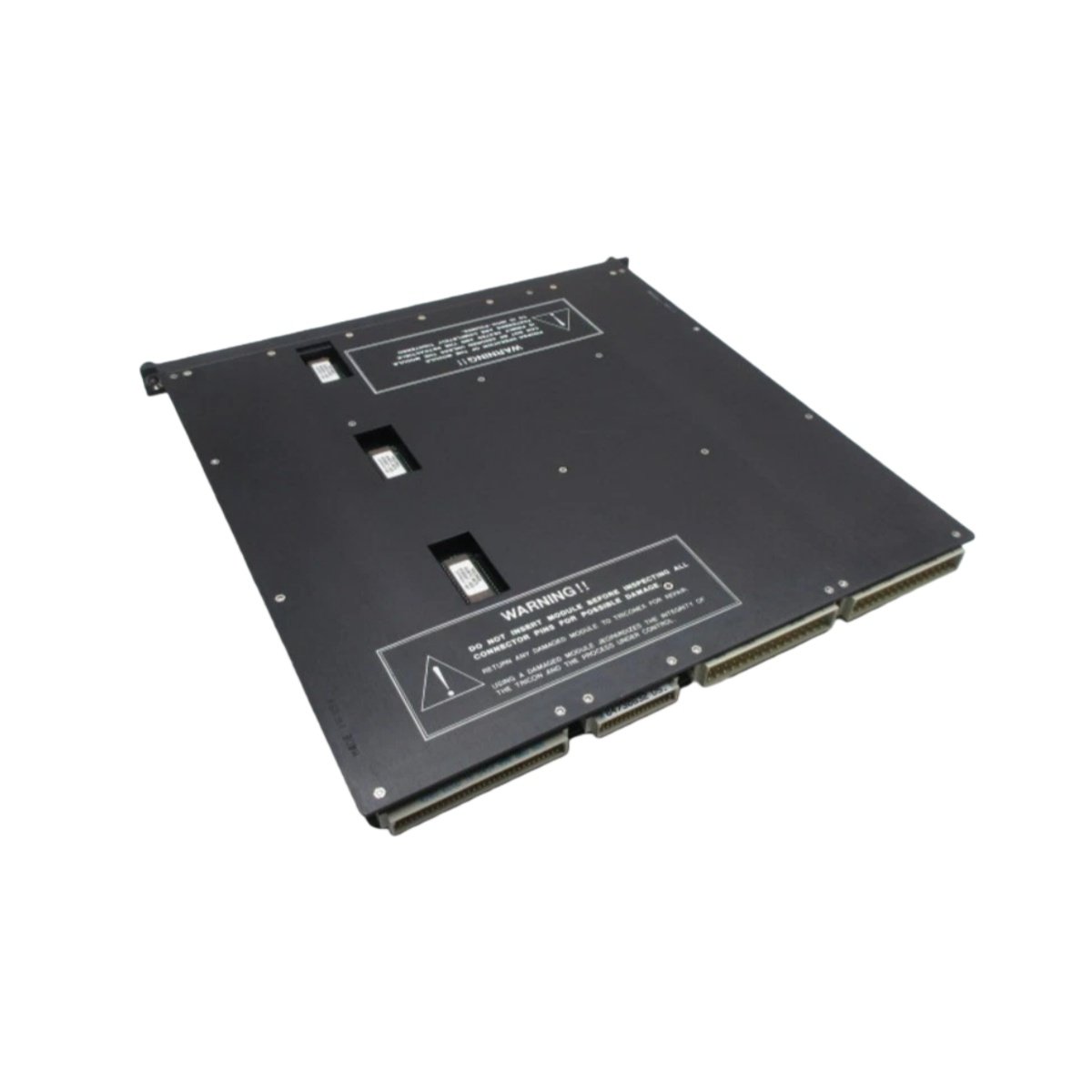

The 2660-63 digital input module serves as a reliable interface between field sensors and the Tricon Triple Modular Redundant (TMR) safety system. This module handles digital signals from switches, pushbuttons, and limit switches in critical safety applications . Its TMR architecture employs a two-out-of-three voting mechanism to ensure fail-safe operation . Consequently, this module plays a vital role in emergency shutdown and fire & gas detection systems.

Technical Specifications

Fault-Tolerant Architecture and Diagnostics

The 2660-63 module employs a dual-redundant architecture that continues operation even during component failure . The two-out-of-three (2oo3) voting mechanism ensures high availability without compromising safety . Built-in diagnostics continuously monitor each channel for open circuits and shorted field wiring. Additionally, front-panel LEDs provide instant visual feedback on channel status and module health . These features significantly reduce troubleshooting time during maintenance.

System Integration and Installation

This module mounts directly into the Tricon chassis, interfacing with the backplane through a standard connector. Users can hot-swap the 2660-63 while the system remains online . The module supports both analog and digital input types, offering flexibility for various field devices . Field wiring connects through a dedicated termination board, simplifying installation. This module integrates seamlessly with Tricon controllers and safety logic solvers.

Typical Applications

This digital input module excels in mission-critical safety applications. Common use cases include fire and gas detection, burner management, and emergency shutdown systems . It also serves in process safety applications in chemical plants and oil & gas refineries. Consequently, the 2660-63 represents an essential component for SIL 3-rated safety instrumented systems.
