Field Wiring Interface for Tricon Digital Output Modules

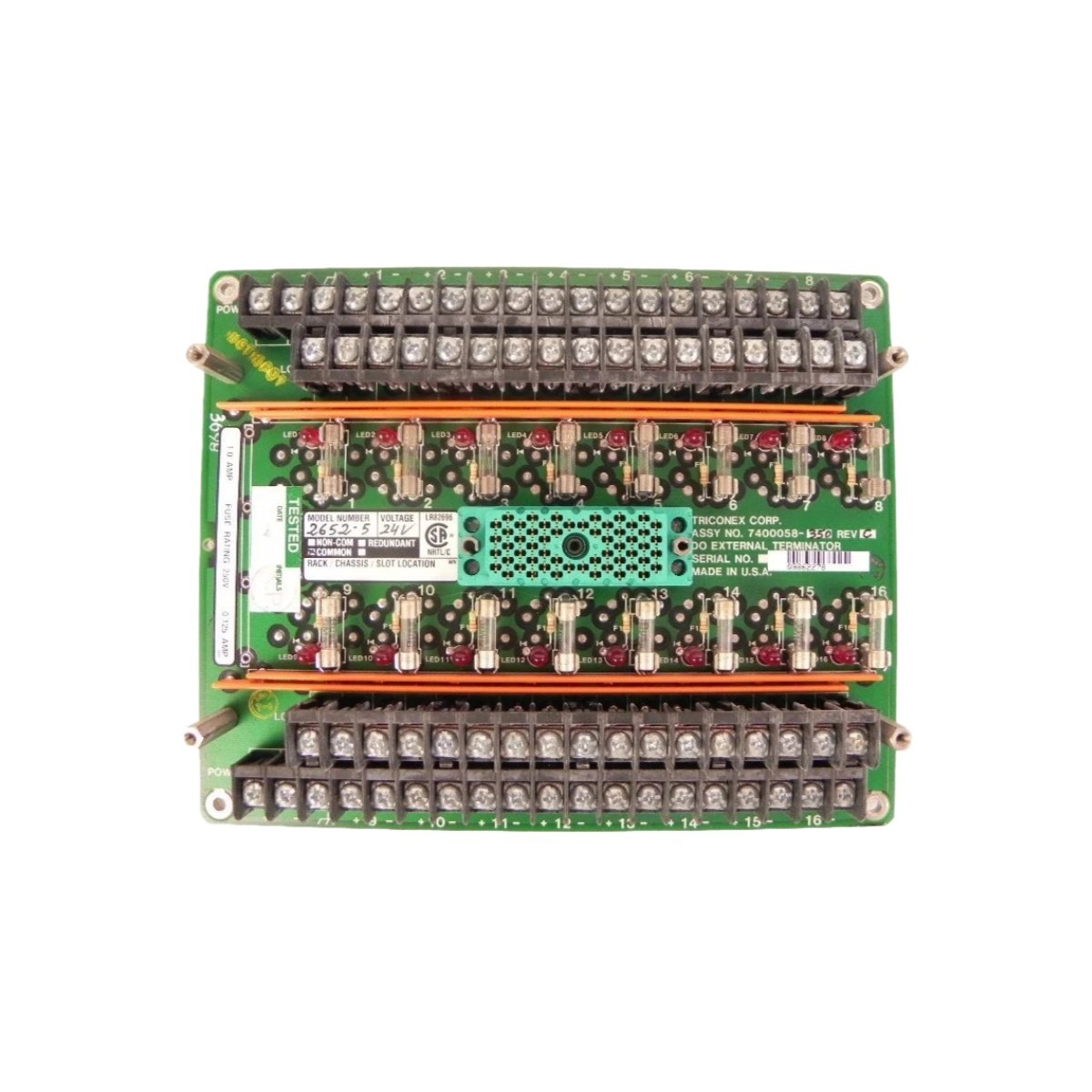

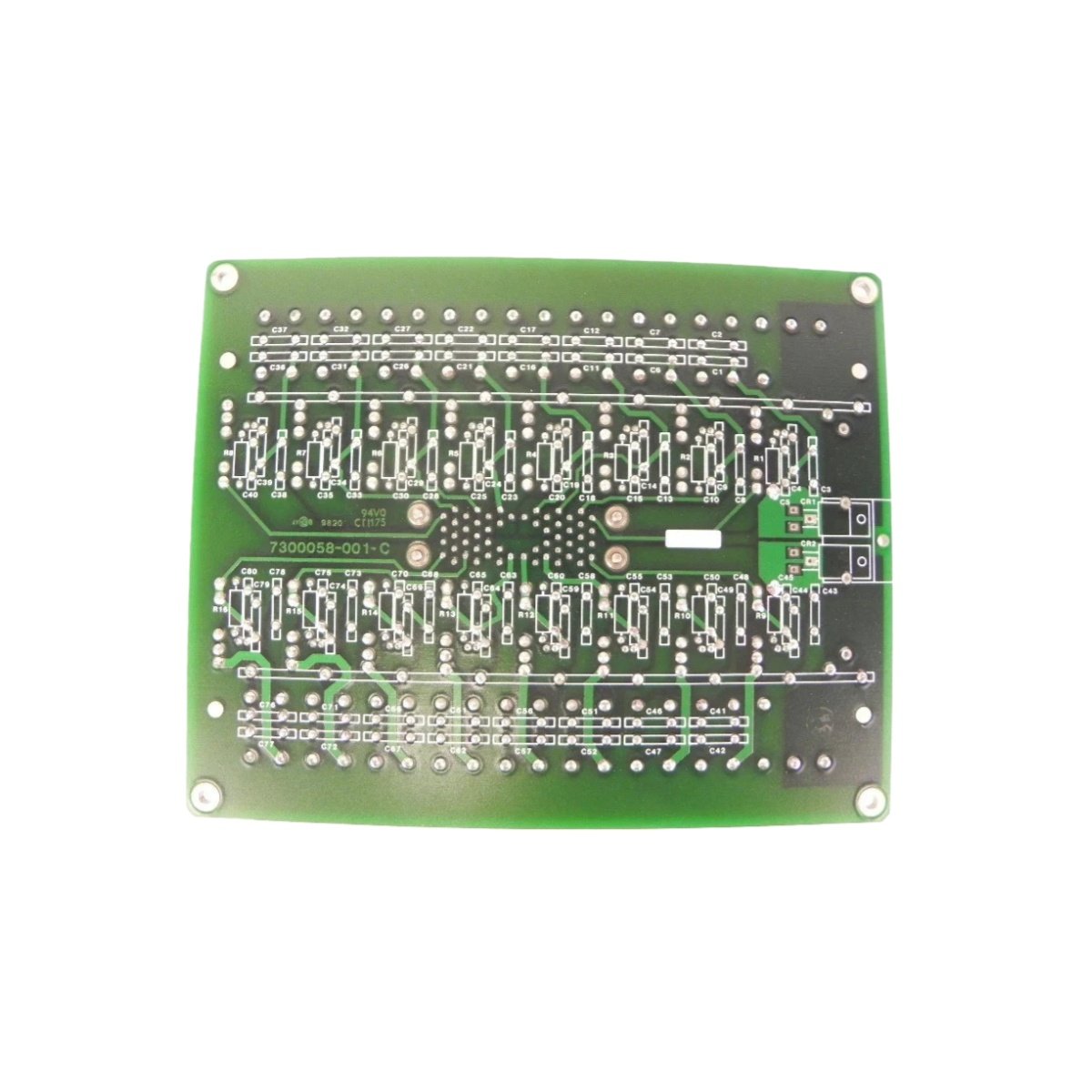

The Triconex 2652-5 7400058-350 terminal panel provides a secure and organized field wiring interface for Tricon TMR (Triple Modular Redundant) digital output modules. This panel eliminates the need for direct field wiring to the I/O module, simplifying installation and maintenance. It pairs with specific output modules to distribute control signals to valves, solenoids, and other actuating devices.

Technical Specifications

TMR-Compliant Design for Fault-Tolerant Operation

The Triconex 2652-5 7400058-350 terminal panel serves as the interconnection point between the Tricon TMR digital output module and field devices. It maintains signal integrity for the 2-out-of-3 voting architecture essential for safety applications. This design ensures that output commands reach actuators reliably, even under fault conditions.

Simplified System Integration

This terminal panel eliminates complex, direct wiring to the I/O module, enabling rapid module replacement without re-terminating field cables. The screw terminal blocks accommodate standard 14-22 AWG copper conductors for straightforward field connections. This modular approach significantly reduces installation time and maintenance downtime.

Application in Safety Instrumented Systems

The 2652-5 7400058-350 terminal board plays a crucial role in critical control loops. It operates effectively in demanding environments such as emergency shutdown (ESD) systems, fire and gas detection networks, and burner management systems. Its robust construction and SIL 3 compliance suit it for process safety applications requiring deterministic output signal routing.
