Field Wiring Interface for Tricon Safety Instrumented Systems

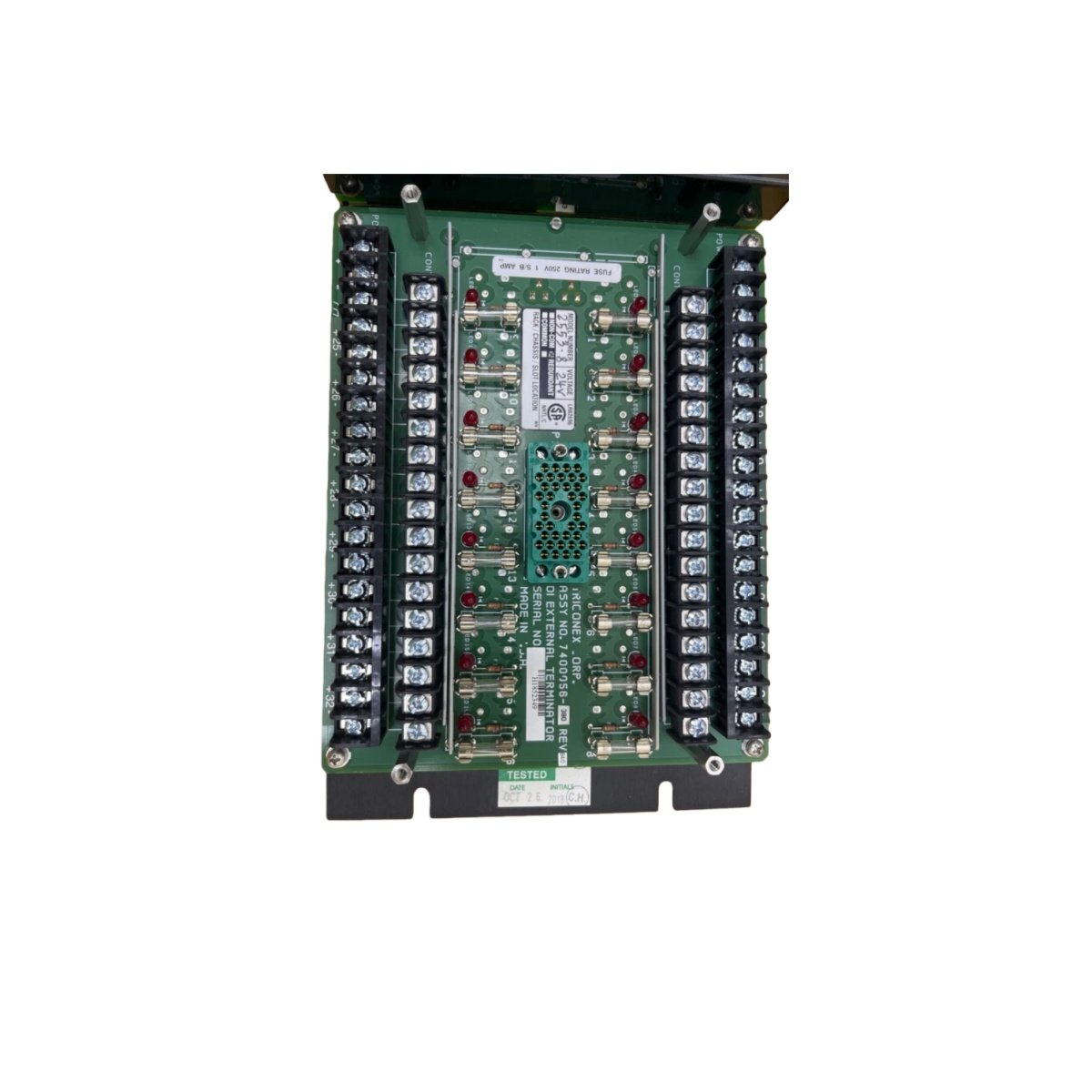

The 2553-8 terminal board (part number 7400056-380) provides a secure and organized field wiring interface for Triconex Tricon TMR (Triple Modular Redundant) safety systems. This critical component connects field devices such as sensors, switches, and actuators to the safety logic solver. It serves as the physical link between your plant’s field wiring and the Tricon I/O modules.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Part Number | 7400056-380 |
| Model | 2553-8 |
| Product Type | Termination Board / External Termination Panel (ETP) |
| Function | Field wiring interface for 2553-8 Digital Input Modules |
| Channel Capacity | 32 isolated input channels (typical) |
| Input Signal Types | Dry contact, wet contact, pulse |
| Input Voltage Range | 90–155 VAC/VDC |
| Input Current Range | 6–9 mA |
| Point Isolation | 1500–2500 VDC |
| Power Consumption | 2.9 W |
| Operating Temperature | –40°C to +85°C |
| Dimensions (L x W x H) | 173 × 117 × 48 mm |
| Weight | 0.4 kg |
| Mounting | DIN rail or panel mount |
| Safety Certification | SIL 3 rated (Triconex platform certified) |
TMR Architecture Support and Field Wiring
The 7400056-380 terminal board fully supports the Triple Modular Redundant architecture of Tricon systems. It ensures reliable signal transmission by providing robust point isolation between channels, effectively preventing interference and ground loops . This terminal board accommodates multiple field device types, including proximity switches, limit switches, and emergency stop buttons . Moreover, its screw terminal blocks simplify installation and maintenance.
Physical Characteristics and Installation
This terminal board features a compact and durable design, weighing just 0.4 kg with dimensions of 173 × 117 × 48 mm . It operates across an extreme temperature range of -40°C to +85°C, ensuring dependable performance even in harsh industrial environments . Users can mount the 2553-8 on a DIN rail or panel, offering flexibility for various control cabinet layouts . The clear terminal numbering and integrated strain relief reduce installation errors and accelerate commissioning .
Application and System Integration
This terminal board is specifically designed for safety-critical environments such as oil & gas processing, chemical manufacturing, and power generation . It seamlessly integrates with the Triconex Tricon chassis and associated I/O modules, providing the foundation for applications including Emergency Shutdown Systems (ESD) and Fire & Gas detection networks . The 7400056-380 terminal board is a crucial component for maintaining signal integrity and ensuring the fault tolerance required by SIL 3 safety systems.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
