Field Signal Marshalling for Tricon Safety Systems

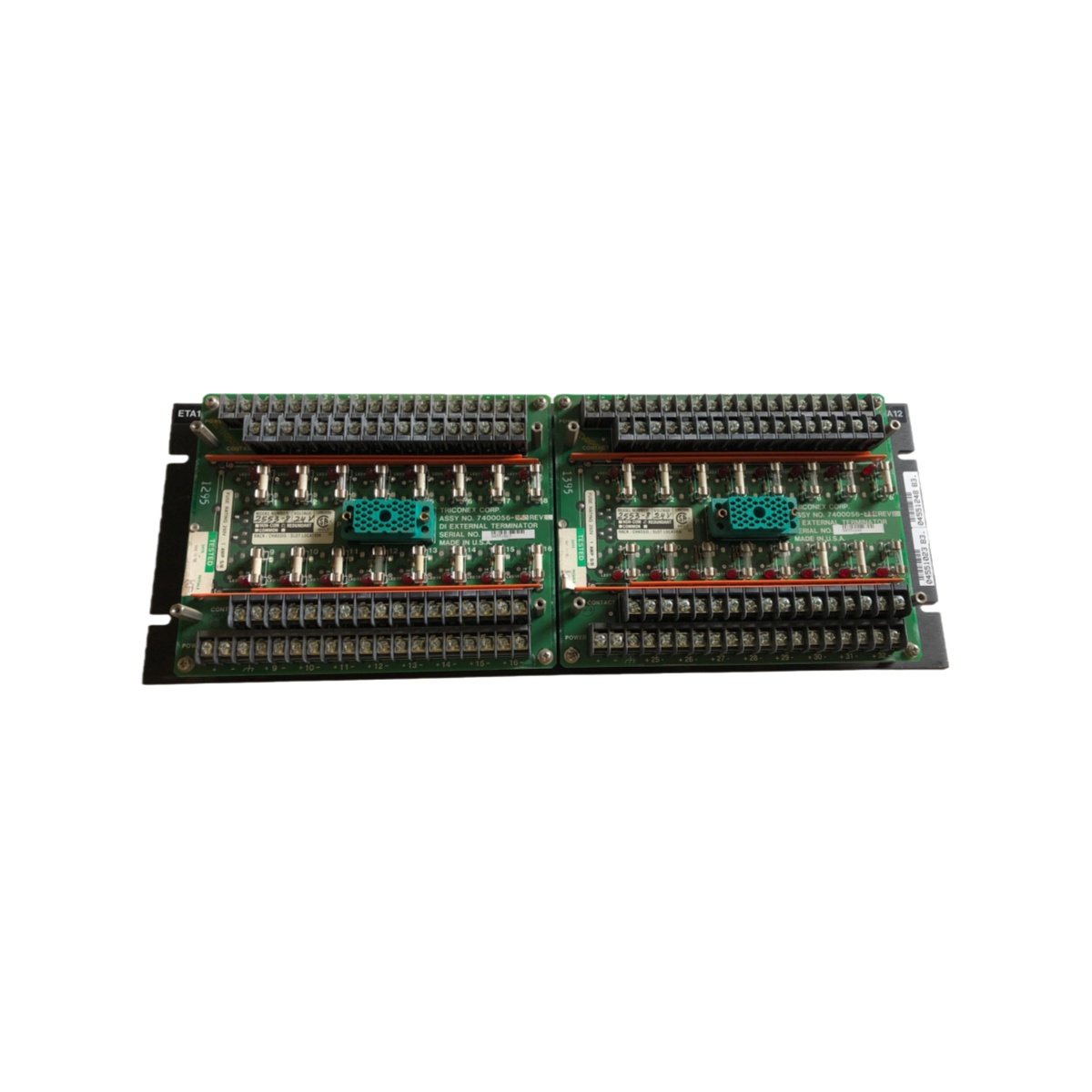

The Triconex 2553 7400056-380 terminal board provides a secure and organized interface for field device wiring in Tricon safety instrumented systems. This board serves as a marshalling panel, consolidating signals from the field before they route to the main I/O termination boards. Critical safety loops benefit from this structured approach to signal distribution and testing.

Technical Specifications and Channel Configuration

This terminal board offers 32 termination points, primarily supporting digital input signals from field devices . The board employs screw-type terminals that accept wires from 14 to 22 AWG (0.5 to 2.5 mm²), ensuring robust and reliable connections . It operates on a nominal 24 V DC signal voltage and supports the Triple Modular Redundant (TMR) architecture, which is fundamental to Triconex safety systems . The board features electrical isolation between terminals of at least 500 V AC, protecting the control system from field-side interference .

Connection and System Integration

The Triconex 2553 7400056-380 terminal board simplifies cabinet wiring by providing clearly numbered termination points. This design accelerates commissioning and reduces the risk of installation errors . You connect field devices—such as proximity switches, limit switches, and emergency stop buttons—directly to this board . The board then interfaces with the Tricon controller via the 2553-8 digital input module, which connects to the main chassis through a separate cable .

Applications in Safety-Critical Industries

You will find this terminal board deployed across various safety-critical industries, including oil and gas, chemical processing, and power generation . Its robust design and SIL 3 compliance make it ideal for emergency shutdown systems and fire and gas detection networks . For installations in harsh environments, the board remains reliable across a wide temperature range from -40°C to +70°C .
