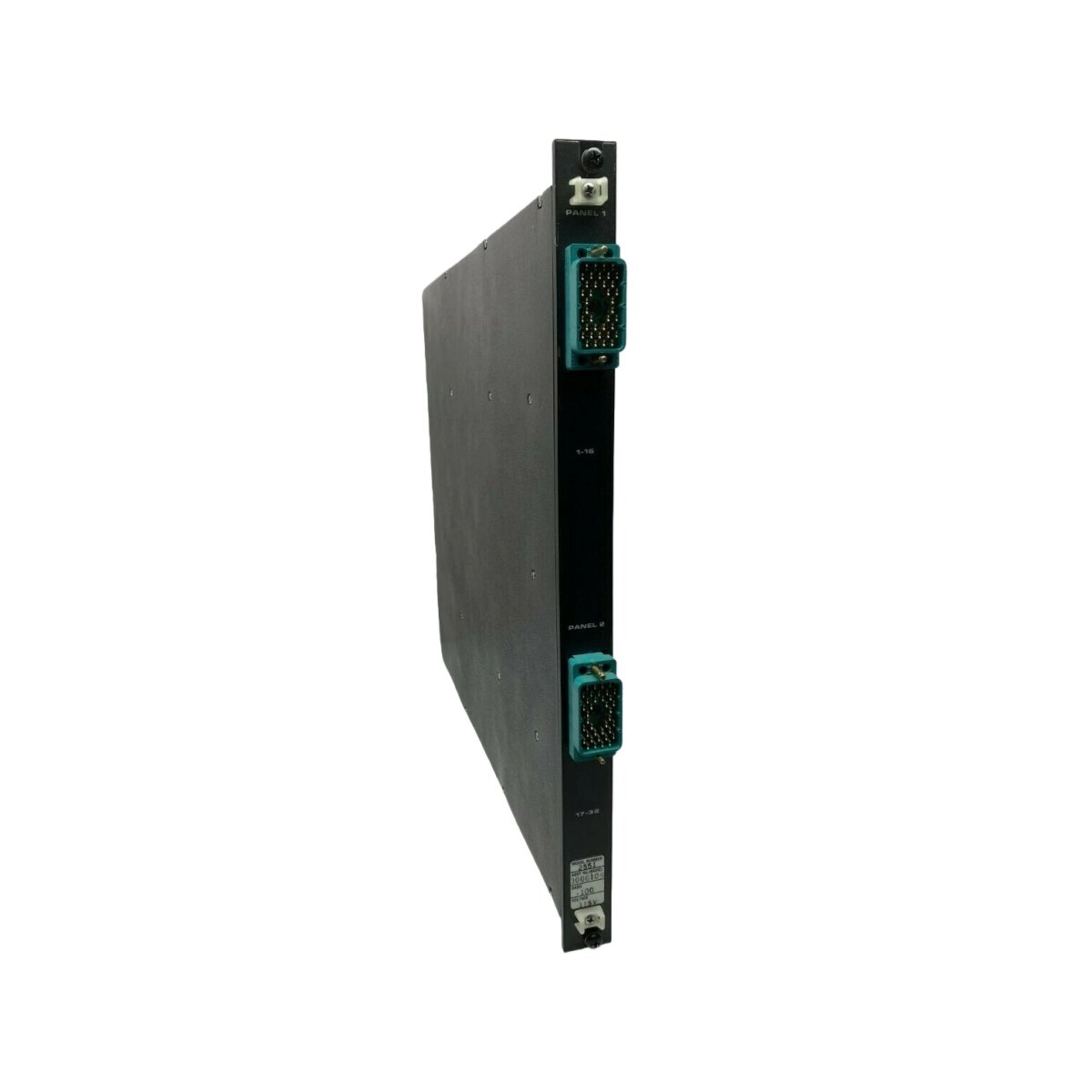

The Triconex 2551 is a high-reliability analog input module designed for the Triconex Triple Modular Redundancy (TMR) system . This module converts 16 analog field signals into digital values for safety-critical logic processing . It accepts both voltage inputs from -10V to +10V and current inputs from 0-20mA . Moreover, the module achieves 12-bit resolution with ±0.25% full-scale accuracy . The Triconex 2551 ensures stable and repeatable signal conversion in demanding process control environments .

Fault-Tolerant TMR Architecture

This module operates within the Triconex TMR architecture to ensure exceptional system availability . Therefore, the Triconex 2551 maintains continuous measurement functionality despite internal component failures . The module supports full hardware redundancy for mission-critical applications . Additionally, it meets IEC 61508 SIL 3 certification for safety-related functions .

Built-In Diagnostics and Self-Testing

The Triconex 2551 incorporates comprehensive self-diagnostics to ensure reliable measurement integrity . Its internal circuitry continuously monitors each channel for out-of-range conditions and signal degradation . The module performs automatic calibration checks to maintain measurement precision over its service life . Furthermore, it includes fault detection features that immediately report abnormal conditions to the system controller .

Technical Specifications

Environmental Durability and Heat Management

The Triconex 2551 features a rugged aluminum housing that effectively dissipates generated heat . This passive cooling design eliminates the need for external fans or additional components . The module withstands vibration and shock typical of heavy industrial facilities . Its conformal coating protects internal electronics from moisture and airborne contaminants .

System Integration and Termination

This analog input module integrates seamlessly with the Triconex TMR system and field termination panels . The Triconex 2551 interfaces with standard termination assemblies for simplified wiring . Users can select different termination options to match specific field device requirements . The module’s keyed connector prevents incorrect installation and ensures reliable electrical contact .

Applications and Industries

The Triconex 2551 serves critical roles in oil and gas, chemical, and power generation facilities . It accurately monitors pressure, temperature, flow, and level transmitters in safety instrumented functions . Furthermore, the module supports both legacy and modern Triconex system configurations .
